Produkt Details
SKU
404710
Name

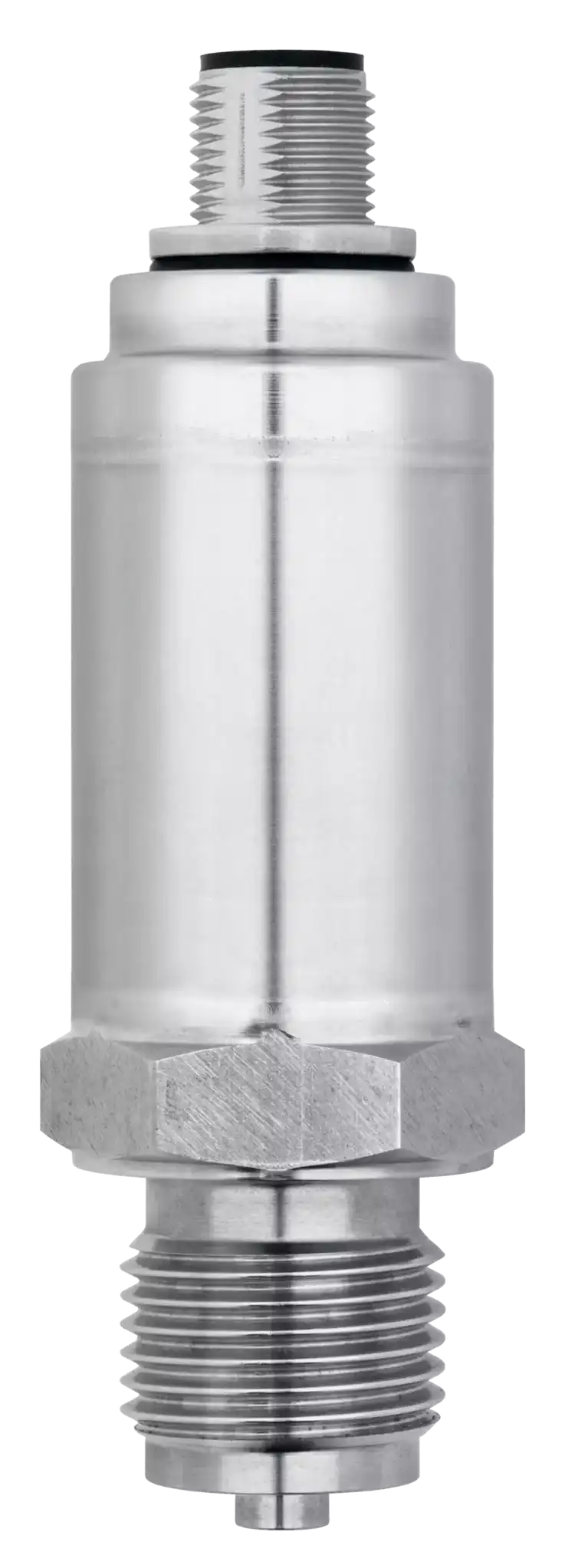

JUMO MIDAS S21 Ex
Description
The product measures the relative and absolute pressure of gases, steam, and liquids on the basis of the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.
Short Description
Pressure transmitter for use in Ex areas
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MjMwMTY2IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgc3lzdGVtIiwidmFsdWUiOiJTaWxpY29uIHNlbnNvciB3aXRoIHN0YWlubGVzcyBzdGVlbCBzZXBhcmF0aW5nIG1lbWJyYW5lIiwic29ydE5vIjowfSx7Im5hbWUiOiJJbnB1dCIsInZhbHVlIjoiMC4yNSB0byAxMDAgYmFyIHJlbGF0aXZlOyAwLjYgdG8gMjUgYmFyIGFic29sdXRlIiwic29ydE5vIjoxfSx7Im5hbWUiOiJPdXRwdXQiLCJ2YWx1ZSI6IjTCoHRvwqAyMMKgbUEsIHR3by13aXJlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii00MCB0byArODUgwrBDIiwic29ydE5vIjozfSx7Im5hbWUiOiJBY2N1cmFjeSAobGluZWFyaXR5KSIsInZhbHVlIjoiMC4zwqAlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkFsbCBzY3JldyBjb25uZWN0aW9ucyB0aGF0IGFyZSBzdGFuZGFyZCBpbiB0aGUgaW5kdXN0cnkiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiRXggKEFURVgpLCBETlYsIEgycmVhZHkiLCJzb3J0Tm8iOjZ9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXdyYW5jaCIsImRlc2NyaXB0aW9uIjoiTWluaW1hbCBpbnN0YWxsYXRpb24gZWZmb3J0IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IkFURVggYXBwcm92YWwiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXN1Y2Nlc3MiLCJkZXNjcmlwdGlvbiI6IlJldmVyc2UtcG9sYXJpdHkgcHJvdGVjdGlvbiIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2VzOiB1cCB0byAxMDAgYmFyIiwic29ydE5vIjowfSx7InRleHQiOiJQcm9jZXNzIHRlbXBlcmF0dXJlOiAtNDAgdG8gODUgwrBDIiwic29ydE5vIjoxfSx7InRleHQiOiJDb3N0LWVmZmVjdGl2ZSBzb2x1dGlvbiB3aXRoIEV4IGkiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-wranch
Description
Minimal installation effort
Icon
icon-shield
Description
ATEX approval
Icon
icon-success
Description
Reverse-polarity protection
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=230166
Measuring system
Silicon sensor with stainless steel separating membrane
Input
0.25 to 100 bar relative; 0.6 to 25 bar absolute
Output
4 to 20 mA, two-wire
Medium temperature
-40 to +85 °C
Accuracy (linearity)
0.3 %
Process connection
All screw connections that are standard in the industry
Approvals
Ex (ATEX), DNV, H2ready
