Overview
title
Produkt Details
SKU
705001
Name

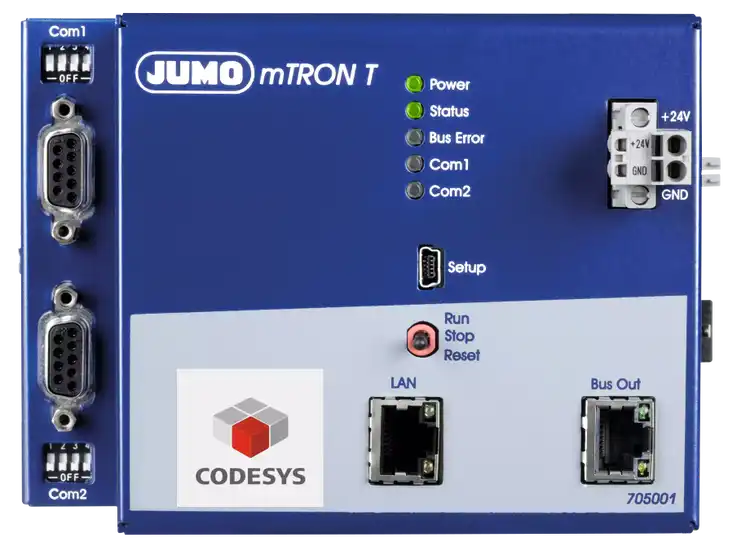

JUMO mTRON T
Description
The central processing unit contains the process map of the application and manages the configuration and parameter data of the overall system. 9 program generators and extensive limit value monitoring functions are available for individual control tasks.
Short Description
Central processing unit
Availability
In Stock
Images
State
TOP_SELLER
Variants
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM2OTgiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6IkludGVyZmFjZXMiLCJ2YWx1ZSI6IlVTQiBkZXZpY2UsIEV0aGVybmV0IHdpdGggaW50ZWdyYXRlZCB3ZWIgc2VydmVyLCBSSjQ1IHN5c3RlbSBidXMgKEJ1cyBPdXQpLCAyIGZpZWxkYnVzZXMgKG9wdGlvbmFsKSIsInNvcnRObyI6MH0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiUHJvY2VzcyBtYXBwaW5nIGZvciB1cCB0byAzMCBpbnB1dCBhbmQgb3V0cHV0IG1vZHVsZXMsIGludGVncmF0ZWQgd2ViIHNlcnZlciwgNjQgbGltaXQgdmFsdWUgbW9uaXRvcmluZyBmdW5jdGlvbnMsIFBMQyBhY2NvcmRpbmcgdG8gSUVDIDYxMTMxLTMgKENPREVTWVMgVjMuNSksIE9QQyBzZXJ2ZXIgKE9QQy1EQSwgaW4gY29ubmVjdGlvbiB3aXRoIFBMQyBDT0RFU1lTIFYzLjUpLCA5IHByb2dyYW0gZ2VuZXJhdG9ycywgbWF0aCBhbmQgbG9naWMgbW9kdWxlLCBQbHVnIGFuZCBQbGF5IHdoZW4gcmVwbGFjaW5nIHRoZSBpbnB1dCBhbmQgb3V0cHV0IG1vZHVsZXMsIGJhdHRlcnktYnVmZmVyZWQgUkFNLCByZWFsLXRpbWUgY2xvY2ssIHN1cHBseSBvZiBvcGVyYXRpbmcgdm9sdGFnZSwgZmFzdCB3aXJpbmcgb2Ygb3BlcmF0aW5nIHZvbHRhZ2UgYW5kIHN5c3RlbSBidXMgYnkgc2ltcGx5IHBsdWdnaW5nIHRvZ2V0aGVyIHRoZSBtb2R1bGVzIiwic29ydE5vIjoxfSx7Im5hbWUiOiJIb3VzaW5nIiwidmFsdWUiOiJSb2J1c3QgbWV0YWwgY2FzZSBmb3IgRElOLXJhaWwgbW91bnRpbmcgaW4gdGhlIGNvbnRyb2wgY2FiaW5ldCIsInNvcnRObyI6Mn0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJVTCwgRE5WIEdMIiwic29ydE5vIjozfSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMjDCoHRvwqArNTXCoMKwQyIsInNvcnRObyI6NH0seyJuYW1lIjoiRGltZW5zaW9ucyAoV+KAr8OX4oCvSOKAr8OX4oCvRCkiLCJ2YWx1ZSI6IjEzNcKgbW3CoMOXwqAxMDHCoG1twqDDl8KgNjcuMcKgbW0gKHdpdGhvdXQgY29ubmVjdGlvbiBlbGVtZW50cykiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVAyMCwgYWNjb3JkaW5nIHRvIERJTsKgRU7CoDYwNTI5Iiwic29ydE5vIjo2fSx7Im5hbWUiOiJDdXJyZW50IGNvbnN1bXB0aW9uIiwidmFsdWUiOiJNYXguIDM1MCBtQSAoYXQgREMgMTkuMsKgVikgY3VycmVudCBjb25zdW1wdGlvbiBvZiBtb2R1bGVzIGluc3RhbGxlZCBpbiByb3dzIiwic29ydE5vIjo3fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1mbG93LXRyZWUiLCJkZXNjcmlwdGlvbiI6IlByb2Nlc3MgbWFwcGluZyBmb3IgMzAgaW5wdXQgYW5kIG91dHB1dCBtb2R1bGVzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1rZXlib2FyZCIsImRlc2NyaXB0aW9uIjoiU29mdHdhcmUgZm9yIGZhc3Qgc3RhcnR1cCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2xvdWQiLCJkZXNjcmlwdGlvbiI6IkFjY2VzcyB0byBwcm9jZXNzIHZhbHVlcyB2aWEgd2ViIHNlcnZlciIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiI5IHByb2dyYW0gZ2VuZXJhdG9ycyIsInNvcnRObyI6MH0seyJ0ZXh0IjoiT1BDIHNlcnZlciAoQ09ERVNZUyBWMy41KSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiUExDIGFjY29yZGluZyB0byBJRUMgNjExMzEtMyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-flow-tree
Description
Process mapping for 30 input and output modules
Icon
icon-keyboard
Description
Software for fast startup
Icon
icon-cloud
Description
Access to process values via web server
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=13698
Interfaces
USB device, Ethernet with integrated web server, RJ45 system bus (Bus Out), 2 fieldbuses (optional)
Special features
Process mapping for up to 30 input and output modules, integrated web server, 64 limit value monitoring functions, PLC according to IEC 61131-3 (CODESYS V3.5), OPC server (OPC-DA, in connection with PLC CODESYS V3.5), 9 program generators, math and logic module, Plug and Play when replacing the input and output modules, battery-buffered RAM, real-time clock, supply of operating voltage, fast wiring of operating voltage and system bus by simply plugging together the modules
Housing
Robust metal case for DIN-rail mounting in the control cabinet
Approvals
UL, DNV GL
Ambient temperature
-20 to +55 °C
Dimensions (W × H × D)
135 mm × 101 mm × 67.1 mm (without connection elements)
Protection type
IP20, according to DIN EN 60529
Current consumption
Max. 350 mA (at DC 19.2 V) current consumption of modules installed in rows
