Produkt Details
SKU
707060
Name

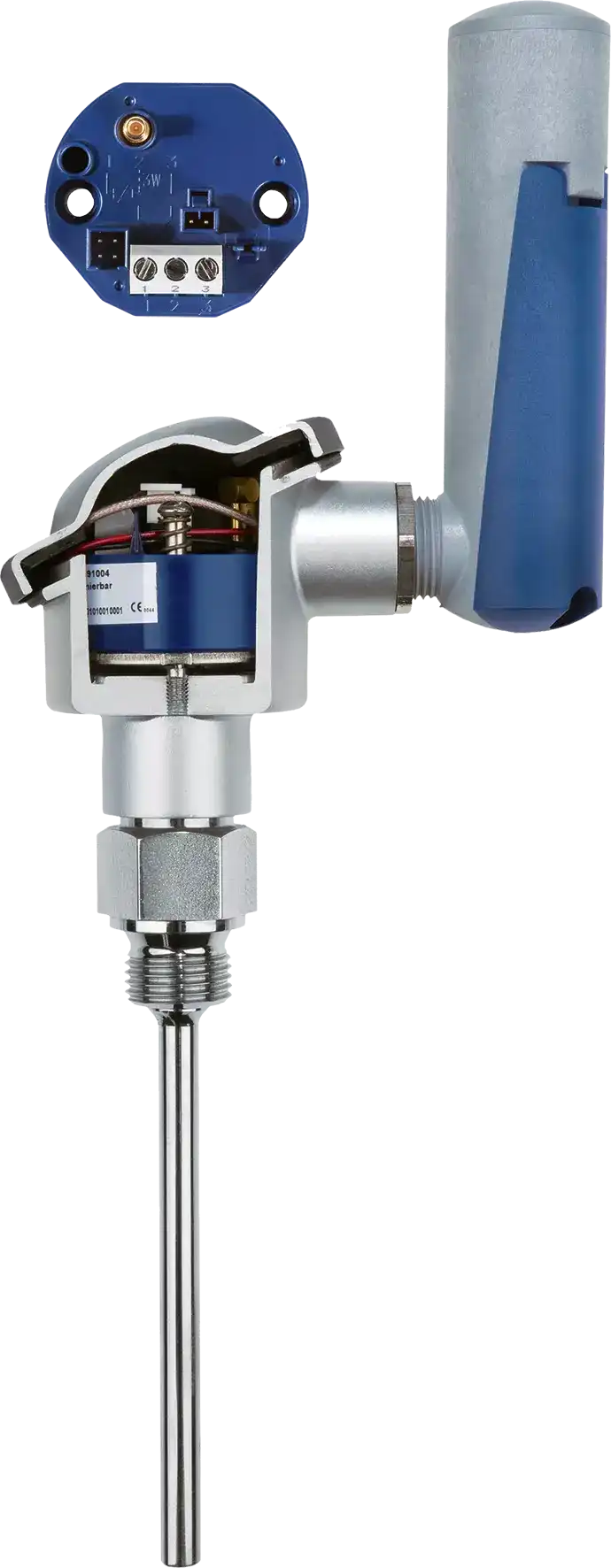

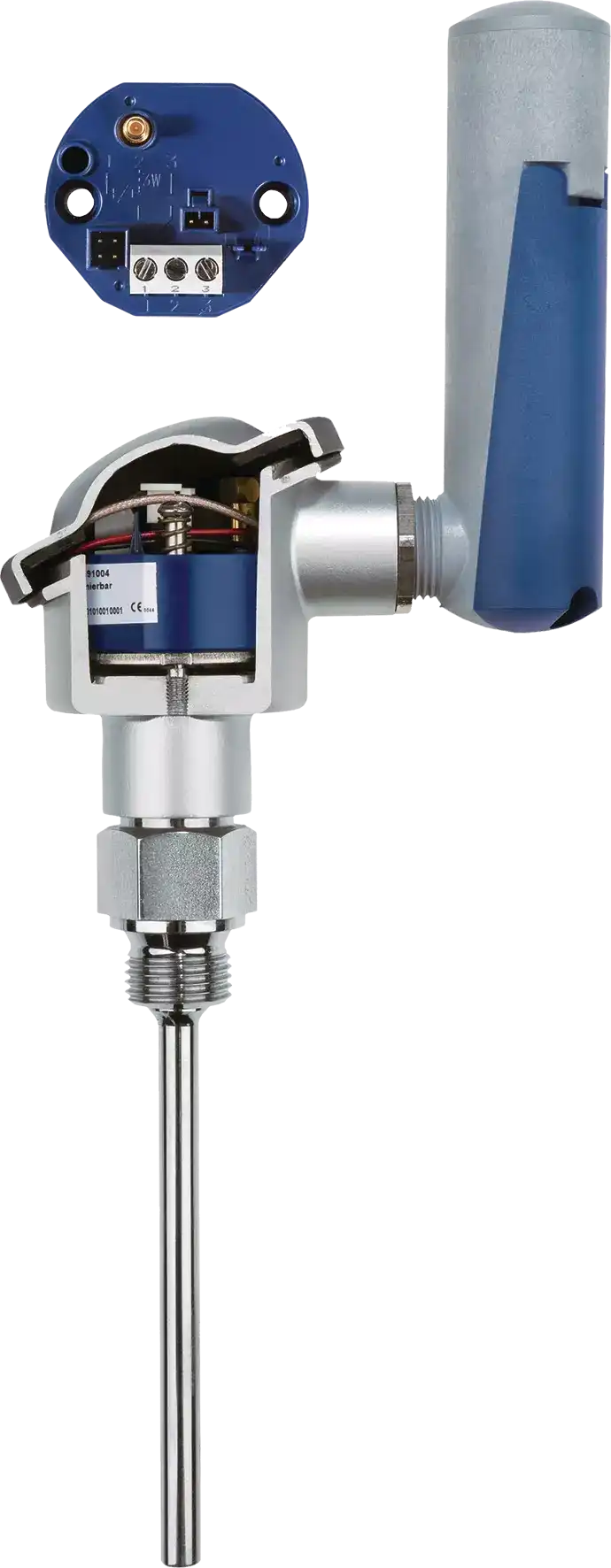

JUMO Wtrans B
Description
The wireless transmitter measures temperature and other process variables. The compact design type of the aerial battery housing allows for simple installation on type B DIN terminal head.
Short Description
Head transmitter with wireless data transmission
Price
€379.23
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9ODI5MCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiR2FsdmFuaWMgaXNvbGF0aW9uIiwidmFsdWUiOiI+IDEwwqBrViIsInNvcnRObyI6MH0seyJuYW1lIjoiSW5zdGFsbGF0aW9uIiwidmFsdWUiOiJJbiB0ZXJtaW5hbCBoZWFkLCB0eXBlIEIiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IklucHV0IiwidmFsdWUiOiJQdDEwMCwgUHQ1MDAsIFB0MTAwMCwgcmVzaXN0YW5jZSB0cmFuc21pdHRlciwgcmVzaXN0YW5jZS9wb3RlbnRpb21ldGVyICh0d28td2lyZSwgdGhyZWUtd2lyZSwgZm91ci13aXJlIGNpcmN1aXQpLCBSLCBTLCBCLCBKLCBULCBFLCBLLCBOLCBMLCBVLCBBMSwgQywgRCwgMCB0byA1MMKgbVYsIDAoNCkgdG8gMjDCoG1BICh2aWEgZXh0ZXJuYWwgc2h1bnQpIiwic29ydE5vIjoyfSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMzAgdG8gKzg1wqDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik91dHB1dCIsInZhbHVlIjoiV2lyZWxlc3MtYmFzZWQgd2l0aCBvcGVuIGFpciByYW5nZSBvZiB1cCB0byAzMDDCoG0gKHRyYW5zbWlzc2lvbiBmcmVxdWVuY3kgODY4LjTCoE1IeikiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IlRyYW5zbWlzc2lvbiBpbnRlcnZhbCBvZiAxIHRvIDM2MDDCoHMsIGN1c3RvbWVyLXNwZWNpZmljIGxpbmVhcml6YXRpb24iLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkNhbGlicmF0aW9uIGFjY3VyYWN5IiwidmFsdWUiOiLCsSAwLjHCoCUiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6Ik5BTVVSIGNvbXBsaWFudCIsInZhbHVlIjoiTkUyMSIsInNvcnRObyI6N30seyJuYW1lIjoiQ29uZmlndXJhdGlvbiIsInZhbHVlIjoiVmlhIFBDIGludGVyZmFjZSIsInNvcnRObyI6OH0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IjMuNsKgViBMaSBiYXR0ZXJ5IChiYXR0ZXJ5IHNpemUgQUEpIiwic29ydE5vIjo5fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1rZXlib2FyZCIsImRlc2NyaXB0aW9uIjoiVXNlciBjb25maWd1cmFibGUgUEMgc2V0dXAgcHJvZ3JhbSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tcm91dGVyIiwiZGVzY3JpcHRpb24iOiJTdGF0aW9uYXJ5IGFuZCBtb2JpbGUgbWVhc3VyZW1lbnRzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaWduYWwtYWx0IiwiZGVzY3JpcHRpb24iOiJGYWlsLXNhZmUgdHJhbnNtaXNzaW9uIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IlJhZGlvIGZyZXF1ZW5jeSA4NjguNMKgTUh6Iiwic29ydE5vIjowfSx7InRleHQiOiJUcmFuc21pc3Npb24gaW50ZXJ2YWwgKDEgdG8gMzYwMMKgcykiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlJhbmdlIHVwIHRvIDMwMMKgbSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-keyboard
Description
User configurable PC setup program
Icon
icon-router
Description
Stationary and mobile measurements
Icon
icon-signal-alt
Description
Fail-safe transmission
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=8290
Galvanic isolation
> 10 kV
Installation
In terminal head, type B
Input
Pt100, Pt500, Pt1000, resistance transmitter, resistance/potentiometer (two-wire, three-wire, four-wire circuit), R, S, B, J, T, E, K, N, L, U, A1, C, D, 0 to 50 mV, 0(4) to 20 mA (via external shunt)
Ambient temperature
-30 to +85 °C
Output
Wireless-based with open air range of up to 300 m (transmission frequency 868.4 MHz)
Special features
Transmission interval of 1 to 3600 s, customer-specific linearization
Calibration accuracy
± 0.1 %
NAMUR compliant
NE21
Configuration
Via PC interface
Voltage supply
3.6 V Li battery (battery size AA)
