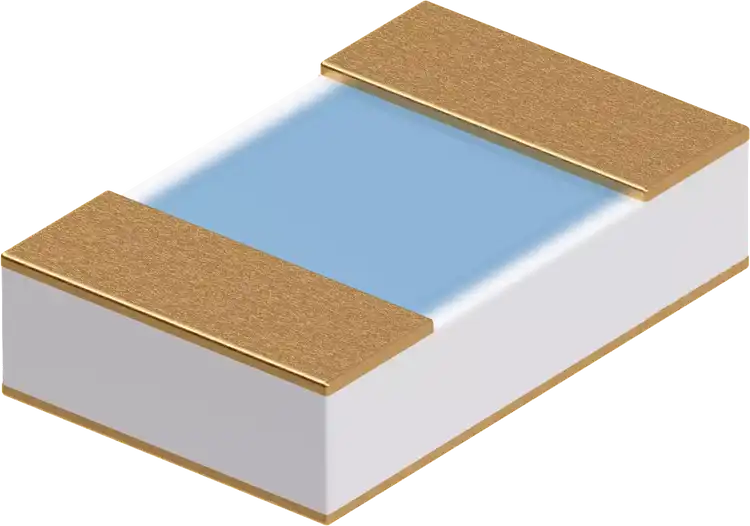

Platinum-chip temperature sensors SMDFCB-L-AuNi
Description
Platinum chip temperature sensors belong to the category of temperature sensors that were made using thin-film technology. Sensors of the SMDFCB design type have a single-sided contact (flip chip) and are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
Short Description
in SMD design type (flip chip) with metallized back cover according to DIN EN IEC 60751
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTIzNDI0MCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiRGVzaWduIHR5cGUiLCJ2YWx1ZSI6IlNNREZDQi1MLUF1TmkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlN0YW5kYXJkIiwidmFsdWUiOiJESU4gRU4gSUVDIDYwNzUxIiwic29ydE5vIjoxfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSByYW5nZSIsInZhbHVlIjoiLTcwIHRvICsyNTDCoMKwQyIsInNvcnRObyI6Mn0seyJuYW1lIjoiVGVtcGVyYXR1cmUgY29lZmZpY2llbnQiLCJ2YWx1ZSI6Is6xID0gMy44NTAgw5cgMTAtM8KgwrBDLTEgKGJldHdlZW4gMCBhbmQgMTAwwqDCsEMpIiwic29ydE5vIjozfSx7Im5hbWUiOiJDb25uZWN0aW9uIiwidmFsdWUiOiJHb2xkLXBsYXRlZCBuaWNrZWwgc29sZGVyIGNvbnRhY3QsIHRoaWNrbmVzcyBvZiBuaWNrZWwgbGF5ZXIg4omlwqAxwqDCtW0sIGdvbGQg4omlwqA0MMKgbm0sIHNvbGRlcmFiaWxpdHkgYWNjb3JkaW5nIHRvIElFQyAvIERJTsKgRU7CoDYwMDY4LTItNTgiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByb2Nlc3NpbmciLCJ2YWx1ZSI6IlJlZmxvdyBzb2xkZXJpbmciLCJzb3J0Tm8iOjV9LHsibmFtZSI6Ik1ldGFsbGl6ZWQgYmFjayBjb3ZlciIsInZhbHVlIjoiTmlja2VsL2dvbGQiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFkdmFudGFnZXMiLCJ2YWx1ZSI6IlNvbGRlcmFibGUgYmFjayBjb3ZlciBmb3IgYmV0dGVyIHRoZXJtYWwgY29udGFjdCwgZm9yIGNvbmZpbmVkIHNwYWNlcywgU01EIHNpemUgMDgwNSwgc2luZ2xlIHNpZGUgY29udGFjdCAoZmxpcCBjaGlwIGRlc2lnbiB0eXBlKSwgaGlnaC1wdXJpdHkgYW5kIGV2ZW4gY29udGFjdCBsYXllciBmb3IgYmV0dGVyIHNvbGRlciBjb25uZWN0aW9uLCBoaWdoIG1lYXN1cmluZyBhY2N1cmFjeSwgaGlnaCBsb25nLXRlcm0gc3RhYmlsaXR5LCBzdGFuZGFyZGl6ZWQgbm9taW5hbCB2YWx1ZXMgYW5kIHRvbGVyYW5jZXMsIGZhc3QgcmVzcG9uc2UgYmVoYXZpb3IiLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoaXAiLCJkZXNjcmlwdGlvbiI6IlNvbGRlcmFibGUgbWV0YWxsaXplZCBiYWNrIGNvdmVyIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zdWNjZXNzIiwiZGVzY3JpcHRpb24iOiJGb3IgY29uZmluZWQgc3BhY2VzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tYXNzemVpY2hudW5nIiwiZGVzY3JpcHRpb24iOiJTTUQgc2l6ZSBTTUQgMDgwNSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJTb2xkZXJhYmxlIG1ldGFsbGl6ZWQgYmFjayBjb3ZlciIsInNvcnRObyI6MH0seyJ0ZXh0IjoiRGlyZWN0IHRoZXJtYWwgY29udGFjdCIsInNvcnRObyI6MX0seyJ0ZXh0IjoiSGlnaCB0ZW1wZXJhdHVyZSBjeWNsZSBzdGFiaWxpdHkiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-chip
Description
Solderable metallized back cover
Icon
icon-success
Description
For confined spaces
Icon
icon-masszeichnung
Description
SMD size SMD 0805
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1234240
Design type
SMDFCB-L-AuNi
Standard
DIN EN IEC 60751
Temperature range
-70 to +250 °C
Temperature coefficient
α = 3.850 × 10-3 °C-1 (between 0 and 100 °C)
Connection
Gold-plated nickel solder contact, thickness of nickel layer ≥ 1 µm, gold ≥ 40 nm, solderability according to IEC / DIN EN 60068-2-58
Processing
Reflow soldering
Metallized back cover
Nickel/gold
Advantages
Solderable back cover for better thermal contact, for confined spaces, SMD size 0805, single side contact (flip chip design type), high-purity and even contact layer for better solder connection, high measuring accuracy, high long-term stability, standardized nominal values and tolerances, fast response behavior
