Name

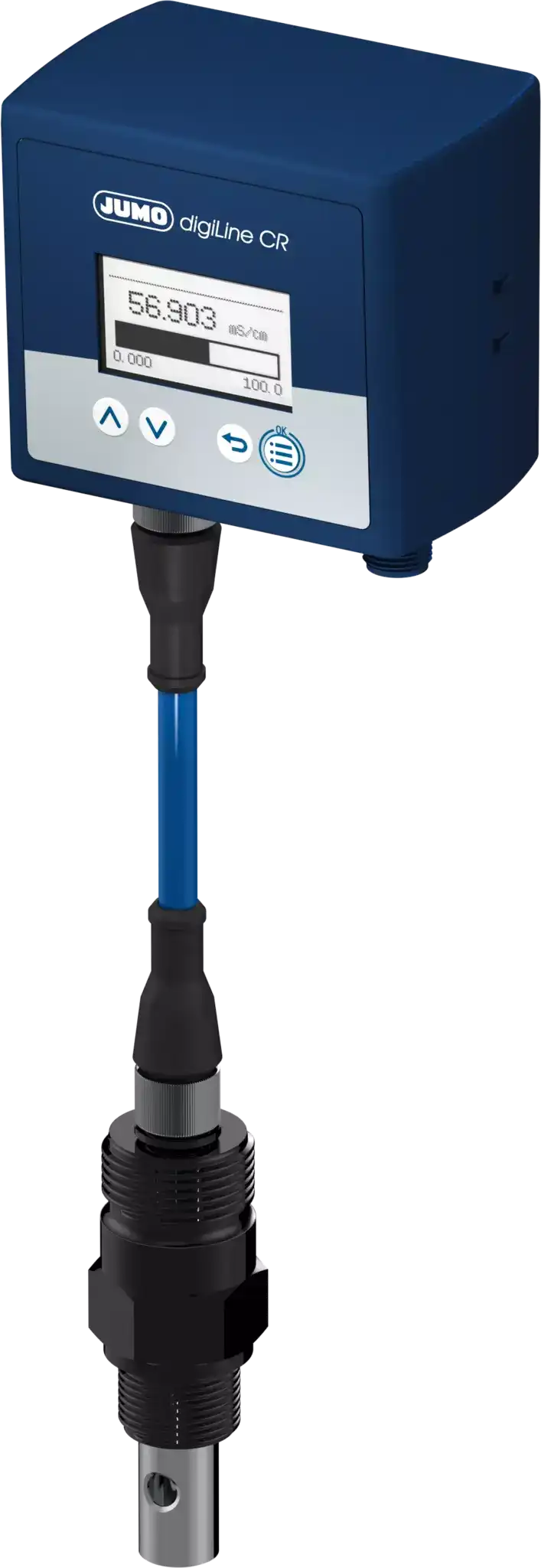

JUMO digiLine CR ST10
Description
JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. In addition to the JUMO digiLine interface, system integration can now also take place via an IO-Link interface.
Short Description
Transmitter for separate conductive conductivity sensor
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzAzMzk0IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJTdWl0YWJsZSBzZW5zb3JzIiwidmFsdWUiOiJTZWUgdHlwZSAyMDI5MjIsIDIwMjkyMywgMjAyOTI0LCAyMDI5MjUsIDIwMjkzMCIsInNvcnRObyI6MH0seyJuYW1lIjoiTWVhc3VyaW5nIHByaW5jaXBsZSIsInZhbHVlIjoiQ29uZHVjdGl2ZSIsInNvcnRObyI6MX0seyJuYW1lIjoiU2Vuc29yIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IlNlcGFyYXRlIGRlc2lnbiB0eXBlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJTZW5zb3IgbWF0ZXJpYWwiLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbCAxLjQ1NzE7IHRpdGFuaXVtOyBzdGFpbmxlc3Mgc3RlZWwgMS40NDM1OyBQRUVLOyBncmFwaGl0ZTsgUFZERjsgUFBFOyBQUyIsInNvcnRObyI6M30seyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiIwLjA1wqDCtVMvY20gdG8gNjAwwqBtUy9jbSIsInNvcnRObyI6NH0seyJuYW1lIjoiVGVtcGVyYXR1cmUgY29tcGVuc2F0aW9uIiwidmFsdWUiOiJMaW5lYXIsIEFTVE0sIFVTUCA8NjQ1PiIsInNvcnRObyI6NX0seyJuYW1lIjoiVGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ik1heC4gMjAwwqDCsEMgKGRlcGVuZHMgb24gc2Vuc29yKSIsInNvcnRObyI6Nn0seyJuYW1lIjoiUHJlc3N1cmUiLCJ2YWx1ZSI6Ik1heC4gNsKgYmFyIChkZXBlbmRzIG9uIHNlbnNvcikiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IkludGVyZmFjZXMiLCJ2YWx1ZSI6IkpVTU8gZGlnaUxpbmUgb3IgSU8tTGluayIsInNvcnRObyI6OH0seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IlVsdHJhLXB1cmUgd2F0ZXIgYXBwbGljYXRpb25zOyByZXZlcnNlIG9zbW9zaXM7IGlvbiBleGNoYW5nZXJzOyBwaGFybWFjZXV0aWNhbCBhcHBsaWNhdGlvbnM7IHJpbnNpbmcgcHJvY2Vzc2VzIGluIHRoZSBmb29kLCBiZXZlcmFnZSwgcGhhcm1hY2V1dGljYWwsIGFuZCBiaW90ZWNobm9sb2d5IGluZHVzdHJpZXM7IHBoYXJtYWNldXRpY2FsczsgY2hlbWlzdHJ5OyBmb29kIHRlY2hub2xvZ3k7IGJvdHRsZSBjbGVhbmluZyBwbGFudHM7IHByb2Nlc3Mgd2F0ZXIiLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXdyYW5jaCIsImRlc2NyaXB0aW9uIjoiUHJlZGljdGl2ZSBtYWludGVuYW5jZSB0aGFua3MgdG8gSlVNTyBEU00iLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiJGbGV4aWJsZSBjb25uZWN0aW9uIG9wdGlvbnMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFsYXJtIiwiZGVzY3JpcHRpb24iOiJPcHRpbXVtIHByb2Nlc3MgbW9uaXRvcmluZyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJTZXBhcmF0ZSBkZXNpZ24gdHlwZSBmb3IgY29uZHVjdGl2ZSBzZW5zb3JzIiwic29ydE5vIjowfSx7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IDAuMDXCoMK1Uy9jbSB0b8KgNjAwwqBtUy9jbSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiSlVNTyBkaWdpTGluZSBvciBJTy1MaW5rIGludGVyZmFjZSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-wranch
Description
Predictive maintenance thanks to JUMO DSM
Icon
icon-anschluesse
Description
Flexible connection options
Icon
icon-alarm
Description
Optimum process monitoring
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=703394
Suitable sensors
See type 202922, 202923, 202924, 202925, 202930
Measuring principle
Conductive
Sensor connection
Separate design type
Sensor material
Stainless steel 1.4571; titanium; stainless steel 1.4435; PEEK; graphite; PVDF; PPE; PS
Measuring range
0.05 µS/cm to 600 mS/cm
Temperature compensation
Linear, ASTM, USP <645>
Temperature
Max. 200 °C (depends on sensor)
Pressure
Max. 6 bar (depends on sensor)
Interfaces
JUMO digiLine or IO-Link
Areas of application
Ultra-pure water applications; reverse osmosis; ion exchangers; pharmaceutical applications; rinsing processes in the food, beverage, pharmaceutical, and biotechnology industries; pharmaceuticals; chemistry; food technology; bottle cleaning plants; process water
