ps-1
Overview
title
Produkt Details
SKU
608005
Name

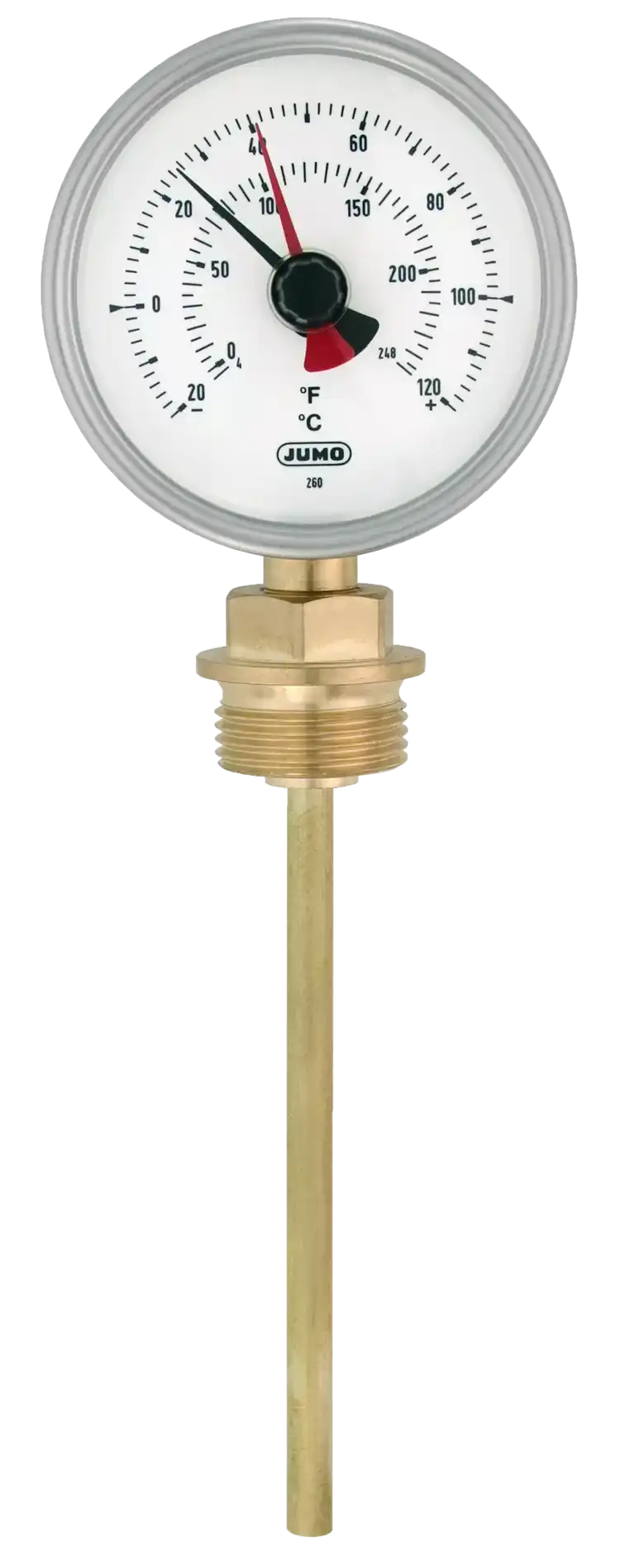

Dial thermometer
Description
The measuring principle of the thermometer is based on a bimetal coil in a stainless steel or brass protection tube. If the temperature increases or falls, it turns and has a direct effect on the indicator via an axis. Versions of the 608005 products comply with DIN EN 13190, class 1.5.
Short Description
Transformer version
Price
€249.19
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzY3NiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiIwwqB0b8KgMTIwwqDCsEMiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkRpc3BsYXkgcmFuZ2UiLCJ2YWx1ZSI6Ii0yMCB0byArMTIwwqDCsEMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkZlYXR1cmVzIiwidmFsdWUiOiJUZW1wZXJhdHVyZSBpbmRpY2F0b3IgaW4gc3RhaW5sZXNzIHN0ZWVsIGNhc2Ugd2l0aCBkcmFnIGluZGljYXRvciIsInNvcnRObyI6Mn0seyJuYW1lIjoiQWNjdXJhY3kgY2xhc3MgYWNjb3JkaW5nIHRvIERJTiBFTiAxMzE5MCIsInZhbHVlIjoiQ2xhc3MgMS41Iiwic29ydE5vIjozfSx7Im5hbWUiOiJDYXBpbGxhcnkvcmlnaWQgdGhlcm1vd2VsbCIsInZhbHVlIjoiMVwiIHNjcmV3IGNvbm5lY3Rpb24sIHByb2JlIDE1MMKgbW0gbG9uZyBmb3IgbW91bnRpbmcgaW4gdHJhbnNmb3JtZXIgc2xlZXZlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJDYXNlIHNpemUiLCJ2YWx1ZSI6IjgwwqBtbSIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJvYmUgb3V0bGV0IiwidmFsdWUiOiJWZXJ0aWNhbCBvciBob3Jpem9udGFsIiwic29ydE5vIjo2fSx7Im5hbWUiOiJBcmVhIG9mIGFwcGxpY2F0aW9uIiwidmFsdWUiOiJJbmR1c3RyaWFsIHRyYW5zZm9ybWVycyIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tYmF0dGVyeS1mdWxsIiwiZGVzY3JpcHRpb24iOiJXaXRob3V0IGF1eGlsaWFyeSBlbmVyZ3kiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFycm93LXVwLXJpZ2h0IiwiZGVzY3JpcHRpb24iOiJEcmFnIGluZGljYXRvciIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6IkltcGVydmlvdXMgdG8gYW1iaWVudCB0ZW1wZXJhdHVyZSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNYXguIGNhc2Ugc2l6ZTogw5jCoDgwwqBtbSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAwIHRvIDEyMMKgwrBDIiwic29ydE5vIjoxfSx7InRleHQiOiJBY2N1cmFjeSBjbGFzcyAxLjUiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-battery-full
Description
Without auxiliary energy
Icon
icon-arrow-up-right
Description
Drag indicator
Icon
icon-thermometer
Description
Impervious to ambient temperature
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3676
Measuring range
0 to 120 °C
Display range
-20 to +120 °C
Features
Temperature indicator in stainless steel case with drag indicator
Accuracy class according to DIN EN 13190
Class 1.5
Capillary/rigid thermowell
1" screw connection, probe 150 mm long for mounting in transformer sleeve
Case size
80 mm
Probe outlet
Vertical or horizontal
Area of application
Industrial transformers
