Produkt Details
SKU
406011
Name

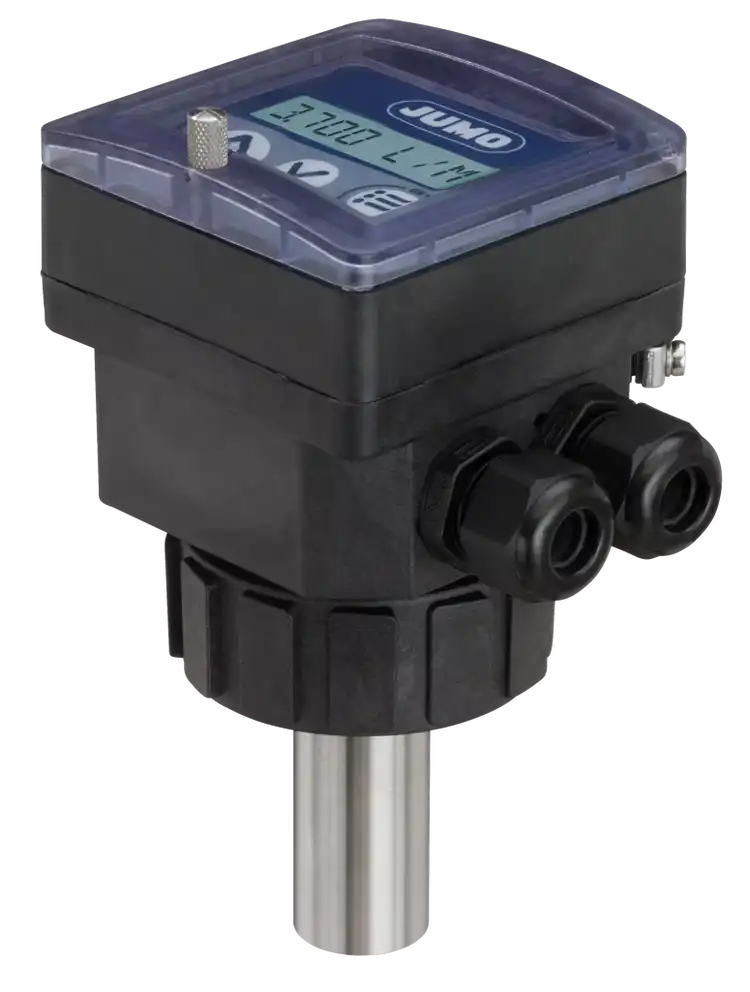

JUMO flowTRANS MAG I02
Description
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
Short Description
Plug-in magnetic-inductive flow transmitter with display
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTgxNTYwIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjAuMiB0byAxMCBtL3MiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik5vbWluYWwgcHJlc3N1cmUiLCJ2YWx1ZSI6IlBOIDE2Iiwic29ydE5vIjoxfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ik1heC4gMTEwIMKwQyIsInNvcnRObyI6Mn0seyJuYW1lIjoiTm9taW5hbCBwaXBlIHdpZHRoIiwidmFsdWUiOiJETiAxNSB0byBETiA0MDAiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IklucHV0cyBhbmQgb3V0cHV0cyIsInZhbHVlIjoiNCB0byAyMCBtQTsgcHVsc2UgZnJlcXVlbmN5OyAyIHggc3dpdGNoaW5nIG91dHB1dCAocmVsYXkpOyBkaWdpdGFsIGlucHV0Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgYWNjdXJhY3kiLCJ2YWx1ZSI6IuKJpCDCscKgMy41wqAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSAoc3RhbmRhcmQgY2FsaWJyYXRpb24gZmFjdG9yKTsg4omkIMKxIDAuNSAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSAoVGVhY2gtSW4pIiwic29ydE5vIjo1fSx7Im5hbWUiOiJQYXJ0cyBpbiBjb250YWN0IHdpdGggbWVkaXVtIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwgMzE2TCAoMS40NDA0KTsgRktNIG9yIEVQRE07IFBFRUsiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA2NSIsInNvcnRObyI6N30seyJuYW1lIjoiTWVkaXVtIiwidmFsdWUiOiJDb25kdWN0aXZlIGxpcXVpZHMgYXMgb2YgMjAgzrxTL2NtIiwic29ydE5vIjo4fSx7Im5hbWUiOiJWb2x0YWdlIHN1cHBseSIsInZhbHVlIjoiREMgMTggdG8gMzYgViIsInNvcnRObyI6OX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiV2l0aCBkaXNwbGF5Iiwic29ydE5vIjoxMH0seyJuYW1lIjoiQWNjZXNzb3JpZXMiLCJ2YWx1ZSI6IlQtZml0dGluZ3MgbWFkZSBvZiBQVkMgb3Igc3RhaW5sZXNzIHN0ZWVsOyBQRSBvciBzdGFpbmxlc3Mgc3RlZWwgd2VsZGVkIHNvY2tldDsgUFAgY29ubmVjdGlvbiBjbGFtcHMgKHR5cGUgNDA2MDkwKSIsInNvcnRObyI6MTF9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWJhc2ljcyIsImRlc2NyaXB0aW9uIjoiSGlnaCBkZWdyZWUgb2YgZnVuY3Rpb25hbGl0eSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY29tcHV0ZXIiLCJkZXNjcmlwdGlvbiI6IklsbHVtaW5hdGVkIExDRCBkaXNwbGF5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi13cmVuY2giLCJkZXNjcmlwdGlvbiI6Ik1pbmltYWwgaW5zdGFsbGF0aW9uIGVmZm9ydCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJUb3RhbCBhbmQgZGFpbHkgY291bnRlciIsInNvcnRObyI6MH0seyJ0ZXh0IjoiQ29uZmlndXJhYmxlIGlucHV0cyBhbmQgb3V0cHV0cyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiVGVtcGVyYXR1cmVzIHVwIHRvIDExMMKgwrBDIiwic29ydE5vIjoyfV19
title
Icon
icon-basics
Description
High degree of functionality
Icon
icon-computer
Description
Illuminated LCD display
Icon
icon-wrench
Description
Minimal installation effort
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=581560
Measuring range
0.2 to 10 m/s
Nominal pressure
PN 16
Medium temperature
Max. 110 °C
Nominal pipe width
DN 15 to DN 400
Inputs and outputs
4 to 20 mA; pulse frequency; 2 x switching output (relay); digital input
Measuring accuracy
≤ ± 3.5 % of the measured value (standard calibration factor); ≤ ± 0.5 % of the measured value (Teach-In)
Parts in contact with medium
Stainless steel 316L (1.4404); FKM or EPDM; PEEK
Protection type
IP65
Medium
Conductive liquids as of 20 μS/cm
Voltage supply
DC 18 to 36 V
Special features
With display
Accessories
T-fittings made of PVC or stainless steel; PE or stainless steel welded socket; PP connection clamps (type 406090)
