Produkt Details
SKU
409786
Name

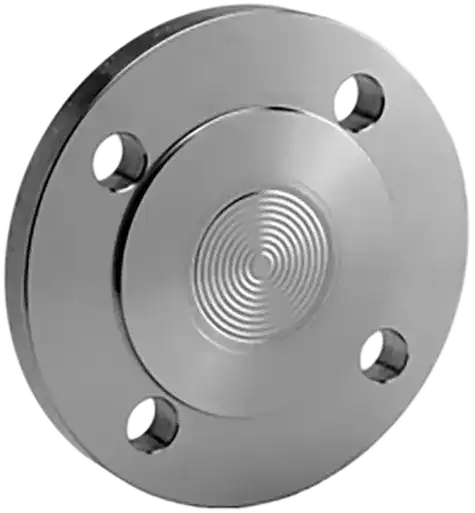

Diaphragm seal
Description
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to ANSI B 16.5 and is available with a sealing strip type RF.
Short Description
With flange connection according to ANSI B 16.5
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDU1OSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWF0ZXJpYWwiLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbCIsInRvb2x0aXAiOiJTcGVjaWFsIG1hdGVyaWFscyB1cG9uIHJlcXVlc3QiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkZpbGxpbmcgbWVkaXVtIiwidmFsdWUiOiJTaWxpY29uZSBvaWwsIGhhbG9nZW5hdGVkIG9pbCwgdmVnZXRhYmxlIG9pbCIsInNvcnRObyI6MX0seyJuYW1lIjoiQ2FwaWxsYXJ5IHR1YmUiLCJ2YWx1ZSI6IjHCoG0sIDEuNcKgbSwgMsKgbSwgM8KgbSwgNcKgbSIsInRvb2x0aXAiOiJBbHNvIHdpdGhvdXQgY2FwaWxsYXJ5IHR1YmUgb3Igd2l0aCBjb29saW5nIGVsZW1lbnQiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkJhc2ljIHR5cGUiLCJ2YWx1ZSI6IjUwwqBtbSwgMTAwwqBtbSwgMTUwwqBtbSwgMjAwwqBtbSIsInRvb2x0aXAiOiJBbHNvIHdpdGhvdXQgdHViZSIsInNvcnRObyI6M30seyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiRmxhbmdlIGNvbm5lY3Rpb24gYWNjb3JkaW5nIHRvIEFOU0kgQiAxNi41Iiwic29ydE5vIjo0fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1yZWQtY2hlY2siLCJkZXNjcmlwdGlvbiI6Ik9wdGlvbmFsbHkgd2l0aCB0dWJlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1wcm9kdWN0Z3JvdXAiLCJkZXNjcmlwdGlvbiI6Ik9wdGlvbmFsbHkgd2l0aCBQVEZFIGNvYXRpbmciLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWZsb3ctdHJlZSIsImRlc2NyaXB0aW9uIjoiVmFyaW91cyBwcm9jZXNzIGNvbm5lY3Rpb25zIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IlByb2Nlc3MgY29ubmVjdGlvbjogZmxhbmdlIGFjY29yZGluZyB0byBBTlNJIEIxNi41Iiwic29ydE5vIjowfSx7InRleHQiOiJOb21pbmFsIHdpZHRoczogRE7CoDJcIiwgRE7CoDNcIiwgRE7CoDRcIiIsInNvcnRObyI6MX0seyJ0ZXh0IjoiTm9taW5hbCBwcmVzc3VyZTogUE7CoDE1MCB0byBQTsKgMjUwMCIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-red-check
Description
Optionally with tube
Icon
icon-productgroup
Description
Optionally with PTFE coating
Icon
icon-flow-tree
Description
Various process connections
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4559
Material
Stainless steel
Filling medium
Silicone oil, halogenated oil, vegetable oil
Capillary tube
1 m, 1.5 m, 2 m, 3 m, 5 m
Basic type
50 mm, 100 mm, 150 mm, 200 mm
Connection
Flange connection according to ANSI B 16.5
