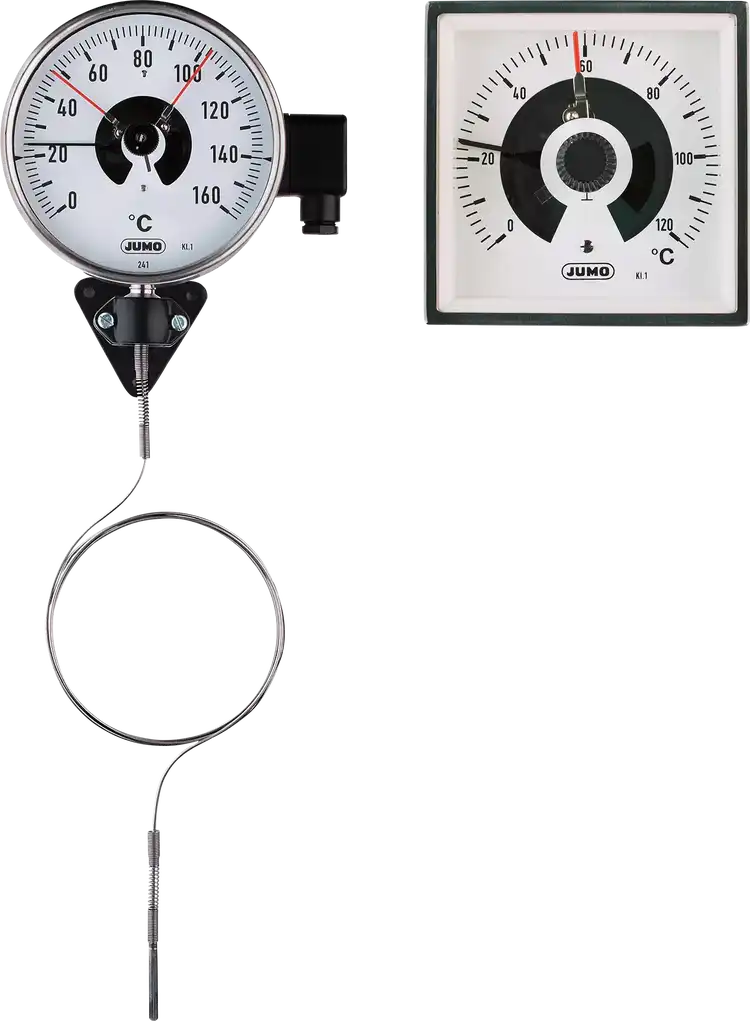

Contact dial thermometers
Description
Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.
Short Description
For temperature control
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9Mjk4OCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiItNDDCoHRvwqArNDUwwqDCsEMiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkRpc3BsYXkgcmFuZ2UiLCJ2YWx1ZSI6Ii01MMKgdG/CoCs1MDDCoMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiSG91c2luZyBzaXplIiwidmFsdWUiOiIxMDDCoG1tLCAxNjDCoG1tLCBhbmQgZnJvbnQgcGFuZWwgOTYgw5cgOTbCoG1tIiwic29ydE5vIjoyfSx7Im5hbWUiOiJBY2N1cmFjeSBjbGFzcyBhY2NvcmRpbmcgdG8gRElOIEVOIDEzMTkwIiwidmFsdWUiOiJDbGFzcyAxIiwic29ydE5vIjozfSx7Im5hbWUiOiJGZWF0dXJlcyIsInZhbHVlIjoiVGVtcGVyYXR1cmUgY29udHJvbGxlciBpbiBmbHVzaC1tb3VudGVkIGhvdXNpbmcgb3Igc3VyZmFjZS1tb3VudGVkIGhvdXNpbmc7IGFtYmllbnQgdGVtcGVyYXR1cmUgY29tcGVuc2F0aW9uIiwic29ydE5vIjo0fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiUHJvY2VzcyB0ZWNobm9sb2d5LCBvdmVuIGVuZ2luZWVyaW5nIiwic29ydE5vIjo1fSx7Im5hbWUiOiJDYXBpbGxhcnkvcmlnaWQgdGhlcm1vd2VsbCIsInZhbHVlIjoiUmlnaWQgdGhlcm1vd2VsbCBvciBjYXBpbGxhcnkgKHVwIHRvIDEwwqBtKSIsInNvcnRObyI6Nn0seyJuYW1lIjoiUHJvYmUgb3V0bGV0IiwidmFsdWUiOiJWZXJ0aWNhbCBvciBob3Jpem9udGFsIiwic29ydE5vIjo3fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi10aGVybW9tZXRlciIsImRlc2NyaXB0aW9uIjoiQ2FwaWxsYXJ5IG1lYXN1cmluZyBzeXN0ZW0iLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWJhdHRlcnktZnVsbCIsImRlc2NyaXB0aW9uIjoiV2l0aG91dCBhdXhpbGlhcnkgZW5lcmd5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tb25pdG9yIiwiZGVzY3JpcHRpb24iOiJBY2N1cmFjeSBjbGFzcyAxIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik1heC4gaG91c2luZyBzaXplOiDDuMKgMTYwwqBtbSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWVhc3VyZW1lbnQgcmFuZ2U6IC00MCB0byArNDUwwqDCsEMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Ik1heC4gc3dpdGNoaW5nIGNhcGFjaXR5OiA1MMKgVkEvMzDCoFciLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-thermometer
Description
Capillary measuring system
Icon
icon-battery-full
Description
Without auxiliary energy
Icon
icon-monitor
Description
Accuracy class 1
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=2988
Measuring range
-40 to +450 °C
Display range
-50 to +500 °C
Housing size
100 mm, 160 mm, and front panel 96 × 96 mm
Accuracy class according to DIN EN 13190
Class 1
Features
Temperature controller in flush-mounted housing or surface-mounted housing; ambient temperature compensation
Areas of application
Process technology, oven engineering
Capillary/rigid thermowell
Rigid thermowell or capillary (up to 10 m)
Probe outlet
Vertical or horizontal
