Produkt Details
SKU
705003
Name

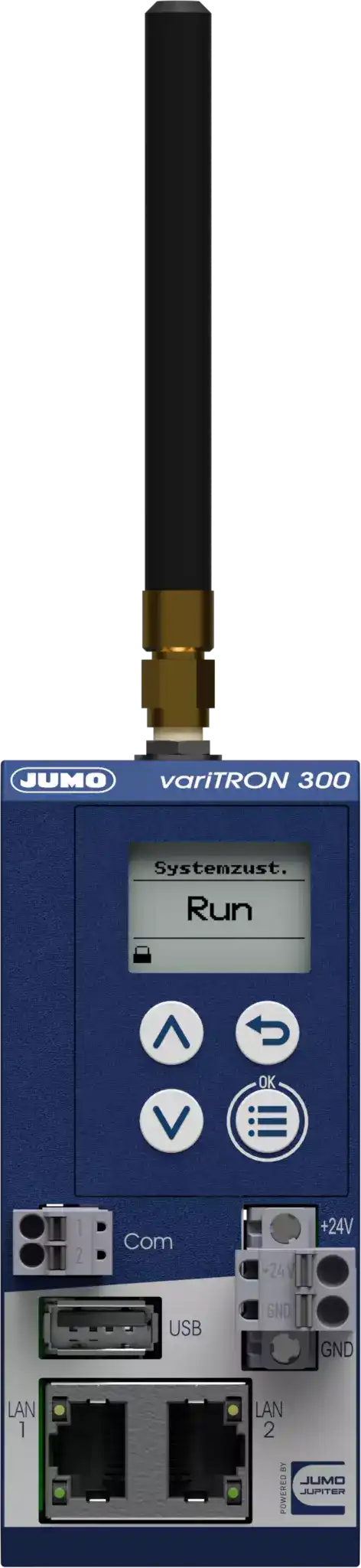

JUMO variTRON 300
Description
JUMO variTRON 300 is a compact automation system. The central processing unit can also be used as a receiver for the wireless JUMO Wtrans sensors. A router module can be used to connect JUMO's proven input and output modules and to set up an overall system with integrated PLC (CODESYS V3.5).
Short Description
Central processing unit for automation system with optional wireless interface
Availability
In Stock
Images
State
TOP_SELLER
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9OTQwMTU5IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJJbnRlcmZhY2VzIiwidmFsdWUiOiIxIFVTQiBob3N0LCAyIEV0aGVybmV0LCAxIFJTNDg1IE1vZGJ1cyBSVFUiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik9wZXJhdGlvbiIsInZhbHVlIjoiS2V5cyBhbmQgTENEIGRpc3BsYXksIG1vbm9jaHJvbWUsIDk2IMOXIDY0wqBwaXhlbHMgKDggbGluZXMpIiwic29ydE5vIjoxfSx7Im5hbWUiOiJPcHRpb24iLCJ2YWx1ZSI6IlBMQyBhY2NvcmRpbmcgdG8gSUVDIDYxMTMxLTMgKENPREVTWVMgVjMuNSk7IE9QQyBVQSBzZXJ2ZXIgKGluIGNvbm5lY3Rpb24gd2l0aCBQTEMpOyBFdGhlckNBVCBtYXN0ZXIgKGluIGNvbm5lY3Rpb24gd2l0aCBQTEMpOyBhcHBsaWNhdGlvbnMgd2l0aCB0aGUgcHJvZ3JhbW1pbmcgZW52aXJvbm1lbnQgTm9kZS1SRUQiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkhhcmR3YXJlIiwidmFsdWUiOiI4MDAgTUh6IHNpbmdsZS1jb3JlIHByb2Nlc3NvciIsInNvcnRObyI6M30seyJuYW1lIjoiTW9kdWxlcyIsInZhbHVlIjoiQSBsYXJnZSBzZWxlY3Rpb24gb2YgY29ubmVjdGlvbiBtb2R1bGVzIHdpdGggaGlnaC1xdWFsaXR5LCBjb25maWd1cmFibGUgYW5hbG9nIGlucHV0cyBhbmQgcmVsaWFibGUsIGluZGVwZW5kZW50IFBJRCBjb250cm9sbGVycyB3aXRoIGF1dG90dW5pbmcgZnVuY3Rpb24iLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkRpc3BsYXlzIiwidmFsdWUiOiJEaXNwbGF5cyBpbiB2YXJpb3VzIGZvcm1hdHMgKHBvcnRyYWl0IG9yIGxhbmRzY2FwZSBmb3JtYXQsIDQ6MyBvciAxNjo5KSBjYW4gYmUgY29ubmVjdGVkOyBDT0RFU1lTIFJlbW90ZSBUYXJnZXRWaXN1IG9yIENPREVTWVMgV2ViVmlzdSIsInNvcnRObyI6NX0seyJuYW1lIjoiQ29ubmVjdGlvbiBwb3NzaWJpbGl0aWVzIiwidmFsdWUiOiJDb25uZWN0aW9uIG1vZHVsZXMgdmlhIHJvdXRlciBtb2R1bGU7IEpVTU8gZGlnaUxpbmUgc2Vuc29ycyBmb3IgbGlxdWlkIGFuYWx5c2lzOyB0aHlyaXN0b3IgcG93ZXIgY29udHJvbGxlciAodmlhIEV0aGVyQ0FUKTsgd2lyZWxlc3Mgc2lnbmFscyBmcm9tIEpVTU8gV3RyYW5zIHNlbnNvcnMgdmlhIGludGVncmF0ZWQgcmVjZWl2ZXIgKG9wdGlvbmFsKSIsInNvcnRObyI6Nn0seyJuYW1lIjoiQ29udHJvbCBsb29wcyIsInZhbHVlIjoiVXAgdG8gMzIiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IlJlY29yZGluZyBmdW5jdGlvbiIsInZhbHVlIjoiVXAgdG8gNjAgcmVjb3JkaW5nIGNoYW5uZWxzLCB1cCB0byAxMCBiYXRjaGVzLCB1cCB0byAxMCBtZWFzdXJpbmcgZ3JvdXBzLCBpbnRlcm5hbCBtZW1vcnkgZm9yIDEgbWlsbGlvbiBtZWFzdXJlZCB2YWx1ZXMgd2l0aCBtYW5pcHVsYXRpb24gZGV0ZWN0aW9uIiwic29ydE5vIjo4fSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJGbGV4aWJsZSBvcGVyYXRpbmcgcGhpbG9zb3BoeTsgbWFueSBkZWdyZWVzIG9mIGZyZWVkb20gaW4gc29mdHdhcmUgYW5kIGhhcmR3YXJlOyBzaW1wbGUgYWRhcHRhdGlvbiBvZiBoYXJkd2FyZSBpbnB1dHMgYW5kIG91dHB1dHM7IHNpbXBsZSBpbnRlZ3JhdGlvbiBvZiBuZXcgc29mdHdhcmUgZnVuY3Rpb25zIHZpYSBDT0RFU1lTIFBMQzsgaW50ZWdyYXRlZCBKVU1PIFdlYiBDb2NrcGl0OyBzaW11bHRhbmVvdXMgb3BlcmF0aW9uIG9mIHNldmVyYWwgY29udHJvbCBsb29wcyB3aXRoIGF1dG90dW5pbmcgZnVuY3Rpb247IGludGVncmF0aW9uIG9mIGN1c3RvbWVyLXNwZWNpZmljIHBhcmFtZXRlcnMgKENQViBlZGl0b3IpLCBvcHRpb25hbCByZWNvcmRlciBhcHAgZm9yIHByb2Nlc3MgZGF0YSBhY3F1aXNpdGlvbiBhbmQgZXZhbHVhdGlvbiIsInNvcnRObyI6OX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tYW5zY2hsdWVzc2UiLCJkZXNjcmlwdGlvbiI6IlN1cHBvcnQgb2YgbnVtZXJvdXMgZmllbGRidXMgc3lzdGVtcyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY29tcHV0ZXIiLCJkZXNjcmlwdGlvbiI6IkNvbm5lY3Rpb24gb2YgbW9kZXJuIHdlYiBwYW5lbHMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNvbXBvc2UiLCJkZXNjcmlwdGlvbiI6IkNPREVTWVMgVjMuNSBwcm9ncmFtbWluZyBlbnZpcm9ubWVudCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNb2Rlcm4gcHJvdG9jb2xzIChlLmcuIE9QQyBVQSwgTVFUVCkiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IkN1c3RvbWVyLXNwZWNpZmljIHBhcmFtZXRlcnMgKENQViBlZGl0b3IpIiwic29ydE5vIjoxfSx7InRleHQiOiJKVU1PIFd0cmFucyByZWNlaXZlciAob3B0aW9uYWwpIiwic29ydE5vIjoyfV19
title
Icon
icon-anschluesse
Description
Support of numerous fieldbus systems
Icon
icon-computer
Description
Connection of modern web panels
Icon
icon-compose
Description
CODESYS V3.5 programming environment
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=940159
Interfaces
1 USB host, 2 Ethernet, 1 RS485 Modbus RTU
Operation
Keys and LCD display, monochrome, 96 × 64 pixels (8 lines)
Option
PLC according to IEC 61131-3 (CODESYS V3.5); OPC UA server (in connection with PLC); EtherCAT master (in connection with PLC); applications with the programming environment Node-RED
Hardware
800 MHz single-core processor
Modules
A large selection of connection modules with high-quality, configurable analog inputs and reliable, independent PID controllers with autotuning function
Displays
Displays in various formats (portrait or landscape format, 4:3 or 16:9) can be connected; CODESYS Remote TargetVisu or CODESYS WebVisu
Connection possibilities
Connection modules via router module; JUMO digiLine sensors for liquid analysis; thyristor power controller (via EtherCAT); wireless signals from JUMO Wtrans sensors via integrated receiver (optional)
Control loops
Up to 32
Recording function
Up to 60 recording channels, up to 10 batches, up to 10 measuring groups, internal memory for 1 million measured values with manipulation detection
Special features
Flexible operating philosophy; many degrees of freedom in software and hardware; simple adaptation of hardware inputs and outputs; simple integration of new software functions via CODESYS PLC; integrated JUMO Web Cockpit; simultaneous operation of several control loops with autotuning function; integration of customer-specific parameters (CPV editor), optional recorder app for process data acquisition and evaluation
