Produkt Details
SKU
907020
Name

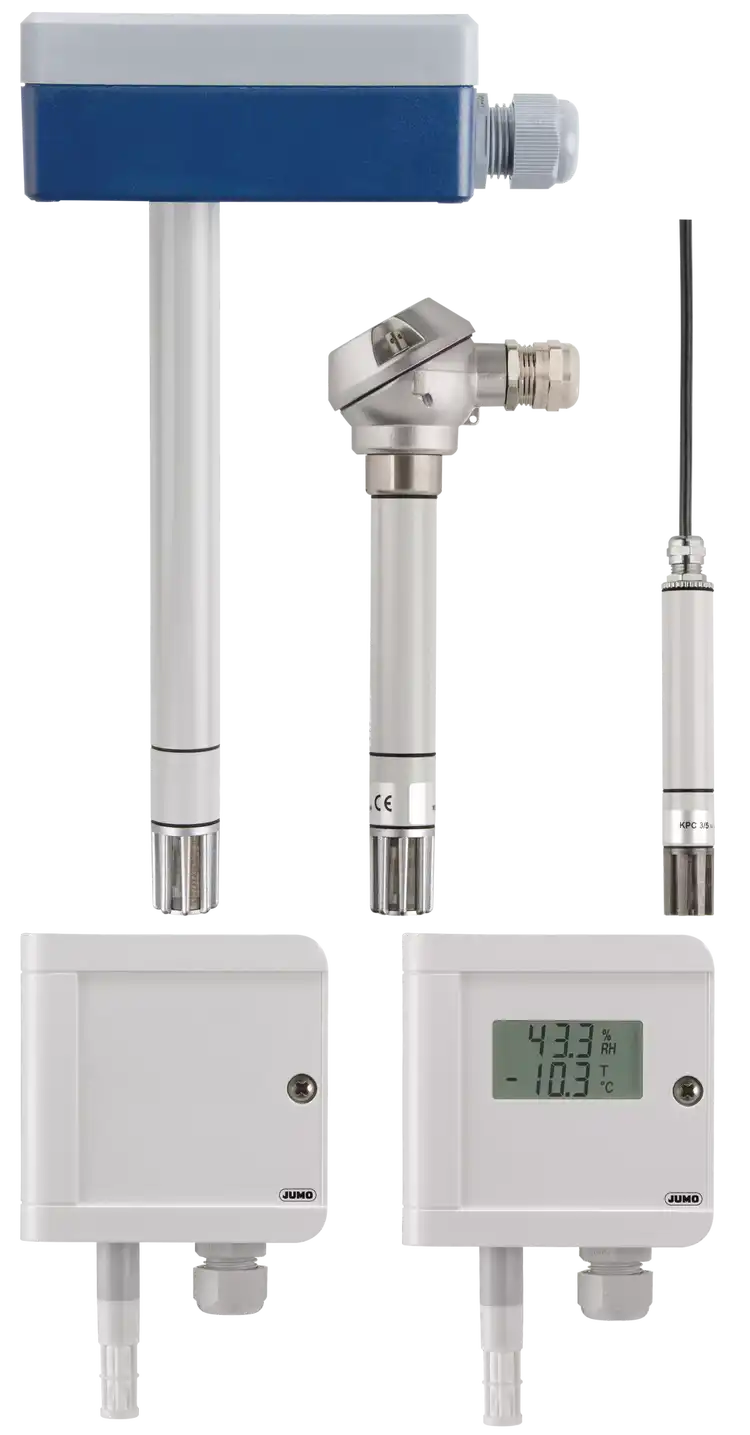

Hygro transducer and hygrothermal transducer (capacitive)
Description
This measuring probe is for versatile ventilation and air conditioning applications. It is particularly easy to install, has a robust form, and uses reliable humidity measurement technology.
Short Description
For applications in the air-conditioning sector
Availability
In Stock
Images
State
LIVE
Variants
Version
Output
Range(s)
Basic type
Extra code 793
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9OTYyNTgiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6Ik1lYXN1cmluZyByYW5nZSIsInZhbHVlIjoiUkggPSAwwqB0b8KgMTAwwqAlIFJIIFQgPSAtNDDCoHRvwqArODDCoMKwQyAoZGVwZW5kaW5nIG9uIHR5cGUpIiwic29ydE5vIjowfSx7Im5hbWUiOiJNZWFzdXJlbWVudCBtZWRpdW0iLCJ2YWx1ZSI6IkFpciwgcHJlc3N1cmVsZXNzIChub24tYWdncmVzc2l2ZSkiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IlNlbnNpbmcgZWxlbWVudCIsInZhbHVlIjoiQ2FwYWNpdGl2ZSAocmVzaXN0YW50IHRvIGNvbmRlbnNhdGlvbiwgZmFzdCByZXNwb25zZSkiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiR09TVCIsInNvcnRObyI6M30seyJuYW1lIjoiQWNjZXNzb3JpZXMiLCJ2YWx1ZSI6IkhvbGRlcnMgYW5kIHJlcGxhY2VhYmxlIGZpbHRlcnMgYWxzbyBhdmFpbGFibGUgYXMgYWNjZXNzb3JpZXMiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJEQ8KgMjTCoFYgKHN0YW5kYXJkKSwgb3RoZXJzIGRlcGVuZGluZyBvbiB0aGUgdmVyc2lvbiIsInNvcnRObyI6NX0seyJuYW1lIjoiQXBwbGljYXRpb24iLCJ2YWx1ZSI6IlZlbnRpbGF0aW9uIGFuZCBhaXItY29uZGl0aW9uaW5nIHNlY3RvcnMiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlZlcnNpb24iLCJ2YWx1ZSI6IkluZG9vciwgZHVjdCwgd2FsbC1tb3VudGVkLCBhbmQgcm9kIHZlcnNpb24iLCJzb3J0Tm8iOjd9LHsibmFtZSI6Ik91dHB1dHMiLCJ2YWx1ZSI6IjTCoHRvwqAyMMKgbUEsIDDCoHRvwqAxwqBWLCAwwqB0b8KgMTDCoFYgYXMgd2VsbCBhcyBQdDEwMCAod2l0aCBUIHBhc3NpdmUpIiwic29ydE5vIjo4fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQMjAgaW5kb29yIHZlcnNpb24sIElQNjQgZHVjdCBhbmQgcm9kIHZlcnNpb24iLCJzb3J0Tm8iOjl9LHsibmFtZSI6IlRlbXBlcmF0dXJlIHdvcmtpbmcgcmFuZ2UiLCJ2YWx1ZSI6Ii0zMMKgdG/CoCs2MMKgwrBDIChpbmRvb3IgdmVyc2lvbiksIC0zMMKgdG/CoCs4MMKgwrBDICh3YWxsLW1vdW50ZWQsIGR1Y3QsIGFuZCByb2QgdmVyc2lvbikiLCJzb3J0Tm8iOjEwfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSBzZW5zb3IiLCJ2YWx1ZSI6IlB0MTAwIG9yIFB0MTAwMCIsInNvcnRObyI6MTF9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNvbXB1dGVyIiwiZGVzY3JpcHRpb24iOiIyLWxpbmUgTENELWRpc3BsYXkgYXMgb3B0aW9uYWwgZXh0cmEiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXdyYW5jaCIsImRlc2NyaXB0aW9uIjoiUm9kLCBpbmRvb3IsIHdhbGwtbW91bnRlZCwgYW5kIGR1Y3QgdmVyc2lvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYW5zY2hsdWVzc2UiLCJkZXNjcmlwdGlvbiI6IkN1cnJlbnQgYW5kIHZvbHRhZ2Ugb3V0cHV0cyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IDDCoHRvwqAxMDDCoCUgUkgiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Ik1lZGl1bTogYWlyLCBwcmVzc3VyZWxlc3MgKG5vbi1hZ2dyZXNzaXZlKSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiUHQxMDAgdGVtcGVyYXR1cmUgb3V0cHV0Iiwic29ydE5vIjoyfV19
title
Icon
icon-computer
Description
2-line LCD-display as optional extra
Icon
icon-wranch
Description
Rod, indoor, wall-mounted, and duct version
Icon
icon-anschluesse
Description
Current and voltage outputs
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=96258
Measuring range
RH = 0 to 100 % RH T = -40 to +80 °C (depending on type)
Measurement medium
Air, pressureless (non-aggressive)
Sensing element
Capacitive (resistant to condensation, fast response)
Approvals
GOST
Accessories
Holders and replaceable filters also available as accessories
Voltage supply
DC 24 V (standard), others depending on the version
Application
Ventilation and air-conditioning sectors
Version
Indoor, duct, wall-mounted, and rod version
Outputs
4 to 20 mA, 0 to 1 V, 0 to 10 V as well as Pt100 (with T passive)
Protection type
IP20 indoor version, IP64 duct and rod version
Temperature working range
-30 to +60 °C (indoor version), -30 to +80 °C (wall-mounted, duct, and rod version)
Temperature sensor
Pt100 or Pt1000
