What are the challenges of measuring fuel, diesel and AdBlue levels?

Measuring the level of fuels, diesel and AdBlue in industrial tanks involves a number of technical challenges that have a direct impact on safety, accuracy of readings and efficiency of the entire logistics process. First of all, the specific properties of the measured media have to be taken into account - AdBlue is a corrosive liquid, while fuels and diesel are flammable, which requires the use of measuring equipment with appropriate ATEX certificates. An additional complication is the often variable operating conditions of tanks: different ambient temperatures, evaporation of liquids, the possibility of foam formation, and deposits on the walls. All this can affect the reliability of the measurement. In the case of large warehouses, it also becomes important to remotely monitor liquid levels, to integrate with fleet or warehouse management systems, and to be able to generate real-time alarms - for example, in the event of a leak or sudden drop in level. Therefore, an effective measurement system must not only be precise and resistant to environmental conditions, but also easy to integrate and operate.

How to select a level sensor for fuel and AdBlue in industrial tanks? Our solution

For reliable and safe level measurement, the selection of the right sensor must take into account both the properties of the medium and the operating conditions. That's why at JUMO we offer specific, proven solutions - both for flammable liquids such as diesel and gasoline and for chemically aggressive AdBlue.

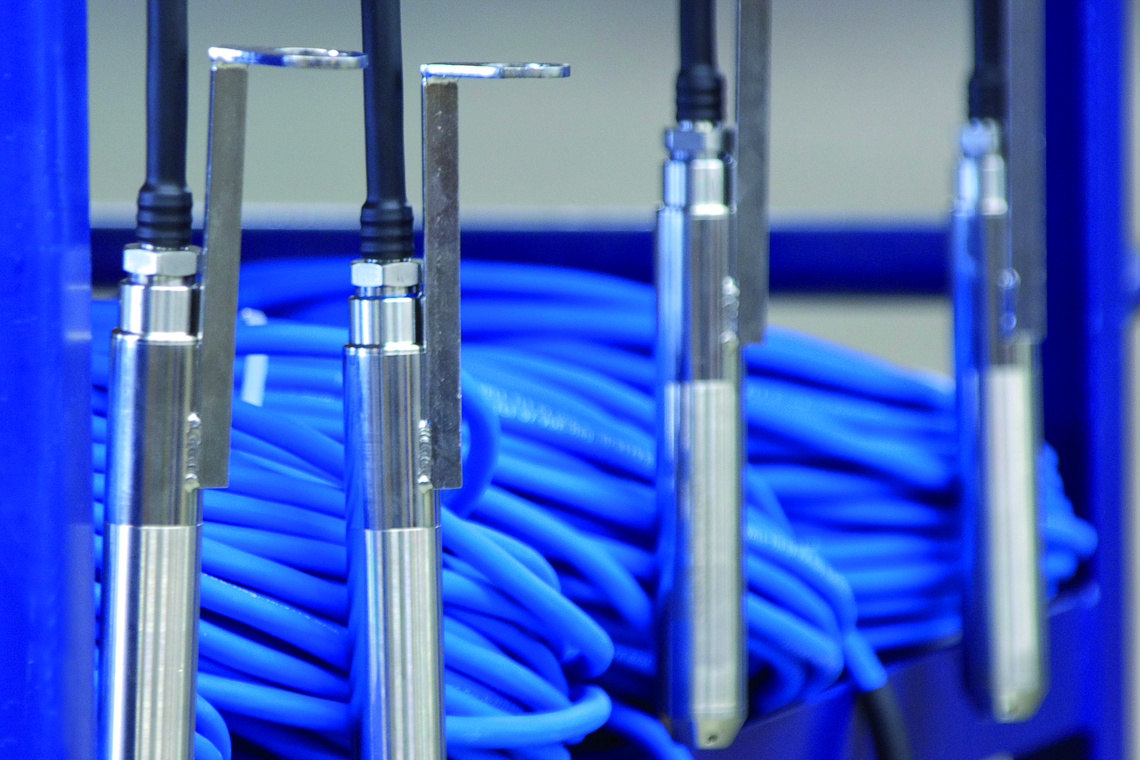

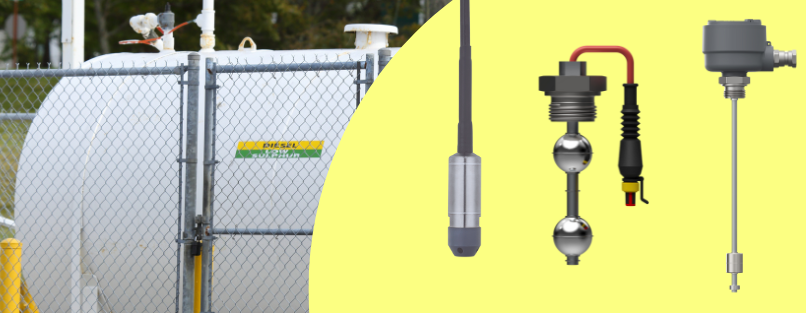

For diesel and gasoline, ATEX-approved sensors are the best choice. For hydrostatic applications, we recommend the MAERA S29 SW probe - made of titanium, chemically resistant and designed for use in hazardous areas. If continuous measurement using float technology is needed, the NESOS R20 LT - also available in ATEX and with a titanium housing - is ideal. For applications where point signaling is sufficient (e.g., MIN/MAX level), consider the compact NESOS R01 LS switch.

In the case of AdBlue, the chemical resistance of the materials used is crucial. Here, too, the aforementioned NESOS R20 LT performs very well - the titanium version ensures durability and reliability even in prolonged contact with urea. An alternative for point measurements is the NESOS R02 LS - a float sensor in titanium version, also available with ATEX certification.

All of the listed devices offer a standard 4-20 mA analog output, allowing for easy integration into automation systems - such as JUMO variTRON controllers, the JUMO Cloud platform or SCADA software.

Need support in selecting a sensor? Get in touch with us!

Choosing the right level sensor is not just a technical issue - it is a decision that affects the safety, efficiency and continuity of the entire system. Therefore, it is worth betting on proven solutions and experience.

If you measure diesel, gasoline or AdBlue levels and are concerned about reliability, our engineers will be happy to help you select the perfect device for your application - whether it's a simple tank or an elaborate automation system.

Contact us - together we will find the best solution.
