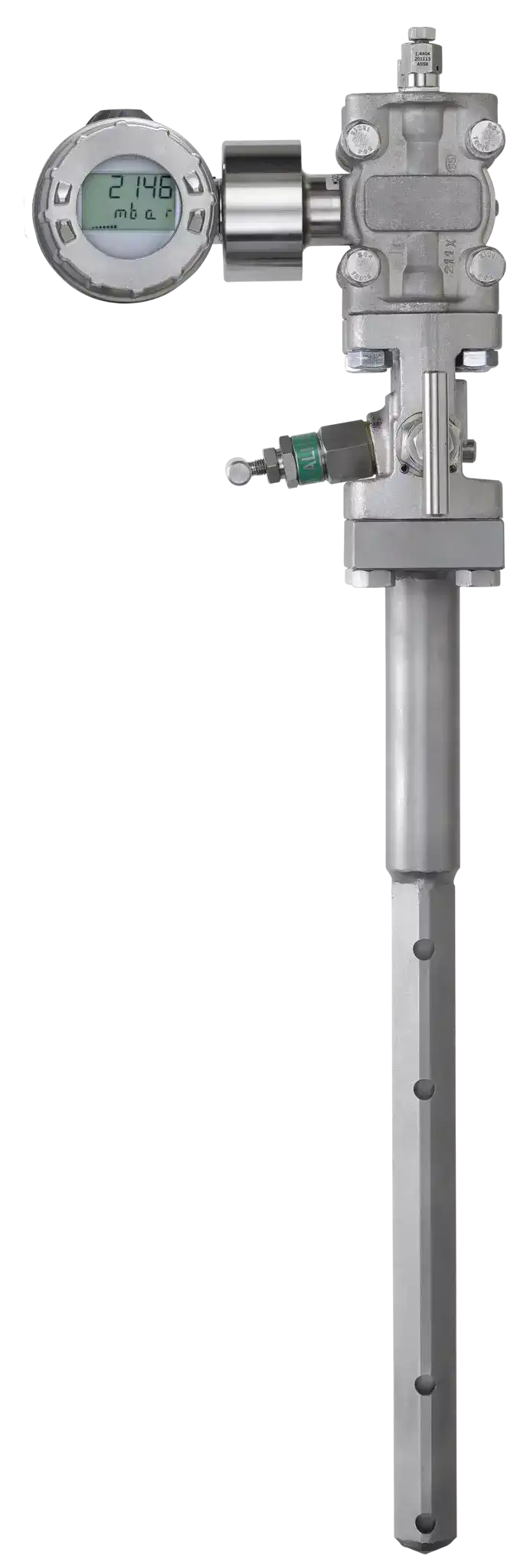

JUMO flowTRANS DP P01/P02/P03/P04
Description
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP P primary element can be used within a wide range of nominal widths, temperatures, and pressures.
Short Description
Flow measurement with pitot tube
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDY0MDI4IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJUeXBlIG9mIGluc3RhbGxhdGlvbiIsInZhbHVlIjoiSW5zZXJ0aW9uIiwic29ydE5vIjowfSx7Im5hbWUiOiJQcm9kdWN0IHZhcmlhbnQiLCJ2YWx1ZSI6IkR5bmFtaWMgcHJlc3N1cmUgcGlwZSIsInNvcnRObyI6MX0seyJuYW1lIjoiTm9taW5hbCB3aWR0aHMiLCJ2YWx1ZSI6IkROIDI1IHRvIEROIDIwMDAiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik5vbWluYWwgcHJlc3N1cmUiLCJ2YWx1ZSI6IlBOIDEwMCIsInNvcnRObyI6M30seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiJNYXguIDExNzXCoMKwQyIsInNvcnRObyI6NH0seyJuYW1lIjoiTWVhc3VyaW5nIGFjY3VyYWN5IiwidmFsdWUiOiIxwqAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSAodW5jZXJ0YWludHkgb2YgdGhlIHByaW1hcnkgZWxlbWVudCkiLCJzb3J0Tm8iOjV9LHsibmFtZSI6Ik1hdGVyaWFscyIsInZhbHVlIjoiMS40NTcxOyAxLjQ0NjI7IEluY29uZWwsIE1vbmVsOyAxLjQ1Mzk7IEhBU1RFTExPWcKuIEM0LCBJbmNvbG95IDgwMDsgUFZERiIsInNvcnRObyI6Nn0seyJuYW1lIjoiVHJhbnNtaXR0ZXIgb3V0cHV0IiwidmFsdWUiOiI0IHRvIDIwwqBtQSwgSEFSVMKuIiwic29ydE5vIjo3fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IlJpbmcgbnV0IHNjcmV3IGNvbm5lY3Rpb24sIGZsYW5nZSIsInNvcnRObyI6OH0seyJuYW1lIjoiU3VpdGFibGUgcHJlc3N1cmUgdHJhbnNtaXR0ZXJzIiwidmFsdWUiOiJUeXBlIDQwNDM4MiBvciA0MDMwMjIiLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJMb3cgcHJlc3N1cmUgbG9zcyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbWluaW1pemUtYWx0IiwiZGVzY3JpcHRpb24iOiJTaG9ydCBpbmxldCBhbmQgb3V0bGV0IHNlY3Rpb25zIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1kYW5nZXIiLCJkZXNjcmlwdGlvbiI6IkZvciBleHRyZW1lIHByZXNzdXJlcyBhbmQgdGVtcGVyYXR1cmVzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik9wdGlvbmFsIGNvbmRlbnNhdGUgdHJhcHMgZm9yIHN0ZWFtIiwic29ydE5vIjowfSx7InRleHQiOiJDb3N0IGJlbmVmaXRzIHdpdGggbGFyZ2Ugbm9taW5hbCB3aWR0aHMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlN1aXRhYmxlIGZvciBmbHVlIGdhcyBhcHBsaWNhdGlvbnMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-check
Description
Low pressure loss
Icon
icon-minimize-alt
Description
Short inlet and outlet sections
Icon
icon-danger
Description
For extreme pressures and temperatures
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=464028
Type of installation
Insertion
Product variant
Dynamic pressure pipe
Nominal widths
DN 25 to DN 2000
Nominal pressure
PN 100
Medium temperature
Max. 1175 °C
Measuring accuracy
1 % of the measured value (uncertainty of the primary element)
Materials
1.4571; 1.4462; Inconel, Monel; 1.4539; HASTELLOY® C4, Incoloy 800; PVDF
Transmitter output
4 to 20 mA, HART®
Process connection
Ring nut screw connection, flange
Suitable pressure transmitters
Type 404382 or 403022
