Produkt Details
SKU
705042
Name

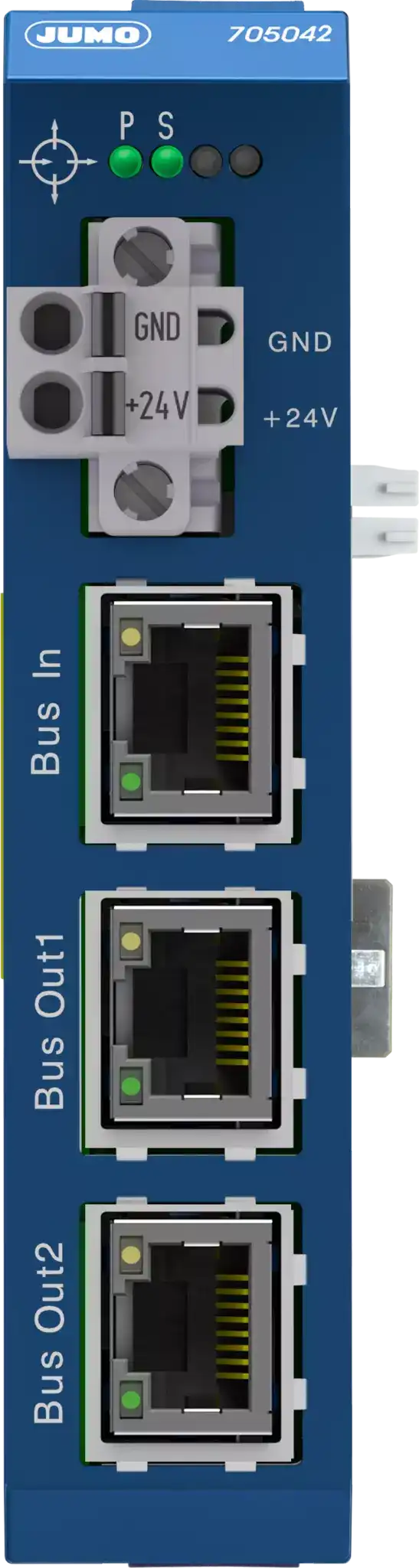

Router module 3-port
Description
With the 3-port router module, you can arrange the JUMO variTRON automation system in a decentralized and free way. It enables input and output modules to be distributed over several DIN rails or control cabinets. A maximum distance of 100 m is possible between 2 router modules or between the central unit and the router module.
Short Description
Module for automation system JUMO variTRON
Price
€372.47
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9ODQwNTYyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJJbnRlcmZhY2VzIiwidmFsdWUiOiIzIFJKNDUgb24gdGhlIGZyb250IHNpZGU6IDEgQnVzIEluIChzeXN0ZW0gYnVzKSwgMiBCdXMgT3V0IChPdXQgMiA9IHN5c3RlbSBidXMpIiwic29ydE5vIjowfSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJEZWNlbnRyYWxpemVkIGFycmFuZ2VtZW50IG9mIHRoZSBtb2R1bGVzIG9mIHRoZSBhdXRvbWF0aW9uIHN5c3RlbSB3aXRoIGEgZGlzdGFuY2Ugb2YgdXAgdG8gMTAwIG1ldGVycyBiZXR3ZWVuIG11bHRpZnVuY3Rpb24gcGFuZWxzLCBiYXNpYyBtb2R1bGVzL3JvdXRlciBtb2R1bGVzLCBhZGRyZXNzaW5nIHZpYSByb3RhcnkgY29kaW5nIHN3aXRjaCBmb3Igc3BlY2lhbCBhcHBsaWNhdGlvbnMsIGdhbHZhbmljIGlzb2xhdGlvbiBvZiB0aGUgaW50ZXJmYWNlcyBvbiB0aGUgZnJvbnQsIHN1cHBseSBvZiBvcGVyYXRpbmcgdm9sdGFnZSwgZmFzdCB3aXJpbmcgb2Ygb3BlcmF0aW5nIHZvbHRhZ2UgYW5kIHN5c3RlbSBidXMgcHJvdmlkZWQgYnkgc2ltcGxlIG1vZHVsZSBjb25uZWN0aW9uIHByaW5jaXBsZSIsInNvcnRObyI6MX0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IkRDIDI0IFYgKzI1Ly0yMCAlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJIb3VzaW5nIiwidmFsdWUiOiJQbGFzdGljIGhvdXNpbmcgZm9yIERJTi1yYWlsIG1vdW50aW5nIGluIHRoZSBjb250cm9sIGNhYmluZXQiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkRpbWVuc2lvbnMgKFcgw5cgSCDDlyBEKSIsInZhbHVlIjoiMjIuNSB4IDEwMy42IHggMTAxLjUgbW0iLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVAyMCIsInNvcnRObyI6NX0seyJuYW1lIjoiQW1iaWVudCB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTIwIHRvICs1NSDCsEMiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiVUwiLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWZsb3ctdHJlZSIsImRlc2NyaXB0aW9uIjoiU3VwcG9ydHMgZGVjZW50cmFsaXplZCBtb2R1bGUgYXNzaWdubWVudCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tcGx1ZyIsImRlc2NyaXB0aW9uIjoiU3VwcGx5IG9mIG9wZXJhdGluZyB2b2x0YWdlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jbG9jayIsImRlc2NyaXB0aW9uIjoiRmFzdCB3aXJpbmciLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiMyBzeXN0ZW0gYnVzIGNvbm5lY3Rpb25zIiwic29ydE5vIjowfSx7InRleHQiOiJHYWx2YW5pY2FsbHkgaXNvbGF0ZWQgaW50ZXJmYWNlcyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiVm9sdGFnZSBzdXBwbHkgb3V0cHV0Iiwic29ydE5vIjoyfV19
title
Icon
icon-flow-tree
Description
Supports decentralized module assignment
Icon
icon-plug
Description
Supply of operating voltage
Icon
icon-clock
Description
Fast wiring
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=840562
Interfaces
3 RJ45 on the front side: 1 Bus In (system bus), 2 Bus Out (Out 2 = system bus)
Special features
Decentralized arrangement of the modules of the automation system with a distance of up to 100 meters between multifunction panels, basic modules/router modules, addressing via rotary coding switch for special applications, galvanic isolation of the interfaces on the front, supply of operating voltage, fast wiring of operating voltage and system bus provided by simple module connection principle
Voltage supply
DC 24 V +25/-20 %
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Dimensions (W × H × D)
22.5 x 103.6 x 101.5 mm
Protection type
IP20
Ambient temperature
-20 to +55 °C
Approvals
UL
