Produkt Details
SKU
705025
Name

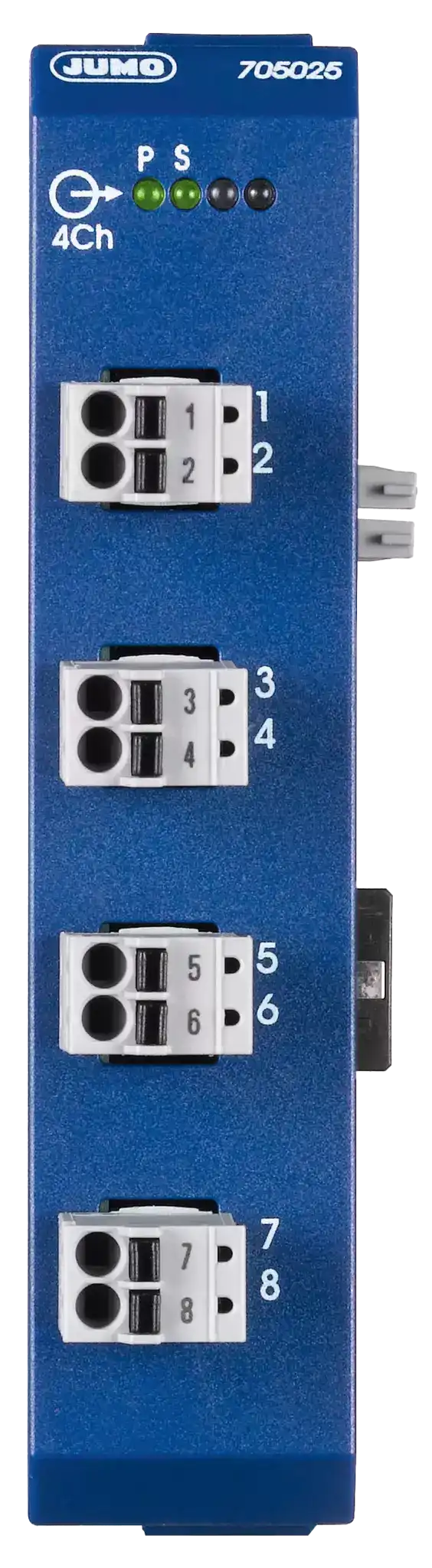

JUMO mTRON T
Description
The analog output module 4-channel is equipped with 4 outputs. The output signal, 0(2) to 10 V or 0(4) to 20 mA, can be configured individually for each channel. The analog outputs are controlled via the system bus.
Short Description
Analog output module 4-channel
Price
€419.87
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTk0OTYyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJPdXRwdXQgc2lnbmFsIiwidmFsdWUiOiIwKDQpIHRvIDIwIG1BIG9yIDAoMikgdG8gMTDCoFYgKGNvbmZpZ3VyYWJsZSBwZXIgY2hhbm5lbCkiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik51bWJlciBvZiBhbmFsb2cgb3V0cHV0cyIsInZhbHVlIjoiNCIsInNvcnRObyI6MX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiQ29uZmlndXJhYmxlIGJlaGF2aW9yIGluIHRoZSBldmVudCBvZiBtYWxmdW5jdGlvbiwgYXV0b21hdGljIGNvbmZpZ3VyYXRpb24gYWZ0ZXIgcmVwbGFjZW1lbnQgb2YgdGhlIG1vZHVsZSBpbnNlcnQgKGhvdCBzd2FwIGNhcGFibGUpLCBjb25uZWN0aW9uIG9mIG91dHB1dHMgb24gdGhlIGZyb250LCBmYXN0IHdpcmluZyBvZiBvcGVyYXRpbmcgdm9sdGFnZSBhbmQgc3lzdGVtIGJ1cyBwcm92aWRlZCBieSBzaW1wbGUgbW9kdWxlIGNvbm5lY3Rpb24gcHJpbmNpcGxlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJDb25uZWN0aW9ucyIsInZhbHVlIjoiUmVtb3ZhYmxlIHRlcm1pbmFsIHN0cmlwcyB3aXRoIFBVU0ggSU4gdGVjaG5vbG9neSBvbiB0aGUgZnJvbnQiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiVUwsIEROViBHTCIsInNvcnRObyI6NH0seyJuYW1lIjoiSG91c2luZyIsInZhbHVlIjoiUGxhc3RpYyBob3VzaW5nIGZvciBESU4tcmFpbCBtb3VudGluZyBpbiB0aGUgY29udHJvbCBjYWJpbmV0Iiwic29ydE5vIjo1fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQMjAiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFtYmllbnQgdGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6Ii0yMCB0byArNTXCoMKwQyIsInNvcnRObyI6N30seyJuYW1lIjoiRGltZW5zaW9ucyAoV8Kgw5fCoEjCoMOXwqBEKSIsInZhbHVlIjoiMjIuNSBtbcKgw5fCoDEwMy42IG1twqDDl8KgMTAxLjUgbW0gKHdpdGhvdXQgY29ubmVjdGlvbiBlbGVtZW50cykiLCJzb3J0Tm8iOjh9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWtleWJvYXJkIiwiZGVzY3JpcHRpb24iOiJDb25maWd1cmFibGUgYmVoYXZpb3IgaW4gdGhlIGV2ZW50IG9mIG1hbGZ1bmN0aW9uIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi11bmxvY2siLCJkZXNjcmlwdGlvbiI6IlJlbW92YWJsZSB0ZXJtaW5hbCBzdHJpcHMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiJDb25uZWN0aW9uIG9mIG91dHB1dHMgb24gdGhlIGZyb250IiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IjQgYW5hbG9nIG91dHB1dHMgKHVzZXIgY29uZmlndXJhYmxlKSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiMCgyKSB0byAxMMKgVjsgMCg0KSB0byAyMMKgbUEgb3V0cHV0Iiwic29ydE5vIjoxfSx7InRleHQiOiJBbWJpZW50IHRlbXBlcmF0dXJlOiAtMjDCoHRvwqArNTXCoMKwQyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-keyboard
Description
Configurable behavior in the event of malfunction
Icon
icon-unlock
Description
Removable terminal strips
Icon
icon-anschluesse
Description
Connection of outputs on the front
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=194962
Output signal
0(4) to 20 mA or 0(2) to 10 V (configurable per channel)
Number of analog outputs
4
Special features
Configurable behavior in the event of malfunction, automatic configuration after replacement of the module insert (hot swap capable), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle
Connections
Removable terminal strips with PUSH IN technology on the front
Approvals
UL, DNV GL
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Protection type
IP20
Ambient temperature range
-20 to +55 °C
Dimensions (W × H × D)
22.5 mm × 103.6 mm × 101.5 mm (without connection elements)
