Produkt Details
SKU
705043
Name

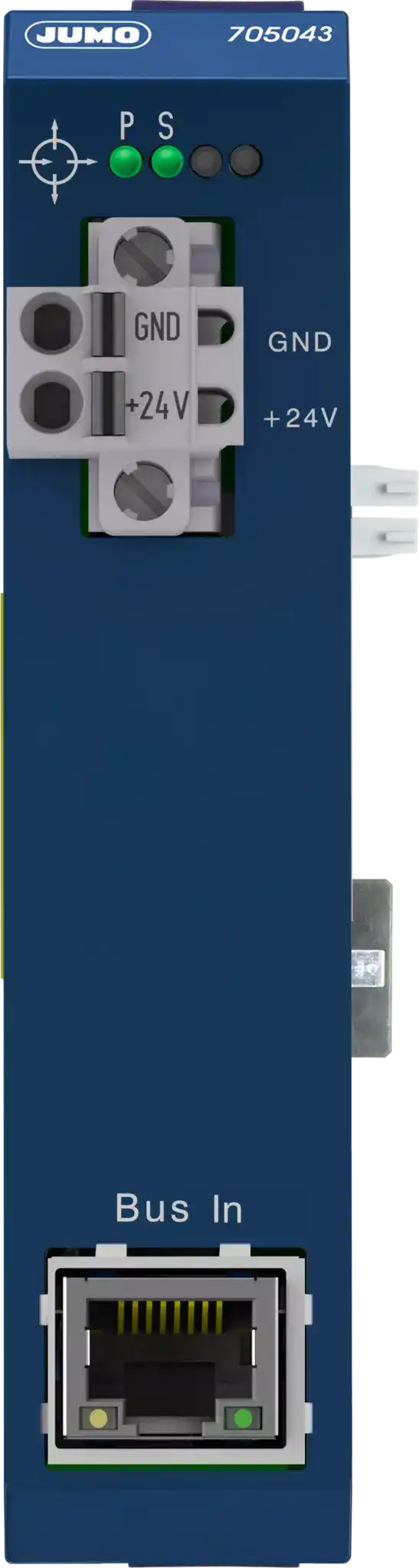

Router module 1-port
Description
The router module 1-port is a system component of the JUMO variTRON automation system. The module 1-port is primarily used together with a variTRON 300 central processing unit. It laterally provides the system bus output and power supply for connecting the input and output modules.
Short Description
Module for automation system JUMO variTRON
Price
€109.03
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9OTI0NDk5IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJJbnRlcmZhY2VzIiwidmFsdWUiOiIxIFJKNDUgb24gdGhlIGZyb250IHNpZGU6IDEgQnVzIEluIChzeXN0ZW0gYnVzKSwgMSBCdXMgT3V0IChPdXQgMiA9IHN5c3RlbSBidXMpIiwic29ydE5vIjowfSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJjb21wYXRpYmxlIHdpdGggSlVNTyB2YXJpVFJPTiBmcm9tIHN5c3RlbSB2ZXJzaW9uIDQsIGNvbm5lY3RzIHRoZSB2YXJpVFJPTiAzMDAgY2VudHJhbCBwcm9jZXNzaW5nIHVuaXQgKGF2YWlsYWJsZSBmcm9tIHN5c3RlbSB2ZXJzaW9uIDYpIHRvIHRoZSBtb2R1bGVzLCBhbHRlcm5hdGl2ZWx5IGFsc28gc3VwcG9ydHMgZGVjZW50cmFsaXplZCBtb2R1bGUgYXJyYW5nZW1lbnQsIGZpcnN0IG1vZHVsZSBvbiBhbiBhZGRpdGlvbmFsIERJTiByYWlsIGZvciBjb25uZWN0aW5nIGZ1cnRoZXIgbW9kdWxlcywgZWxlY3RyaWNhbCBpc29sYXRpb24gb2YgdGhlIHN5c3RlbSBidXMgY29ubmVjdGlvbiwgc3VwcGx5IG9mIG9wZXJhdGluZyB2b2x0YWdlLCBmYXN0IHdpcmluZyBvZiBvcGVyYXRpbmcgdm9sdGFnZSBhbmQgc3lzdGVtIGJ1cyBieSBzaW1wbHkgcGx1Z2dpbmcgdGhlIG1vZHVsZXMgdG9nZXRoZXIiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJEQyAyNCBWICsyNS8tMjAgJSBTRUxWIiwic29ydE5vIjoyfSx7Im5hbWUiOiJIb3VzaW5nIiwidmFsdWUiOiJQbGFzdGljIGhvdXNpbmcgZm9yIERJTi1yYWlsIG1vdW50aW5nIGluIHRoZSBjb250cm9sIGNhYmluZXQiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkRpbWVuc2lvbnMgKFcgw5cgSCDDlyBEKSIsInZhbHVlIjoiMjIuNSB4IDEwMSB4IDIzLDkgbW0iLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVAyMCIsInNvcnRObyI6NX0seyJuYW1lIjoiQW1iaWVudCB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTIwIHRvICs1NSDCsEMiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiVUwiLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiJDb25uZWN0aW9uIHRvIEpVTU8gdmFyaVRST04gMzAwIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1wbHVnIiwiZGVzY3JpcHRpb24iOiJTdXBwbHkgb2Ygb3BlcmF0aW5nIHZvbHRhZ2UiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNsb2NrIiwiZGVzY3JpcHRpb24iOiJGYXN0IHdpcmluZyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiIxIHN5c3RlbSBidXMgY29ubmVjdGlvbiIsInNvcnRObyI6MH0seyJ0ZXh0IjoiR2FsdmFuaWNhbGx5IGlzb2xhdGVkIGludGVyZmFjZXMiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlZvbHRhZ2Ugc3VwcGx5IG91dHB1dCIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-anschluesse
Description
Connection to JUMO variTRON 300
Icon
icon-plug
Description
Supply of operating voltage
Icon
icon-clock
Description
Fast wiring
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=924499
Interfaces
1 RJ45 on the front side: 1 Bus In (system bus), 1 Bus Out (Out 2 = system bus)
Special features
compatible with JUMO variTRON from system version 4, connects the variTRON 300 central processing unit (available from system version 6) to the modules, alternatively also supports decentralized module arrangement, first module on an additional DIN rail for connecting further modules, electrical isolation of the system bus connection, supply of operating voltage, fast wiring of operating voltage and system bus by simply plugging the modules together
Voltage supply
DC 24 V +25/-20 % SELV
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Dimensions (W × H × D)
22.5 x 101 x 23,9 mm
Protection type
IP20
Ambient temperature
-20 to +55 °C
Approvals
UL
