SKU
709066
Name

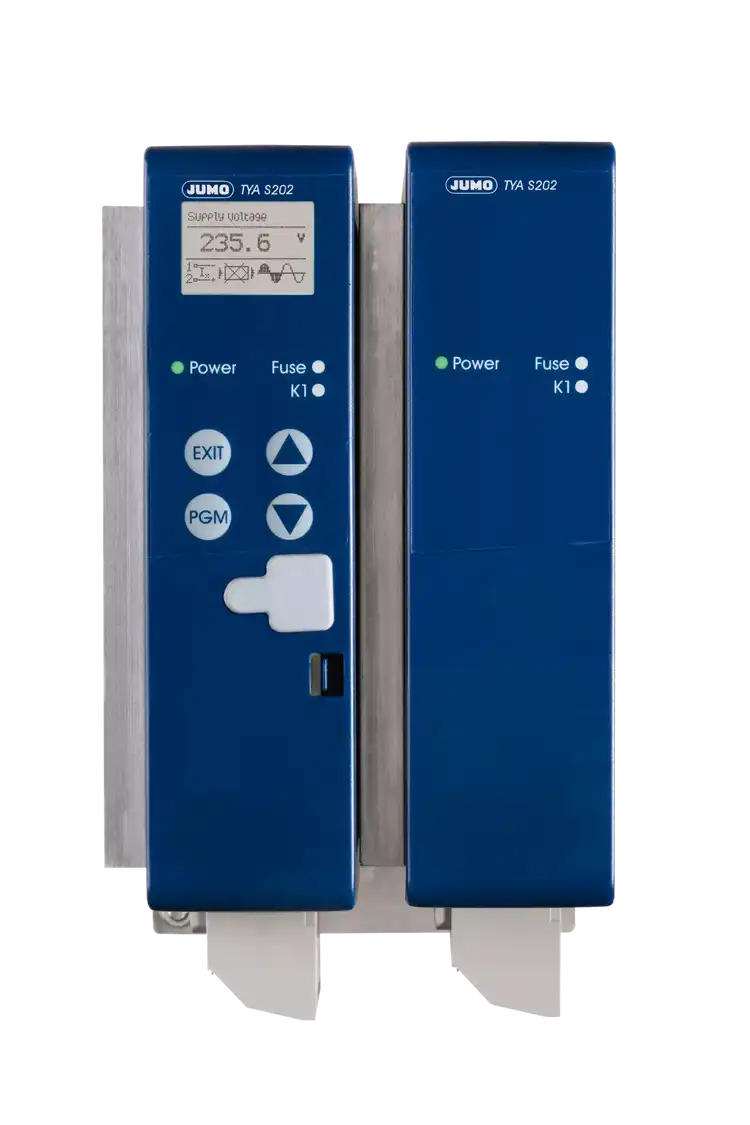

JUMO TYA S202
Description
The JUMO TYA S202 switches three-phase resistive inductive loads in a three-phase economy circuit. The thyristor power controller is used to switch larger resistive and inductive loads such as in furnace construction.
Short Description
Three-phase thyristor power controller for burst-firing operation in economy circuit
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX2hnMjRnOXRldWQ0b2o5OXJnbHQ3NHFuazQ1P2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiNzA5MDY1XzY2X1RZQV9TMjAxX1MyMDJfREUubXA0IiwidGh1bWJuYWlsVXJsIjoiaHR0cHM6Ly9kbzJwMXE5Yjkyc2dwLmNsb3VkZnJvbnQubmV0L3JlbmRpdGlvbi8zNTM2MDQ4ODQzMTkvdmlkZW9faGcyNGc5dGV1ZDRvajk5cmdsdDc0cW5rNDUvLUZXRUJQIiwic29ydCI6MH0seyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX2dhZXQ1YWZrMDk1YmQ1MWQxYmJuMTJpcDFsP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiNzA5MDY1XzY2X1RZQV9TMjAxX1MyMDJfRU4ubXA0IiwidGh1bWJuYWlsVXJsIjoiaHR0cHM6Ly9kbzJwMXE5Yjkyc2dwLmNsb3VkZnJvbnQubmV0L3JlbmRpdGlvbi8zNTM2MDQ4ODQzMTkvdmlkZW9fZ2FldDVhZmswOTViZDUxZDFiYm4xMmlwMWwvLUZXRUJQIiwic29ydCI6MH1dLCJkYXRhU2hlZXRVcmwiOiJodHRwczovL3d3dy5qdW1vLm5ldC9hdHRhY2htZW50cy9KVU1PL2F0dGFjaG1lbnRkb3dubG9hZD9pZD03MDA2NTAiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6IkxvYWQgdm9sdGFnZSIsInZhbHVlIjoiNDAwwqBWLCA0NjDCoFYsIDUwMMKgViIsInNvcnRObyI6MH0seyJuYW1lIjoiTG9hZCBjdXJyZW50cyIsInZhbHVlIjoiMjDCoEEsIDMywqBBLCA1MMKgQSwgMTAwwqBBLCAxNTDCoEEsIDIwMMKgQSwgMjUwwqBBIiwic29ydE5vIjoxfSx7Im5hbWUiOiJMb2FkIHR5cGUiLCJ2YWx1ZSI6IlJlc2lzdGl2ZSBhbmQgcmVzaXN0aXZlIGluZHVjdGl2ZSBsb2FkcywgaW4gdGhlIGNhc2Ugb2YgdHJhbnNmb3JtZXIgbG9hZHMsIHRoZSBub21pbmFsIGluZHVjdGlvbiBvZiAxLjIgdGVzbGEgbXVzdCBub3QgYmUgZXhjZWVkZWQgKHZhbHVlIGlzIDEuNDXCoFQgaW4gdGhlIGNhc2Ugb2YgbWFpbnMgb3ZlcnZvbHRhZ2UpLiIsInNvcnRObyI6Mn0seyJuYW1lIjoiT3BlcmF0aW5nIG1vZGVzIiwidmFsdWUiOiJCdXJzdC1maXJpbmcgb3BlcmF0aW9uIiwic29ydE5vIjozfSx7Im5hbWUiOiJDb25maWd1cmF0aW9uIiwidmFsdWUiOiJTZXR1cC9VU0ItcG93ZXJlZDsgcGxhaW4gdGV4dCBkaXNwbGF5IG9uIHRoZSBkZXZpY2UiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IlRyYW5zZmVyIG9mIHRoZSBzZXR1cCBkYXRhIHBvc3NpYmxlIGV2ZW4gd2l0aG91dCB2b2x0YWdlIHN1cHBseSB0byB0aGUgZGV2aWNlIChVU0IgcG9ydCBzdXBwbHkpLCBuZXR3b3JrIGxvYWQgb3B0aW1pemF0aW9uIHRocm91Z2ggZHVhbCBlbmVyZ3kgbWFuYWdlbWVudCwgc29mdCBzdGFydCBmdW5jdGlvbiB3aXRoIHB1bHNlIGdyb3VwcywgbG9hZCBtb25pdG9yaW5nIGZvciB0aGUgZGV0ZWN0aW9uIG9mIHBhcnRpYWwgbG9hZCBmYWlsdXJlIG9yIGxvYWQgc2hvcnQgY2lyY3VpdCBcIlRlYWNoLUluXCIsIGludGVncmF0ZWQgZGlhZ25vc2lzIHN5c3RlbXMsIHN1Y2ggYXMgcm90YXJ5IGZpZWxkIGRldGVjdGlvbiIsInNvcnRObyI6NX0seyJuYW1lIjoiQXBwcm92YWwiLCJ2YWx1ZSI6IlVMIDUwOCIsInNvcnRObyI6Nn0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDIwIiwic29ydE5vIjo3fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1jb21wdXRlciIsImRlc2NyaXB0aW9uIjoiTENEIGRpc3BsYXkgd2l0aCBpbmZvIGxpbmUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXN0YWNrcyIsImRlc2NyaXB0aW9uIjoiQ2xvc2UgbW91bnRpbmcgcG9zc2libGUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXVzYiIsImRlc2NyaXB0aW9uIjoiU2V0dXAgcHJvZ3JhbSB2aWEgVVNCIGludGVyZmFjZSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJUaHJlZS1waGFzZSBlY29ub215IGNpcmN1aXQiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IkxvYWQgdm9sdGFnZSA0MDDCoFYsIDQ2MMKgViwgNTAwwqBWIiwic29ydE5vIjoxfSx7InRleHQiOiJQUk9GSU5FVCBvciBSUzQyMi9SUzQ4NSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-computer
Description
LCD display with info line
Icon
icon-stacks
Description
Close mounting possible
Icon
icon-usb
Description
Setup program via USB interface
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=700650
Load voltage
400 V, 460 V, 500 V
Load currents
20 A, 32 A, 50 A, 100 A, 150 A, 200 A, 250 A
Load type
Resistive and resistive inductive loads, in the case of transformer loads, the nominal induction of 1.2 tesla must not be exceeded (value is 1.45 T in the case of mains overvoltage).
Operating modes
Burst-firing operation
Configuration
Setup/USB-powered; plain text display on the device
Special features
Transfer of the setup data possible even without voltage supply to the device (USB port supply), network load optimization through dual energy management, soft start function with pulse groups, load monitoring for the detection of partial load failure or load short circuit "Teach-In", integrated diagnosis systems, such as rotary field detection
Approval
UL 508
Protection type
IP20
