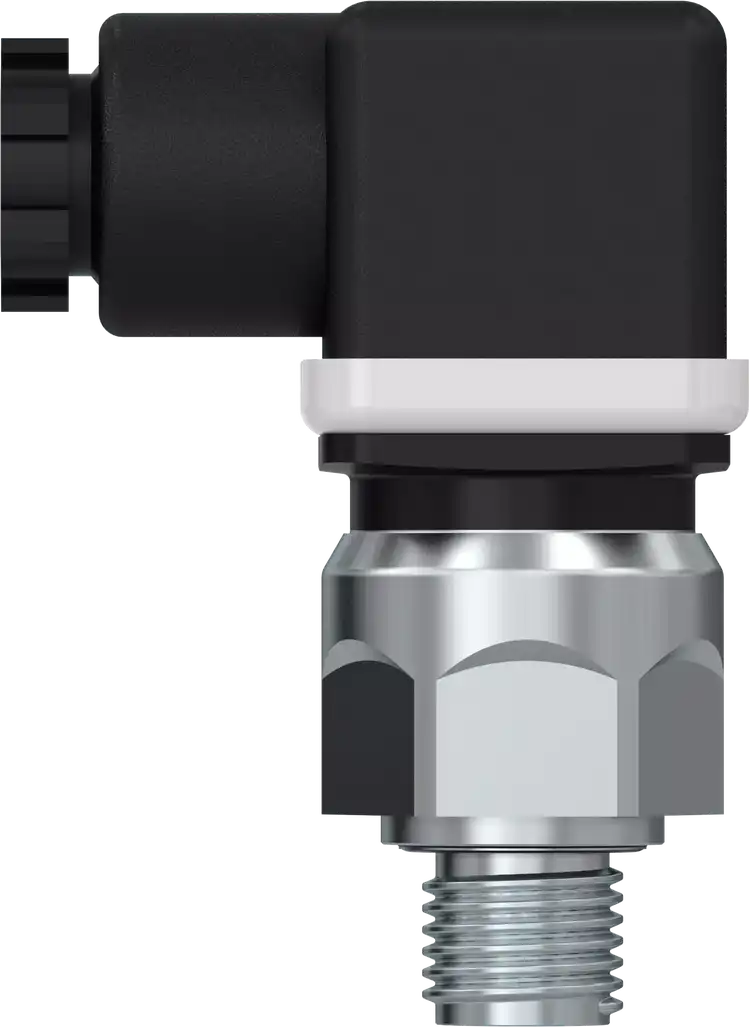

JUMO MIDAS C12 CA
Description
The JUMO MIDAS C12 CA is designed as a pressure transmitter especially for requirements in the field of compressor pressure measurement. The ceramic sensor detects relative pressures which provides a reliable and long-term stable signal.
Short Description
Pressure transmitter − Compressed Air
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3I4ZW1zZDFxMHQ0MnIxNGl2YmNydjNjMzJ2P2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiNDAxMDE0X01JREFTX0MxMl9DQV9ERS5tcDQiLCJ0aHVtYm5haWxVcmwiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvcmVuZGl0aW9uLzM1MzYwNDg4NDMxOS92aWRlb19yOGVtc2QxcTB0NDJyMTRpdmJjcnYzYzMydi8tRldFQlAiLCJzb3J0IjowfV0sImRhdGFTaGVldFVybCI6Imh0dHBzOi8vd3d3Lmp1bW8ubmV0L2F0dGFjaG1lbnRzL0pVTU8vYXR0YWNobWVudGRvd25sb2FkP2lkPTExNTk1NTciLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6Ik1lYXN1cmluZyByYW5nZSIsInZhbHVlIjoiMCB0bzE2IGJhciwgMCB0bzEwIGJhciwgLTEgdG8gKzE1IGJhciwgLTEgdG8gICs5IGJhciIsInNvcnRObyI6MH0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJHIDEvNCBESU4gMzg1Mi0xMSIsInNvcnRObyI6MX0seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiI0wqB+wqAyMMKgbUEsIHR3byB3aXJlcyIsInNvcnRObyI6Mn0seyJuYW1lIjoibG9uZy10ZXJtIHN0YWJpbGl0eSIsInZhbHVlIjoiMC4zICUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik1hdGVyaWFsIFByb2Nlc3MgQ29ubmVjdGlvbi9Ib3VzaW5nIiwidmFsdWUiOiJBbHVtaW51bSBvciBzdGFpbmxlc3Mgc3RlZWwiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkVsZWN0cmljYWwgY29ubmVjdGlvbiIsInZhbHVlIjoiUGx1ZyBjb25uZWN0aW9uIERJTiBFTiAxNzUzMDEtODAzLCBmb3JtIEEiLCJzb3J0Tm8iOjV9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJDdXN0b20gZml0IGRlc2lnbiBmb3IgY29tcHJlc3NvciBhcmVhIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6Ik5vIHNlcnZpY2Ugb3IgbWFpbnRlbmFuY2UgcmVxdWlyZWQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrbGlzdCIsImRlc2NyaXB0aW9uIjoiU2ltcGxlIHN0YXJ0dXAgZHVlIHRvIHN0YW5kYXJkaXphdGlvbiIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJsb25nLXRlcm0gc3RhYmlsaXR5Iiwic29ydE5vIjowfSx7InRleHQiOiJwcmVjaXNpb24iLCJzb3J0Tm8iOjF9LHsidGV4dCI6Im9wdGltaXplZCBjb3N0Iiwic29ydE5vIjoyfV19
title
Icon
icon-check
Description
Custom fit design for compressor area
Icon
icon-wranch
Description
No service or maintenance required
Icon
icon-checklist
Description
Simple startup due to standardization
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1159557
Measuring range
0 to16 bar, 0 to10 bar, -1 to +15 bar, -1 to +9 bar
Process connection
G 1/4 DIN 3852-11
Output
4 ~ 20 mA, two wires
long-term stability
0.3 %
Material Process Connection/Housing
Aluminum or stainless steel
Electrical connection
Plug connection DIN EN 175301-803, form A
