Produkt Details

SKU

902030

Name

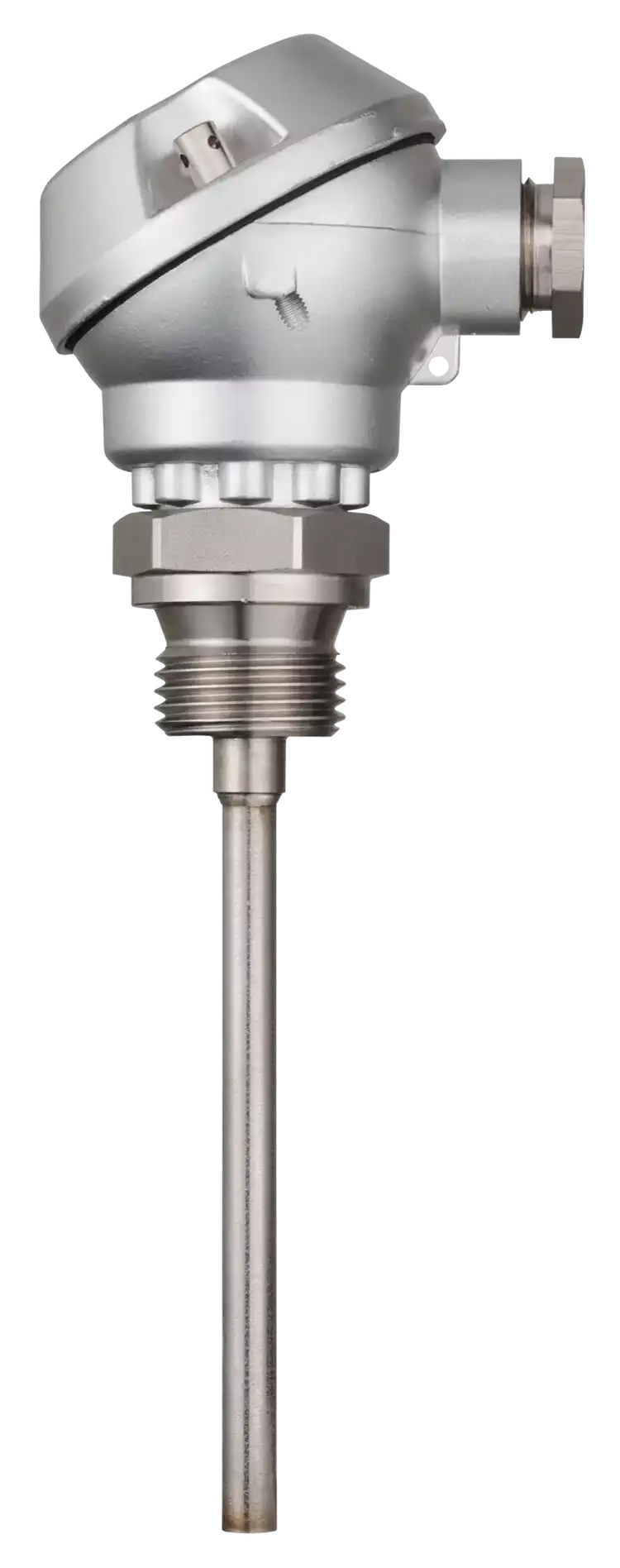

Screw-in RTD temperature probe

Description

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases. The installation type enables the formation of reliable seals for both vacuum and overpressure applications.

Short Description

With terminal head form J

Availability

In Stock

Images

•

State

TOP_SELLER

Variants

Process connection

• Screw connection G 1/2 ✓
• Screw connection G 1/4 ✓
• Screw connection G 3/8 ✓

Diameter prot. tube

• 6mm ✓
• 7mm ✓
• 8mm ✓

Insertion length

• 100 mm ✓
• 150 mm ✓
• 200,00 ✓
• 250 mm ✓
• 300 mm ✓
• 400,00 ✓
• 450,00 ✓
• 50 mm ✓
• 500,00 ✓
• 65 mm ✓
• 80,00 ✓

Measuring insert

• 1x NTC 3K ✓
• 1x Pt100 in 2-wire circuit ✓
• 1x Pt100 in 3-wire circuit ✓
• 1x Pt1000 in 2-wire circuit ✓
• 2x Pt100 in 2-wire circuit ✓

Operating temperature in °C

• -20..+150°C (only in connection with class B and 1x Pt100/1x Pt1000 in 2-wire circuit) ✓
• -50 to 200 °C ✓
• -50 to 400 °C ✓
• -50..150°C ✓
• -50..260°C ✓
• -70..260°C ✓

Tolerance class

• Class A ✓
• Class B ✓

Basic type

• Screw-in RTD temperature probe with terminal head Form J, with continuous thermowell ✓
• Screw-in RTD temperature probe with terminal head Form J, with stepped thermowell for air measurement ✓

Extra code terminal head

• Terminal head form J blue ✓
• Without extra code ✓

Extra code transmitter

• 1x analog transmitter, output 4..20mA ✓
• Without extra code ✓
