Produkt Details

SKU

902440

Name

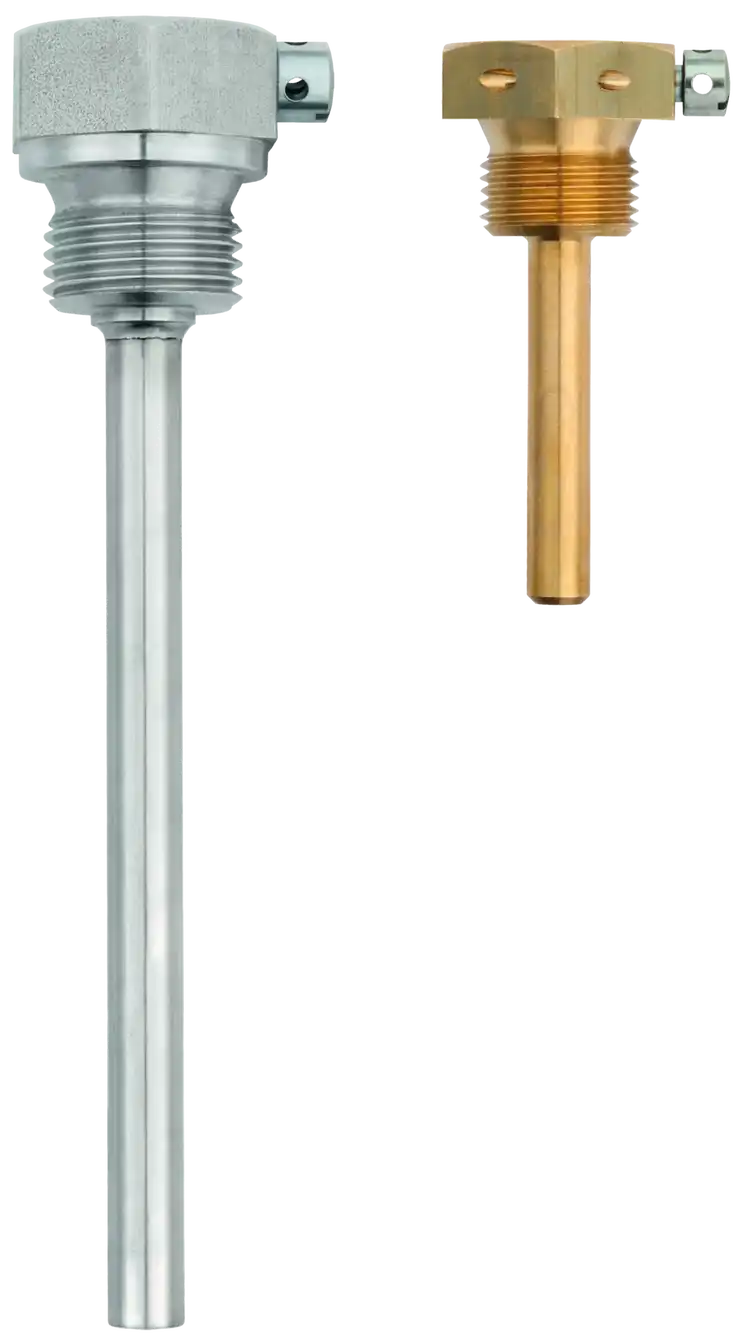

Thermowells

Description

Thermowells are used for replacement of the RTD temperature probes without emptying the system and/or pressure resistance. Shorter thermowells are mostly screwed into T-pieces while longer design types are screwed into special welded sockets or welded directly in the pipe wall.

Short Description

for heat meter temperature probes

Availability

In Stock

Images

•

State

LIVE

Variants

Process connection

• Screw connection G 1/2 ✓
• Screw connection G 1/4 ✓

Tube inner diameter

• 5.200000000000000E+00 ✓
• 6,2 mm ✓
• 6.200000000000000E+00 ✓

Fitting length of pocket

• 1.200000000000000E+02 ✓
• 1.550000000000000E+02 ✓
• 147,5 mm (fitting length = 148 mm) ✓
• 210 mm (fitting length = 223 mm) ✓
• 3.500000000000000E+01 ✓
• 4.000000000000000E+01 ✓
• 5.000000000000000E+01 ✓
• 8.500000000000000E+01 ✓
• 9.250000000000000E+01 ✓

Basic type

• 902440/41 ✓
• Screw-in pocket with inner thread 1/4 and sealing sheet, A-Ø 8mm, I-Ø 6,15mm, app. to 180°C, PN = max. 40bar ✓
• Screw-in pocket with sealing screw, outer Ø 8mm, inner Ø max. 6,2mm, app. to 200°C, PN = max. 40bar ✓
• Screw-in pocket with sealing screw, straight prot. tube, approved for up to 90°C, PN = max. 25bar ✓

Protection tube material

• CrNi (stainless steel) ✓
• CuZn (brass) ✓
