Produkt Details
SKU
401012
Name

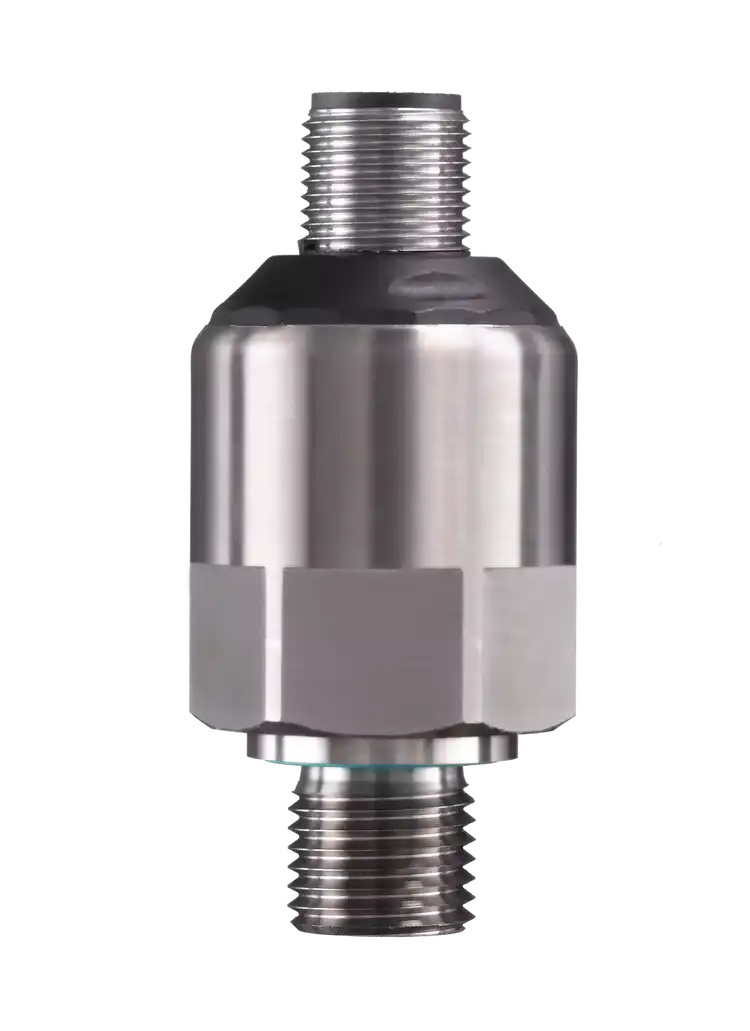

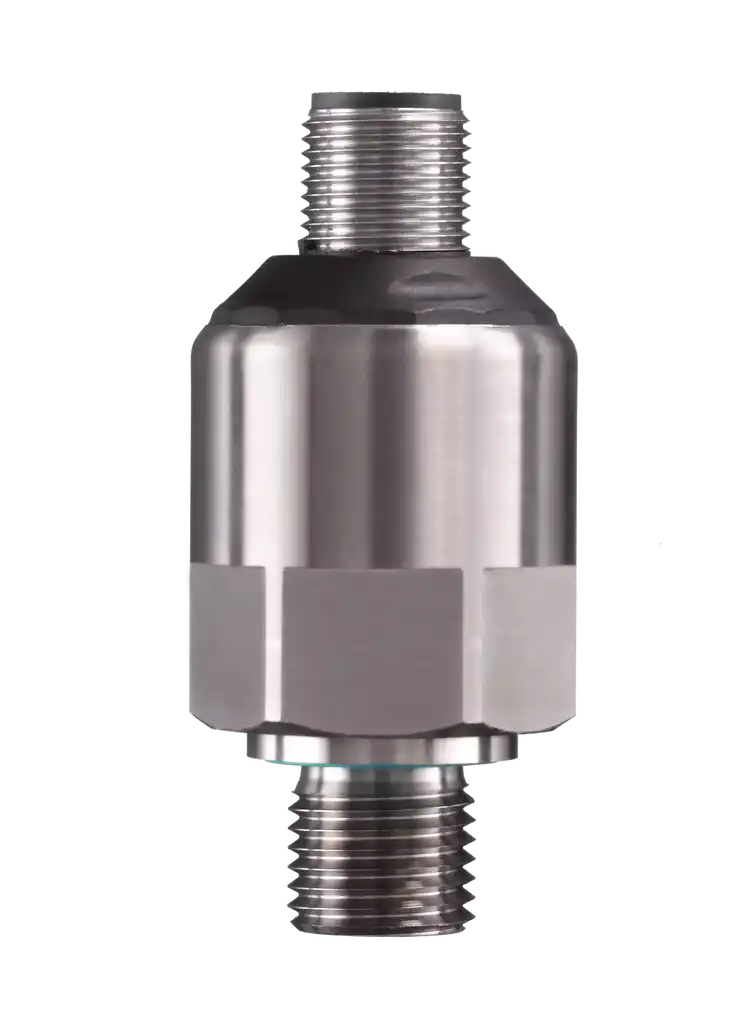

JUMO MIDAS C18 SW
Description
This pressure transmitter features a hysteresis-free ceramic measuring cell and a titanium case. This protects it against organic acids and solutions containing chloride. It is used in particular in ship building and laboratory engineering.
Short Description
OEM pressure transmitter for seawater applications
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTk5ODAiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6IklucHV0IiwidmFsdWUiOiItMcKgdG/CoCsxMDDCoGJhciByZWxhdGl2ZSBwcmVzc3VyZSIsInNvcnRObyI6MH0seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiI0wqB0b8KgMjDCoG1BIHR3by13aXJlOyBEQyAwwqB0b8KgMTDCoFYgdGhyZWUtd2lyZSIsInNvcnRObyI6MX0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMjAgdG8gKzEyNcKgwrBDIiwic29ydE5vIjoyfSx7Im5hbWUiOiJBY2N1cmFjeSAobGluZWFyaXR5KSIsInZhbHVlIjoiMC4yNcKgdG/CoDAuM8KgJSIsInNvcnRObyI6M30seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJBbGwgc2NyZXcgY29ubmVjdGlvbnMgdGhhdCBhcmUgc3RhbmRhcmQgaW4gdGhlIGluZHVzdHJ5Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgc3lzdGVtIiwidmFsdWUiOiJUaGljayBmaWxtIG9uIGNlcmFtaWMgYm9kaWVzIChwaWV6b3Jlc2lzdGl2ZSkiLCJzb3J0Tm8iOjV9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWFkZCIsImRlc2NyaXB0aW9uIjoiTm8gZmlsbGluZyBvaWwgbGVha3MgaW4gdGhlIGV2ZW50IG9mIGEgYnVyc3QiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXRocmVlLWQiLCJkZXNjcmlwdGlvbiI6IkNvbXBhY3QgZGVzaWduIHR5cGUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLW1vbml0b3IiLCJkZXNjcmlwdGlvbiI6IkxvbmctdGVybSBzdGFiaWxpdHkgPMKgMC4ywqAlIG9mIGVuZCB2YWx1ZSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IC0xIHRvICsxMDDCoGJhciByZWxhdGl2ZSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiVmlicmF0aW9uIHJlc2lzdGFuY2UiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkVsYXN0b21lciBzZWFsIiwic29ydE5vIjoyfV19
title
Icon
icon-add
Description
No filling oil leaks in the event of a burst
Icon
icon-three-d
Description
Compact design type
Icon
icon-monitor
Description
Long-term stability < 0.2 % of end value
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=19980
Input
-1 to +100 bar relative pressure
Output
4 to 20 mA two-wire; DC 0 to 10 V three-wire
Medium temperature
-20 to +125 °C
Accuracy (linearity)
0.25 to 0.3 %
Process connection
All screw connections that are standard in the industry
Measuring system
Thick film on ceramic bodies (piezoresistive)
