Overview
title
Produkt Details
SKU
406050
Name

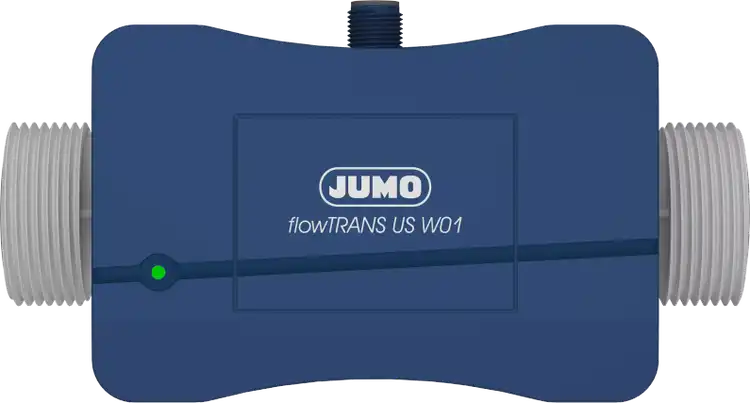

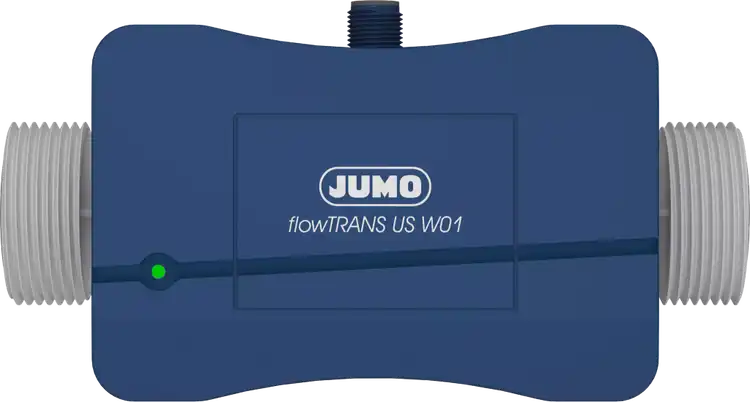

JUMO flowTRANS US W01
Description
The flowmeter measures precisely in conductive and non-conductive media. Ultrasonic technology allows it to be absolutely free of wear and maintenance. Its metal-free housing and the plastic pipe in various nominal widths allow it to be used in a flexible manner – even when dealing with corrosive media.
Short Description
Ultrasonic flowmeter for liquids
Availability
In Stock
Images
State
TOP_SELLER
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3NpMGlzcDhlcTkyN2hmNTExNTFmMTdrcTFsP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiNDA2MDUwX2Zsb3dUUkFOU19VU19ERS5tcDQiLCJ0aHVtYm5haWxVcmwiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvcmVuZGl0aW9uLzM1MzYwNDg4NDMxOS92aWRlb19zaTBpc3A4ZXE5MjdoZjUxMTUxZjE3a3ExbC8tRldFQlAiLCJzb3J0IjowfV0sImRhdGFTaGVldFVybCI6Imh0dHBzOi8vd3d3Lmp1bW8ubmV0L2F0dGFjaG1lbnRzL0pVTU8vYXR0YWNobWVudGRvd25sb2FkP2lkPTkzNjc0NCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHByaW5jaXBsZSIsInZhbHVlIjoiVWx0cmFzb25pYyAodHJhbnNpdCB0aW1lKSIsInNvcnRObyI6MH0seyJuYW1lIjoiQWNjdXJhY3kiLCJ2YWx1ZSI6IjLCoCUgb2YgdGhlIG1lYXN1cmVkIHZhbHVlIiwic29ydE5vIjoxfSx7Im5hbWUiOiJNZWFzdXJpbmcgZHluYW1pY3MiLCJ2YWx1ZSI6IlVwIHRvIDE6MTAwICgwLjEgdG8gMTDCoG0vcykiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik1lZGl1bSB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiVXAgdG8gODDCoMKwQyAodXAgdG8gOTXCoMKwQyB3aXRoIGxvd2VyIGFjY3VyYWN5KSIsInNvcnRObyI6M30seyJuYW1lIjoiTm9taW5hbCBwcmVzc3VyZSIsInZhbHVlIjoiUE7CoDE2Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIiwidmFsdWUiOiI3MMKgwrBDIiwic29ydE5vIjo1fSx7Im5hbWUiOiJPdXRwdXRzIiwidmFsdWUiOiJQdWxzZSBvdXRwdXQgKHVwIHRvIDEwwqBrSHopLCBhbmFsb2cgb3V0cHV0ICg0IHRvIDIwwqBtQSkiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkRpc3BsYXkiLCJ2YWx1ZSI6IkxFRCBzdGF0dXMgZGlzcGxheSIsInNvcnRObyI6N30seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJQaXBlIG1hZGUgb2YgaGlnaC1wZXJmb3JtYW5jZSBwbGFzdGljIHdpdGggbm9taW5hbCB3aWR0aHMgZnJvbSBETsKgMTUgdG8gRE7CoDMyLCBHLXR5cGUgZXh0ZXJuYWwgdGhyZWFkIHdpdGggaW50ZWdyYXRlZCBzZWFsIiwic29ydE5vIjo4fSx7Im5hbWUiOiJNYXRlcmlhbHMgaW4gY29udGFjdCB3aXRoIHRoZSBtZWRpdW0iLCJ2YWx1ZSI6IlBQU1UsIFBFRUssIEVQRE0gKEZLTSkiLCJzb3J0Tm8iOjl9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA2NS9JUDY3Iiwic29ydE5vIjoxMH0seyJuYW1lIjoiSG91c2luZyIsInZhbHVlIjoiTWV0YWwtZnJlZSBwbGFzdGljIGhvdXNpbmciLCJzb3J0Tm8iOjExfSx7Im5hbWUiOiJFbGVjdHJpY2FsIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6Ik0xMiBjb25uZWN0b3IiLCJzb3J0Tm8iOjEyfSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IlVMIChleGNlcHQgZm9yIEROMTUpIiwic29ydE5vIjoxM31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZGlhbW9uZCIsImRlc2NyaXB0aW9uIjoiUHJlY2lzZSBtZWFzdXJlbWVudCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24td3JhbmNoIiwiZGVzY3JpcHRpb24iOiJMb3cgd2VhciBhbmQgbG93IG1haW50ZW5hbmNlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jaGVjay1hbGwtYWx0IiwiZGVzY3JpcHRpb24iOiJGbGV4aWJsZSBpbiBpdHMgYXBwbGljYXRpb24iLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTm9taW5hbCB3aWR0aHMgRE4gMTUgdG8gRE4gMzIiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Ik5vbWluYWwgcHJlc3N1cmUgdXAgdG8gUE4gMTYiLCJzb3J0Tm8iOjF9LHsidGV4dCI6Ik1lZGl1bSB0ZW1wZXJhdHVyZSB1cCB0byA4MMKgwrBDIiwic29ydE5vIjoyfV19
title
Icon
icon-diamond
Description
Precise measurement
Icon
icon-wranch
Description
Low wear and low maintenance
Icon
icon-check-all-alt
Description
Flexible in its application
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=936744
Measuring principle
Ultrasonic (transit time)
Accuracy
2 % of the measured value
Measuring dynamics
Up to 1:100 (0.1 to 10 m/s)
Medium temperature
Up to 80 °C (up to 95 °C with lower accuracy)
Nominal pressure
PN 16
Ambient temperature
70 °C
Outputs
Pulse output (up to 10 kHz), analog output (4 to 20 mA)
Display
LED status display
Process connection
Pipe made of high-performance plastic with nominal widths from DN 15 to DN 32, G-type external thread with integrated seal
Materials in contact with the medium
PPSU, PEEK, EPDM (FKM)
Protection type
IP65/IP67
Housing
Metal-free plastic housing
Electrical connection
M12 connector
Approvals
UL (except for DN15)
