Produkt Details
SKU
701066
Name

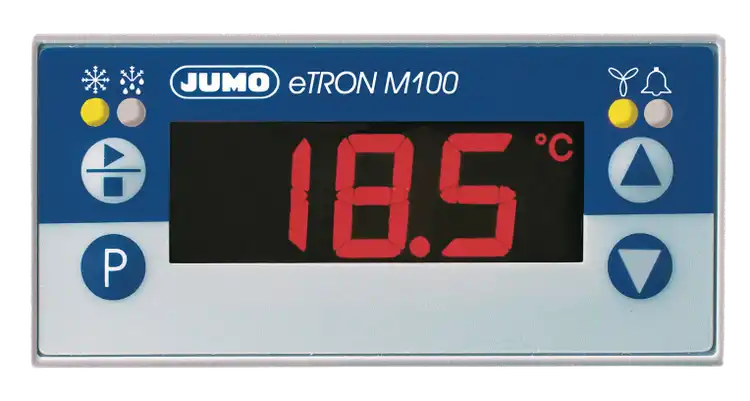

JUMO eTRON M100
Description
The product is an electronic 2-channel microstat for universal use to be connected to RTD temperature probes. The 2 measurement inputs acquire temperatures that are available as the actual value and that can be assigned to the relays as the user sees fit.
Short Description
Electronic 2-channel microstat
Price
€206.78
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDM0NDgiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJBQy9EQyAxMiB0byAyNMKgViArMTUvLTE1wqAlLCA0OCB0byA2M8KgSHoiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiQXQgdGhlIGZyb250IElQNjU7IGF0IHRoZSByZWFyIElQMjEiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Ik1vdW50aW5nIiwidmFsdWUiOiJQYW5lbCBtb3VudGluZyIsInNvcnRObyI6Mn0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJjVUx1cyIsInNvcnRObyI6M30seyJuYW1lIjoiQWxhcm1zIiwidmFsdWUiOiJBbGFybSB2aWEgcmVsYXkgb3IgYnV6emVyIiwic29ydE5vIjo0fSx7Im5hbWUiOiJDb25uZWN0aW9ucyIsInZhbHVlIjoiU2NyZXcgdGVybWluYWxzIiwic29ydE5vIjo1fSx7Im5hbWUiOiJNZWFzdXJpbmcgaW5wdXRzIiwidmFsdWUiOiIyIGFuYWxvZyBpbnB1dHMgZm9yOiBQdDEwMDsgUHQxMDAwOyBLVFkxeC02IG9yIEtUWTJ4LTYgaW4gdHdvLXdpcmUgY2lyY3VpdCAodXNlciBjb25maWd1cmFibGUpIiwic29ydE5vIjo2fSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJJbnRlcmZhY2U7IG9wZXJhdGluZyBob3VycyBjb3VudGVyOyBkYXRhIGxvZ2dlcjsgc2V0dXAgcHJvZ3JhbSBpbmNsdWRpbmcgdHJhbnNtaXNzaW9uIGFuZCB2aXN1YWxpemF0aW9uIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZXMgc3RvcmVkIGluIHRoZSBkYXRhIGxvZ2dlciIsInNvcnRObyI6N30seyJuYW1lIjoiRm9ybWF0IiwidmFsdWUiOiI3N8KgbW0gw5cgMzbCoG1tIMOXIDcxLjfCoG1tIiwic29ydE5vIjo4fSx7Im5hbWUiOiJEaXNwbGF5IiwidmFsdWUiOiJUaHJlZS1kaWdpdCBiYWNrbGl0IExDRCBkaXNwbGF5IHdpdGggMTPCoG1tIGRpZ2l0IGhlaWdodCBhbmQgc3BlY2lhbCBjaGFyYWN0ZXJzIGZvciDCsEMsIMKwRiwgaCwgbWluLCBzOyBzd2l0Y2hpbmcgcG9zaXRpb24gaW5kaWNhdG9yIGZvciB0aGUgcmVsYXlzIiwic29ydE5vIjo5fSx7Im5hbWUiOiJPdXRwdXRzIiwidmFsdWUiOiIyIGNoYW5nZW92ZXIgY29udGFjdHMgMTbCoEEvMjUwwqBWIGFuZCAyIG5vcm1hbGx5IG9wZW4gY29udGFjdHMgOMKgQS8yNTDCoFY7IG9wdGlvbmFsOiAxIGNoYW5nZW92ZXIgY29udGFjdCAxNsKgQS8yNTDCoFYgZm9yIGFsYXJtIG91dHB1dCIsInNvcnRObyI6MTB9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJORVciLCJkZXNjcmlwdGlvbiI6IkN1c3RvbWVyLXNwZWNpZmljIGxpbmVhcml6YXRpb24iLCJ0eXBlIjoiVEVYVCJ9LHsiaWNvblRleHQiOiJpY29uLWtleWJvYXJkIiwiZGVzY3JpcHRpb24iOiJTZXR1cCBwcm9ncmFtIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1sb2NrIiwiZGVzY3JpcHRpb24iOiJQYXJhbWV0ZXIgbGV2ZWwgcHJvdGVjdGVkIGJ5IGNvZGUiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiUlM0ODUgaW50ZXJmYWNlIiwic29ydE5vIjowfSx7InRleHQiOiJQdDEwMCwgUHQxMDAwLCBLVFkxWC02L0tUWTJYLTYiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IkRJTiBFTiAxMjgzMCBhbmQgRElOIEVOIDEzNDg1Iiwic29ydE5vIjoyfV19
title
Icon
NEW
Description
Customer-specific linearization
Icon
icon-keyboard
Description
Setup program
Icon
icon-lock
Description
Parameter level protected by code
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=43448
Voltage supply
AC/DC 12 to 24 V +15/-15 %, 48 to 63 Hz
Protection type
At the front IP65; at the rear IP21
Mounting
Panel mounting
Approvals
cULus
Alarms
Alarm via relay or buzzer
Connections
Screw terminals
Measuring inputs
2 analog inputs for: Pt100; Pt1000; KTY1x-6 or KTY2x-6 in two-wire circuit (user configurable)
Special features
Interface; operating hours counter; data logger; setup program including transmission and visualization of the measured values stored in the data logger
Format
77 mm × 36 mm × 71.7 mm
Display
Three-digit backlit LCD display with 13 mm digit height and special characters for °C, °F, h, min, s; switching position indicator for the relays
Outputs
2 changeover contacts 16 A/250 V and 2 normally open contacts 8 A/250 V; optional: 1 changeover contact 16 A/250 V for alarm output
