Overview
title
Produkt Details
SKU
705065
Name
JUMO mTRON T
Description

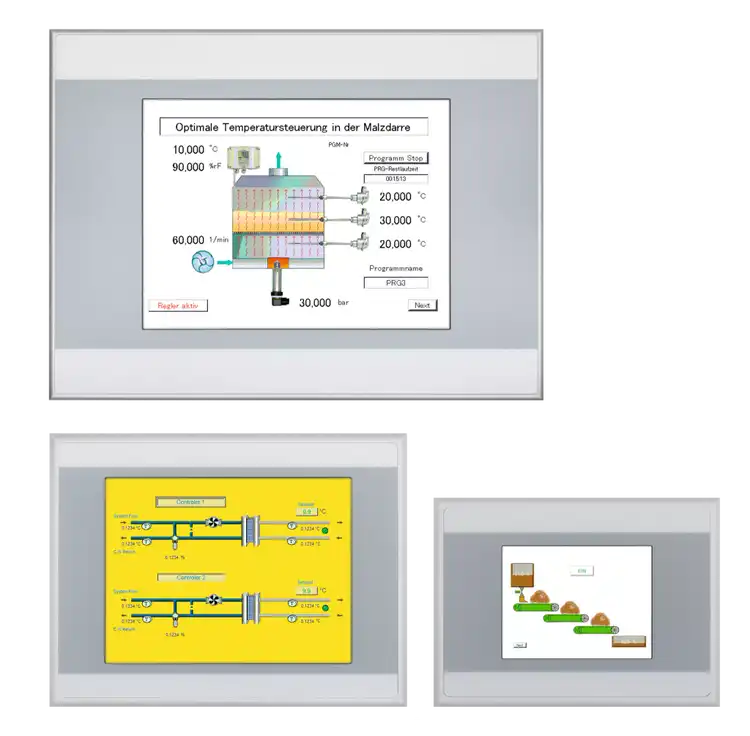

The basic version of the JUMO mTRON T automation system includes the multifunction panel 840 with a screen size of 21.3 cm (8.4") as a standard feature. The additional operating panels allow the automation system to be configured with even greater flexibility.
Short Description
Operating panels
Availability
In Stock
Images
State
SELLOUT
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTMxMzI5IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJPcGVyYXRpb24iLCJ2YWx1ZSI6IlRGVCBjb2xvciBzY3JlZW4gKDMuNVwiLCA1LjdcIiwgYW5kIDEwLjRcIiwgYXQgbGVhc3QgNjRrIGNvbG9ycykgd2l0aCByZXNpc3RpdmUvY2FwYWNpdGl2ZSB0b3VjaCB0ZWNobm9sb2d5Iiwic29ydE5vIjowfSx7Im5hbWUiOiJIb3VzaW5nIiwidmFsdWUiOiJNZXRhbCBvciBwbGFzdGljIiwic29ydE5vIjoxfSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNjcgKGZyb250IHNpZGUpLCBJUDIwIChyZWFyIHNpZGUpIiwic29ydE5vIjoyfSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMjAgdG8gKzU1wqDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJEQyAyNMKgViArMjUvLTIwwqAlIFNFTFYiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkludGVyZmFjZXMiLCJ2YWx1ZSI6IkV0aGVybmV0IChSSjQ1KSBmb3IgY29ubmVjdGlvbiB0byB0aGUgc3lzdGVtIiwic29ydE5vIjo1fSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJVcCB0byA0IG9wZXJhdGluZyBwYW5lbHMgcGVyIGNlbnRyYWwgcHJvY2Vzc2luZyB1bml0IChQTEMgb3B0aW9uIHJlcXVpcmVkKSwgb3BlcmF0aW9uIG9mIHRoZSBzeXN0ZW0gdmlhIHNwZWNpZmljIHByb2Nlc3Mgc2NyZWVucywgZGlyZWN0IGFjY2VzcyB0byB0aGUgUExDIHZhcmlhYmxlcyIsInNvcnRObyI6Nn0seyJuYW1lIjoiU2NyZWVuIHNpemUiLCJ2YWx1ZSI6IjguOSBjbSAoMy41XCIpLCAxNC41IGNtICg1LjdcIiksIGFuZCAyNi40wqBjbSAoMTAuNFwiKSIsInNvcnRObyI6N30seyJuYW1lIjoiU2NyZWVuIHJlc29sdXRpb25zIiwidmFsdWUiOiIzMjAgw5cgMjQwIHBpeGVscyBhbmQgNjQwIMOXIDQ4MCBwaXhlbHMiLCJzb3J0Tm8iOjh9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXN0YWNrcyIsImRlc2NyaXB0aW9uIjoiNCBvcGVyYXRpbmcgcGFuZWxzIHBlciBjZW50cmFsIHByb2Nlc3NpbmcgdW5pdCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY29tcHV0ZXIiLCJkZXNjcmlwdGlvbiI6IkZsZXhpYmxlIHN5c3RlbSBkZXNpZ24gYW5kIG9wZXJhdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiRGlyZWN0IGFjY2VzcyB0byBQTEMgdmFyaWFibGVzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkV0aGVybmV0IGludGVyZmFjZSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiMy41XCIsIDUuN1wiLCBhbmQgMTAuNFwiIFRGVCBjb2xvciBzY3JlZW5zIiwic29ydE5vIjoxfSx7InRleHQiOiJJUDY1IHByb3RlY3Rpb24gb24gZnJvbnQiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-stacks
Description
4 operating panels per central processing unit
Icon
icon-computer
Description
Flexible system design and operation
Icon
icon-monitor
Description
Direct access to PLC variables
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=131329
Operation
TFT color screen (3.5", 5.7", and 10.4", at least 64k colors) with resistive/capacitive touch technology
Housing
Metal or plastic
Protection type
IP67 (front side), IP20 (rear side)
Ambient temperature
-20 to +55 °C
Voltage supply
DC 24 V +25/-20 % SELV
Interfaces
Ethernet (RJ45) for connection to the system
Special features
Up to 4 operating panels per central processing unit (PLC option required), operation of the system via specific process screens, direct access to the PLC variables
Screen size
8.9 cm (3.5"), 14.5 cm (5.7"), and 26.4 cm (10.4")
Screen resolutions
320 × 240 pixels and 640 × 480 pixels
