Overview
title
Produkt Details
SKU
404382
Name

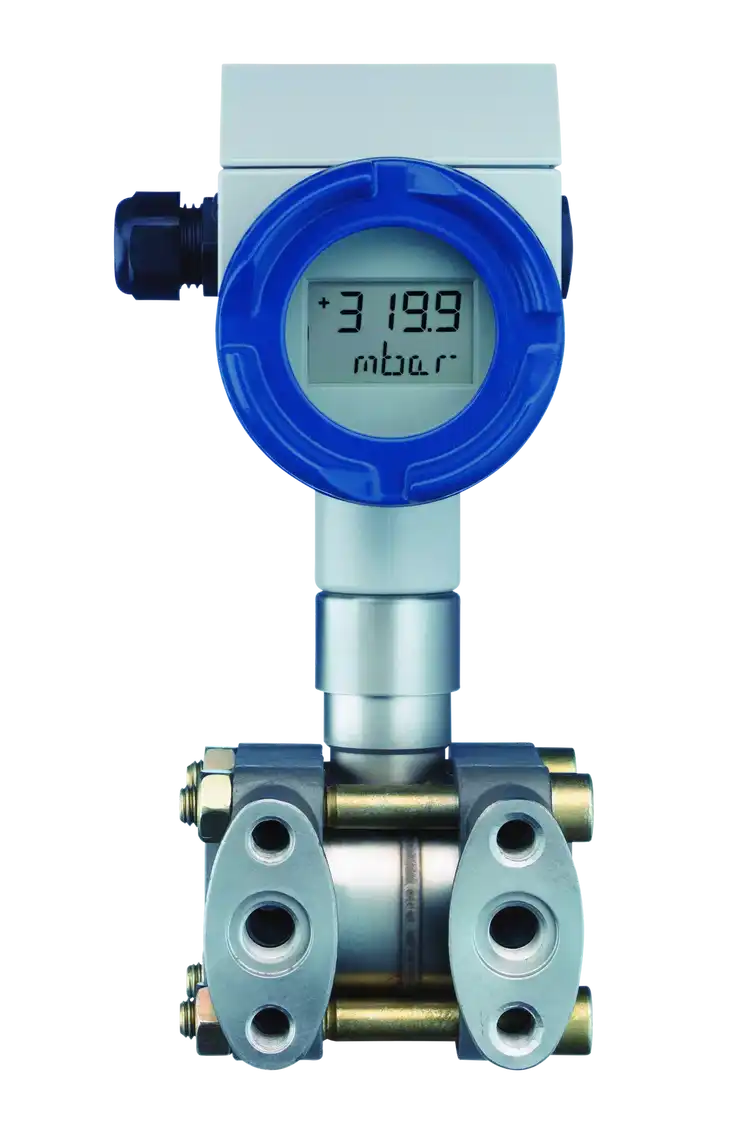

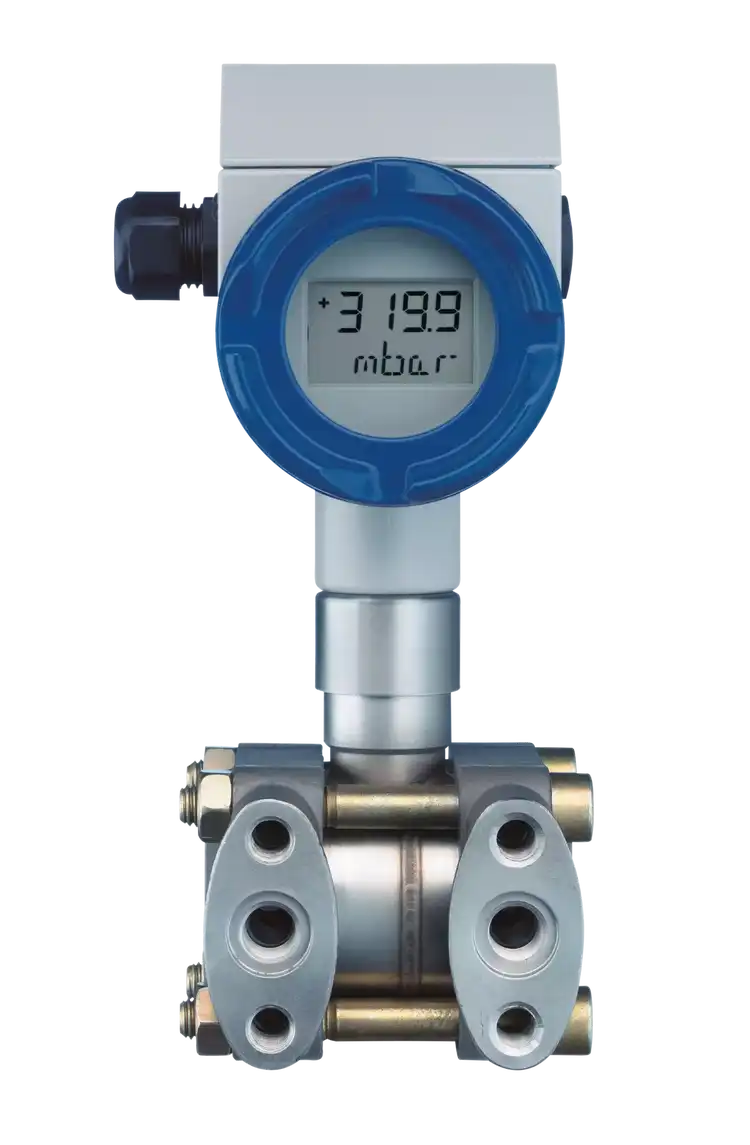

JUMO dTRANS p02 DELTA
Description
The product measures the differential pressure of non-aggressive and aggressive gases, steam, and liquids. The output signal is a load-independent direct current which is linearly proportional to the input pressure. For special applications, an extensive range of diaphragm seals is available.
Short Description
Pressure transmitter
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDM4MCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItNDAgdG8gKzEyMMKgwrBDIiwic29ydE5vIjowfSx7Im5hbWUiOiJJbnB1dCIsInZhbHVlIjoiMTLCoG1iYXIgdG8gMjXCoGJhciBEUCwgcmVsLiIsInNvcnRObyI6MX0seyJuYW1lIjoiT3V0cHV0IiwidmFsdWUiOiI0IHRvIDIwwqBtQSB0d28td2lyZTsgSEFSVMKuIiwic29ydE5vIjoyfSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IjJ4MS80LTE4IE5QVCwgZGlhcGhyYWdtIHNlYWwiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IkFjY3VyYWN5IChsaW5lYXJpdHkpIiwidmFsdWUiOiIwLjEwwqAlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJTcGVjaWFsIGZlYXR1cmVzIiwidmFsdWUiOiJNYXhpbXVtIHByZWNpc2lvbjsgcHJvZ3JhbW1hYmxlOyBzdGFpbmxlc3Mgc3RlZWwgc2Vuc29yOyBhbHVtaW51bSBob3VzaW5nIiwic29ydE5vIjo1fSx7Im5hbWUiOiJBcHBsaWNhdGlvbiIsInZhbHVlIjoiTm9uLWFnZ3Jlc3NpdmUgYW5kIGFnZ3Jlc3NpdmUgZ2FzZXMsIHN0ZWFtLCBhbmQgbGlxdWlkcyIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tY2hpcCIsImRlc2NyaXB0aW9uIjoiT3BlcmF0aW9uIG9wdGlvbmFsbHkgdmlhIEhBUlTCriBwcm90b2NvbCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2xvY2siLCJkZXNjcmlwdGlvbiI6IkxvbmctdGVybSBzdGFiaWxpdHkiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXdhcm5pbmciLCJkZXNjcmlwdGlvbiI6IlNpZ25hbGluZyB3aXRoIG1lYXN1cmluZyByYW5nZSBsaW1pdCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IDAuNiB0byAyNcKgYmFyIERQIiwic29ydE5vIjowfSx7InRleHQiOiJNZWRpdW0gdGVtcGVyYXR1cmU6IC00MMKgdG/CoCsxMDDCoMKwQyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiSW50ZWdyaWVydGVzIERpc3BsYXkgdW5kIEhBUlQtUHJvdG9rb2xsIiwic29ydE5vIjoyfV19
title
Icon
icon-chip
Description
Operation optionally via HART® protocol
Icon
icon-clock
Description
Long-term stability
Icon
icon-warning
Description
Signaling with measuring range limit
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4380
Medium temperature
-40 to +120 °C
Input
12 mbar to 25 bar DP, rel.
Output
4 to 20 mA two-wire; HART®
Process connection
2x1/4-18 NPT, diaphragm seal
Accuracy (linearity)
0.10 %
Special features
Maximum precision; programmable; stainless steel sensor; aluminum housing
Application
Non-aggressive and aggressive gases, steam, and liquids
