Overview
title
Produkt Details
SKU
402058
Name

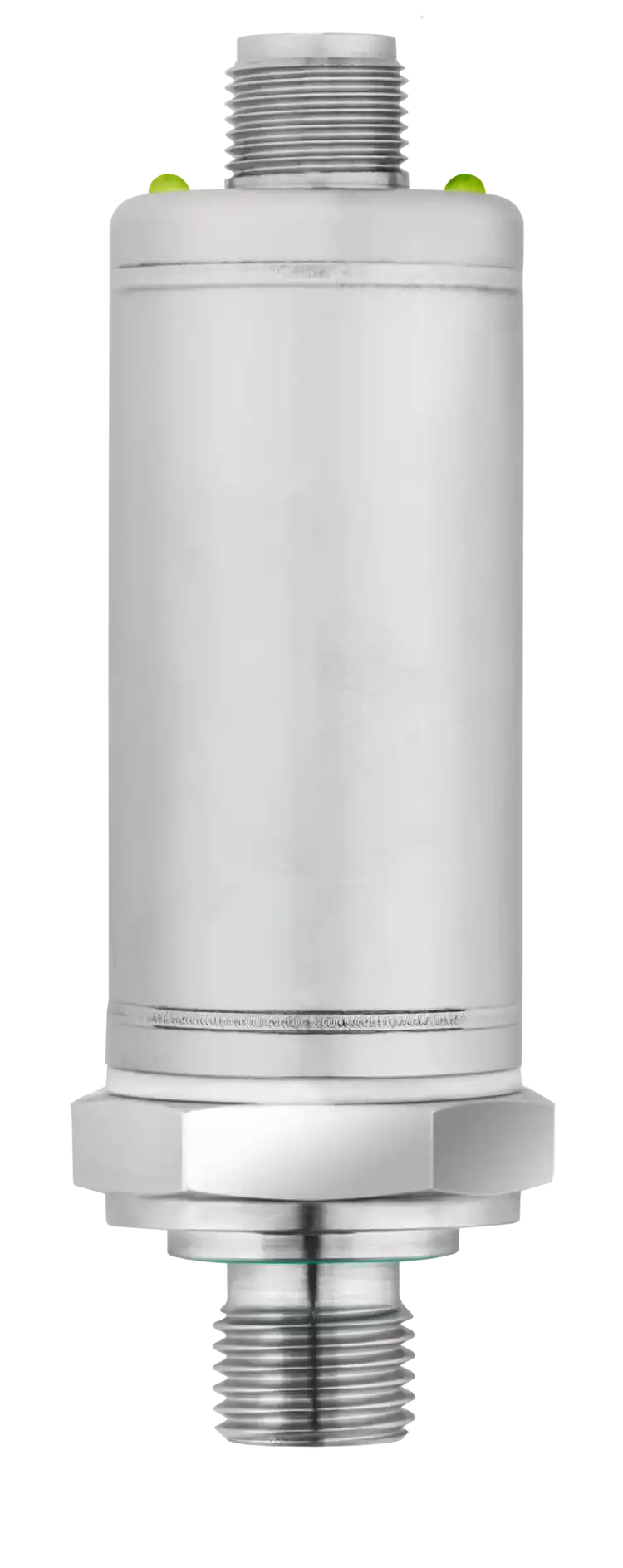

JUMO dTRANS p35
Description
The pressure sensor measures relative and absolute pressure in liquids and gases. The device is equipped with an IO-Link interface according to specification 1.1. As a result, the pressure sensor is suitable for use in plant and mechanical engineering for connecting to automation systems.
Short Description
Pressure sensor with IO-Link
Price
€2,193.75
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3E5ZWlxb3Yzc2Q2MnBjdWVodWVvMTVwMDUzP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiUEVLQV9Qcm96ZXNzYW5zY2hsdXNzX0RFLm1wNCIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX3E5ZWlxb3Yzc2Q2MnBjdWVodWVvMTVwMDUzLy1GV0VCUCIsInNvcnQiOjB9XSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDAxNzQyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjQwMMKgbWJhciB0byA2MDDCoGJhciByZWxhdGl2ZSwgYWJzb2x1dGUiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik1lZGl1bSB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTI1wqB0b8KgKzEyNcKgwrBDIiwic29ydE5vIjoxfSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIiwidmFsdWUiOiItNDAgdG8gKzg1wqDCsEMiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik91dHB1dCIsInZhbHVlIjoiSU8tTGluayBkZXZpY2UgVsKgMS4xIChkb3dud2FyZCBjb21wYXRpYmxlIHRvIElPLUxpbmsgVsKgMS4wKTsgMiBvdXRwdXRzIGZvciBzd2l0Y2ggb3BlcmF0aW9uIChTSU8gbW9kZTsgU0lPID0gc3RhbmRhcmQgSU8pIiwic29ydE5vIjozfSx7Im5hbWUiOiJEYXRhIHRyYW5zZmVyIHJhdGUiLCJ2YWx1ZSI6IkNPTSAzICgyMzAuNMKga0JhdWQpIiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6Ik1hcmtldC1iYXNlZCBzY3JldyBjb25uZWN0aW9ucyBhbmQgaHlnaWVuaWMgcHJvY2VzcyBjb25uZWN0aW9ucyIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDY1LCBJUDY3Iiwic29ydE5vIjo2fSx7Im5hbWUiOiJBcHByb3ZhbCIsInZhbHVlIjoiY1VMdXMiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IkN5Y2xlIHRpbWUiLCJ2YWx1ZSI6IjLCoG1zIiwic29ydE5vIjo4fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiRm9vZCBpbmR1c3RyeSwgbWVjaGFuaWNhbCBhbmQgcGxhbnQgZW5naW5lZXJpbmcsIHBhY2thZ2luZyBpbmR1c3RyeSwgcHJvY2VzcyBhdXRvbWF0aW9uIiwic29ydE5vIjo5fSx7Im5hbWUiOiJJbnRlcmZhY2UiLCJ2YWx1ZSI6IklPLUxpbmsiLCJzb3J0Tm8iOjEwfV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1hbGFybSIsImRlc2NyaXB0aW9uIjoiUmVkdWN0aW9uIG9mIHRoZSBzdGFydHVwIHRpbWVzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hZGQiLCJkZXNjcmlwdGlvbiI6IkluY3JlYXNlZCBwbGFudCBlZmZpY2llbmN5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IkhpZ2ggcHJvY2VzcyByZWxpYWJpbGl0eSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2UgZnJvbSA0MDDCoG1iYXLCoHRvIDYwMMKgYmFyIHJlbGF0aXZlIiwic29ydE5vIjowfSx7InRleHQiOiJNZWRpdW0gdGVtcGVyYXR1cmVzIC00MMKgdG/CoCsxMjXCoMKwQyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiSU8tTGluayBpbnRlcmZhY2UiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-alarm
Description
Reduction of the startup times
Icon
icon-add
Description
Increased plant efficiency
Icon
icon-shield
Description
High process reliability
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=401742
Measuring range
400 mbar to 600 bar relative, absolute
Medium temperature
-25 to +125 °C
Ambient temperature
-40 to +85 °C
Output
IO-Link device V 1.1 (downward compatible to IO-Link V 1.0); 2 outputs for switch operation (SIO mode; SIO = standard IO)
Data transfer rate
COM 3 (230.4 kBaud)
Process connection
Market-based screw connections and hygienic process connections
Protection type
IP65, IP67
Approval
cULus
Cycle time
2 ms
Areas of application
Food industry, mechanical and plant engineering, packaging industry, process automation
Interface
IO-Link
