Overview
title
Produkt Details
SKU
401006
Name

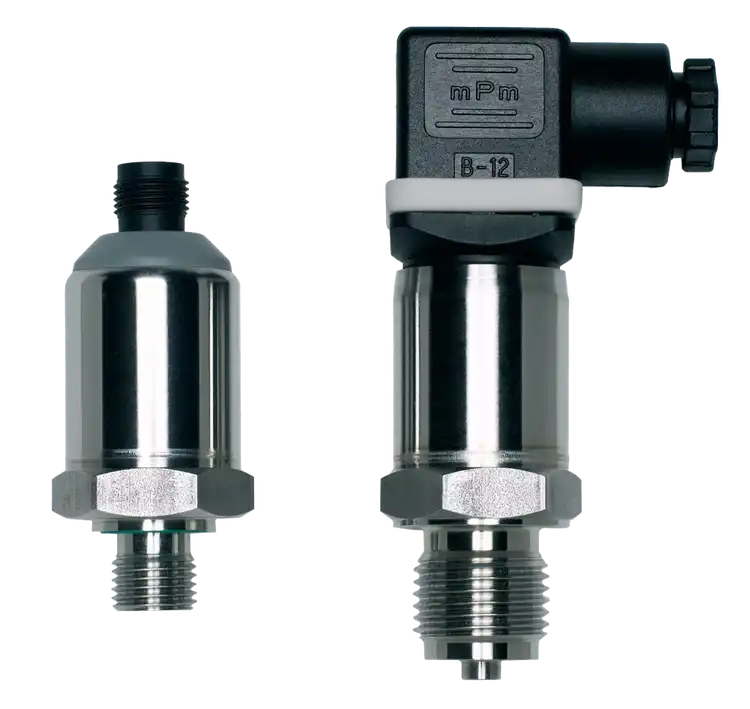

JUMO MIDAS SI
Description
This pressure transmitter acquires the relative and absolute pressure of gaseous and liquid media and transforms it into an electrical signal. One of the application areas in which it is used is aggressive media.
Short Description
OEM pressure transmitter
Price
€388.82
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3E5ZWlxb3Yzc2Q2MnBjdWVodWVvMTVwMDUzP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiUEVLQV9Qcm96ZXNzYW5zY2hsdXNzX0RFLm1wNCIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX3E5ZWlxb3Yzc2Q2MnBjdWVodWVvMTVwMDUzLy1GV0VCUCIsInNvcnQiOjB9XSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9Mzc2MiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQWNjdXJhY3kgKGxpbmVhcml0eSkiLCJ2YWx1ZSI6IjAuMzDCoCUiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IklucHV0IiwidmFsdWUiOiItMcKgdG/CoCsxLjbCoGJhciByZWxhdGl2ZSBwcmVzc3VyZTsgMMKgdG8gMjXCoGJhciBhYnNvbHV0ZSBwcmVzc3VyZSIsInNvcnRObyI6MX0seyJuYW1lIjoiTWVhc3VyaW5nIHN5c3RlbSIsInZhbHVlIjoiU2lsaWNvbiBzZW5zb3Igd2l0aCBzdGFpbmxlc3Mgc3RlZWwgc2VwYXJhdGluZyBtZW1icmFuZSIsInNvcnRObyI6Mn0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItMzAgdG8gKzEyNcKgwrBDIiwic29ydE5vIjozfSx7Im5hbWUiOiJPdXRwdXQiLCJ2YWx1ZSI6IjTCoHRvwqAyMMKgbUEgdHdvLXdpcmU7IERDIDDCoHRvwqAxMMKgViB0aHJlZS13aXJlIiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkFsbCBzY3JldyBjb25uZWN0aW9ucyB0aGF0IGFyZSBzdGFuZGFyZCBpbiB0aGUgaW5kdXN0cnkiLCJzb3J0Tm8iOjV9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWNhbGN1bGF0b3IiLCJkZXNjcmlwdGlvbiI6IkxvdyBpbnZlc3RtZW50IGNvc3RzIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IkRlc2lnbiBwcm90ZWN0cyBhZ2FpbnN0IGxlYWtpbmcgZmlsbGluZyBvaWwiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWVxdWFsaXplciIsImRlc2NyaXB0aW9uIjoiRGlmZmVyZW50IHByb2Nlc3MgY29ubmVjdGlvbnMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiMS42wqBiYXIgcmVsYXRpdmUgdG8gMjXCoGJhciBhYnNvbHV0ZSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiV2VsZGVkIG1lYXN1cmluZyBzeXN0ZW0iLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlNpbGljb24gc2Vuc29yIiwic29ydE5vIjoyfV19
title
Icon
icon-calculator
Description
Low investment costs
Icon
icon-shield
Description
Design protects against leaking filling oil
Icon
icon-equalizer
Description
Different process connections
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3762
Accuracy (linearity)
0.30 %
Input
-1 to +1.6 bar relative pressure; 0 to 25 bar absolute pressure
Measuring system
Silicon sensor with stainless steel separating membrane
Medium temperature
-30 to +125 °C
Output
4 to 20 mA two-wire; DC 0 to 10 V three-wire
Process connection
All screw connections that are standard in the industry
