Produkt Details
SKU
902464
Name

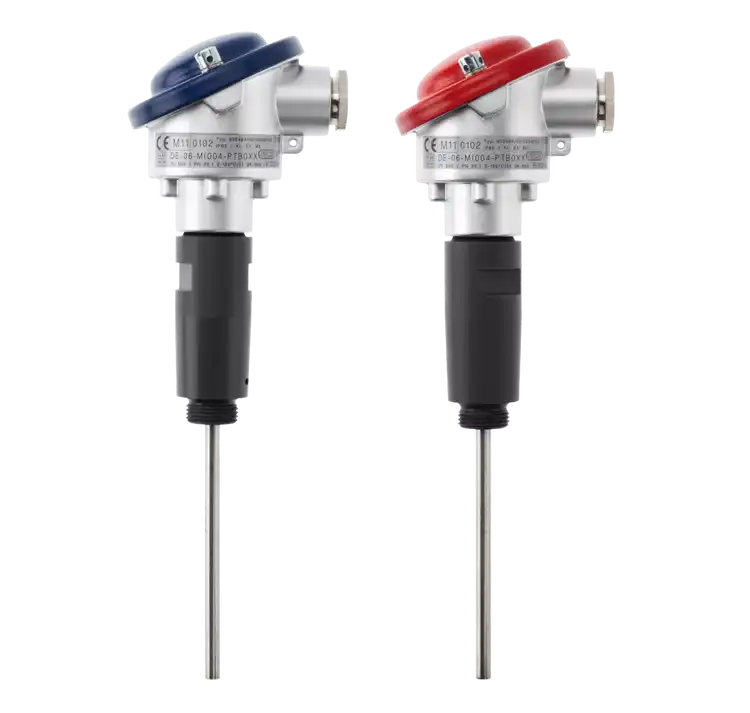

JUMO HEATtemp
Description
Combined cold and heat meter RTD temperature probes are used for measuring the temperature in closed pipeline systems. Due to the installation in thermowells with fitting tolerance, the system no longer needs to be emptied during regular replacement once the certification period has elapsed.
Short Description
Push-in RTD temperature probes for combined cold and heat meters with terminal head for thermowells (type PL)
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjMxMDY4IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJUZXJtaW5hbCBoZWFkIiwidmFsdWUiOiJGb3JtIEIiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlByb3RlY3Rpb24gdHViZSIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsIiwic29ydE5vIjoxfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSBzZW5zb3IiLCJ2YWx1ZSI6IlB0MTAwLCBQdDUwMCwgUHQxMDAwIiwic29ydE5vIjoyfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSIsInZhbHVlIjoiMCB0byAxMjDCoMKwQyAoY29sZCksIDAgdG8gMTgwwqDCsEMgKGhlYXQpIiwic29ydE5vIjozfSx7Im5hbWUiOiJNaW5pbXVtIGltbWVyc2lvbiBkZXB0aCIsInZhbHVlIjoiMjXCoG1tIiwic29ydE5vIjo0fSx7Im5hbWUiOiJJbnNlcnRpb24gbGVuZ3RoIiwidmFsdWUiOiI4NSB0byA0MDDCoG1tIiwic29ydE5vIjo1fSx7Im5hbWUiOiJNYXhpbXVtIHByZXNzdXJlIiwidmFsdWUiOiI0MMKgYmFyICh3aXRoIHRoZXJtb3dlbGwpIiwic29ydE5vIjo2fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNjUiLCJzb3J0Tm8iOjd9LHsibmFtZSI6Ik9wdGlvbiIsInZhbHVlIjoiVHdvLXdpcmUgb3IgZm91ci13aXJlIGNpcmN1aXQiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IkFjY2Vzc29yaWVzIiwidmFsdWUiOiJDb29yZGluYXRlZCB0aGVybW93ZWxscyAoOTAyNDQwKSBhbmQgaW5zdGFsbGF0aW9uIGxvY2F0aW9ucyAoOTAyNDQyKSIsInNvcnRObyI6OX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZmlsZS1jaGVja2VkIiwiZGVzY3JpcHRpb24iOiJDZXJ0aWZpZWQgYWNjb3JkaW5nIHRvIG1vZHVsZSBEIChNSUQpIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1ib29rLWNoZWNrZWQiLCJkZXNjcmlwdGlvbiI6IkRJTiBFTiAxNDM0LCBBR0ZXIEZXIDIwMiwgYW5kIEZXIDIxMSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2siLCJkZXNjcmlwdGlvbiI6IkNvbmZvcm1pdHkgYWNjb3JkaW5nIHRvIHRoZSBHZXJtYW4gTWVzc0VHIGFuZCBNSUQiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiVGVtcC46IDAgdG8gMTIwwqDCsEMgKGNvbGQpIC8gMTgwwqDCsEMgKGhlYXQpIiwic29ydE5vIjowfSx7InRleHQiOiJUZW1wZXJhdHVyZSBzZW5zb3I6IFB0MTAwLCBQdDUwMCwgUHQxMDAwIiwic29ydE5vIjoxfSx7InRleHQiOiJJbnNlcnRpb24gbGVuZ3RoOiA4NSB0byA0MDDCoG1tIiwic29ydE5vIjoyfV19
title
Icon
icon-file-checked
Description
Certified according to module D (MID)
Icon
icon-book-checked
Description
DIN EN 1434, AGFW FW 202, and FW 211
Icon
icon-check
Description
Conformity according to the German MessEG and MID
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=631068
Terminal head
Form B
Protection tube
Stainless steel
Temperature sensor
Pt100, Pt500, Pt1000
Temperature
0 to 120 °C (cold), 0 to 180 °C (heat)
Minimum immersion depth
25 mm
Insertion length
85 to 400 mm
Maximum pressure
40 bar (with thermowell)
Protection type
IP65
Option
Two-wire or four-wire circuit
Accessories
Coordinated thermowells (902440) and installation locations (902442)
