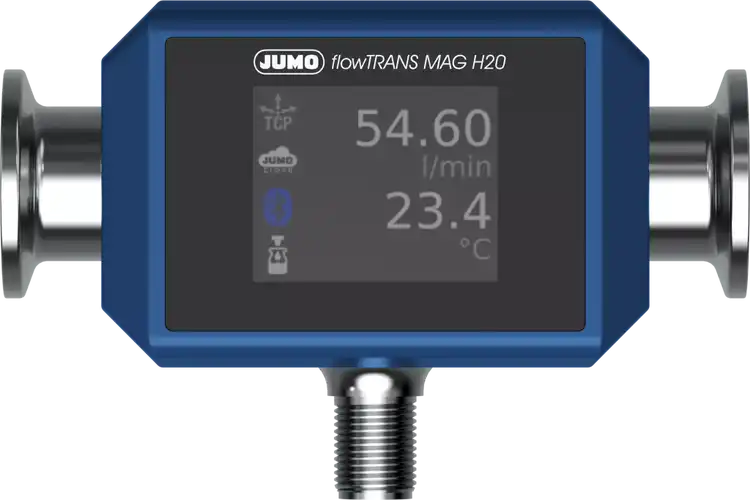

JUMO flowTRANS MAG H20
Description
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. Its compact design allows it to fit into the smallest plants (dosing systems, apparatus cooling) and to measure conductive media with a high degree of precision. TRI-Clamps allow process-oriented use in the hygienic industry. The usual G-type external threads are available as well.
Short Description
Electromagnetic flowmeter
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX3B0MXY2N2dibHA2MnAwaDc5OTh0Y2w5NjFhP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiNDA2MDY1X0pVTU8gZmxvd1RSQU5TIE1BRyBIMjAgREUubXA0IiwidGh1bWJuYWlsVXJsIjoiaHR0cHM6Ly9kbzJwMXE5Yjkyc2dwLmNsb3VkZnJvbnQubmV0L3JlbmRpdGlvbi8zNTM2MDQ4ODQzMTkvdmlkZW9fcHQxdjY3Z2JscDYycDBoNzk5OHRjbDk2MWEvLUZXRUJQIiwic29ydCI6MH1dLCJkYXRhU2hlZXRVcmwiOiJodHRwczovL3d3dy5qdW1vLm5ldC9hdHRhY2htZW50cy9KVU1PL2F0dGFjaG1lbnRkb3dubG9hZD9pZD0xMTk5ODA5IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJGbG93IHJhdGVzIiwidmFsdWUiOiIwLjAwNSB0byAxNTAgbC9taW4iLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik1lZGl1bSAgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6IlVwIHRvIDkwIMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiSW5zZXJ0aW9uIGxlbmd0aCIsInZhbHVlIjoiMTEwIG1tIChleGNlcHQgVFJJLUNsYW1wIEROIDI1KSIsInNvcnRObyI6Mn0seyJuYW1lIjoiSW5sZXQgYW5kICBvdXRsZXQgc2VjdGlvbiIsInZhbHVlIjoi4omlIDAgRE4v4omlIDAgRE4iLCJzb3J0Tm8iOjN9LHsibmFtZSI6IklucHV0cyBhbmQgb3V0cHV0cyIsInZhbHVlIjoiU1BFIHdpdGggUG9ETCAoTW9kYnVzIFRDUCwgIEpVTU8gQ2xvdWQgY29ubmVjdG9yKSwgSU8tTGluayAoaW5jbC4gYW5hbG9nL2RpZ2l0YWwgaW5wdXRzL291dHB1dHMpIiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQNjUvSVA2Ny9JUDY5Iiwic29ydE5vIjo1fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi10aGVybW9tZXRlciIsImRlc2NyaXB0aW9uIjoiTWVhc3VyZW1lbnQgb2Ygc21hbGwgcXVhbnRpdGllcyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY29tcHV0ZXIiLCJkZXNjcmlwdGlvbiI6IkNvbXBhY3QgZGVzaWduIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1maWxlLWNoZWNrZWQiLCJkZXNjcmlwdGlvbiI6Ik1vZGVybiBITUkiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTm9taW5hbCB3aWR0aCB0byBETiAyNSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUE4gMTYiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlNQRSB3aXRoIFBvREwiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-thermometer
Description
Measurement of small quantities
Icon
icon-computer
Description
Compact design
Icon
icon-file-checked
Description
Modern HMI
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1199809
Flow rates
0.005 to 150 l/min
Medium temperature
Up to 90 °C
Insertion length
110 mm (except TRI-Clamp DN 25)
Inlet and outlet section
≥ 0 DN/≥ 0 DN
Inputs and outputs
SPE with PoDL (Modbus TCP, JUMO Cloud connector), IO-Link (incl. analog/digital inputs/outputs)
Protection type
IP65/IP67/IP69
