Produkt Details
SKU
602026
Name

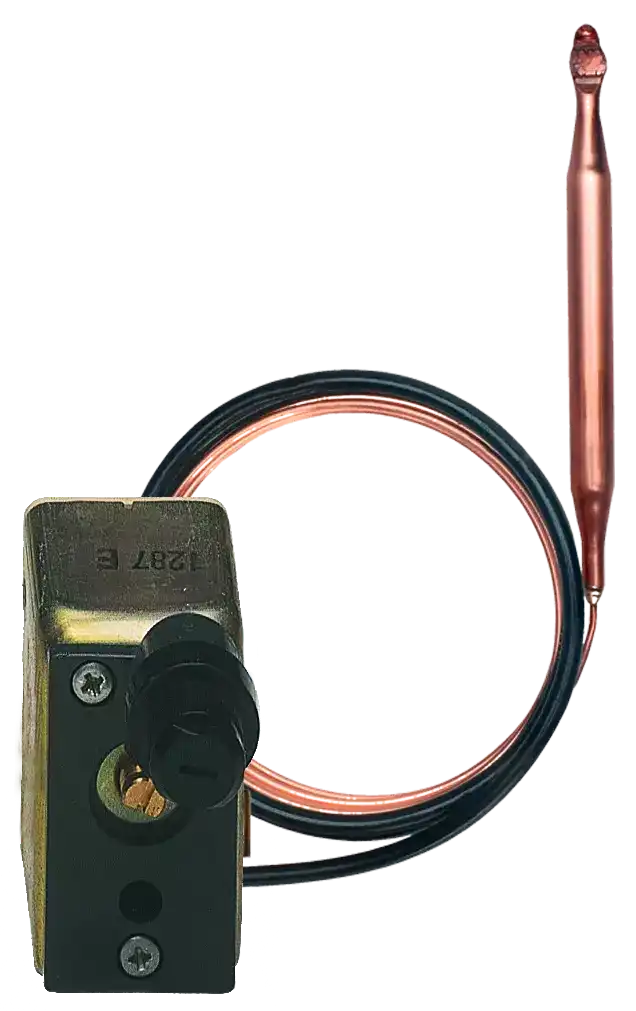

Panel-mounted thermostat
Description
The devices are available as safety temperature monitors (STW) and safety temperature limiters (STB). In the event of a malfunction the STB places the system being monitored in a safe operating status. Panel-mounted thermostats operate according to the liquid expansion principle.
Short Description
EM series
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTI2OCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVmVyc2lvbnMiLCJ2YWx1ZSI6IlNhZmV0eSB0ZW1wZXJhdHVyZSBtb25pdG9yIChTVFcpLCBzYWZldHkgdGVtcGVyYXR1cmUgbGltaXRlciAoU1RCKSIsInNvcnRObyI6MH0seyJuYW1lIjoiU3dpdGNoaW5nIGNhcGFjaXR5IiwidmFsdWUiOiIyMzAgViwgMTZBOyA0MDAgViwgMTBBIiwic29ydE5vIjoxfSx7Im5hbWUiOiJTd2l0Y2hpbmcgZWxlbWVudHMiLCJ2YWx1ZSI6IlNpbmdsZS1wb2xlIHNuYXAtYWN0aW9uIHN3aXRjaCIsInNvcnRObyI6Mn0seyJuYW1lIjoiTWF4aW11bSBjb250cm9sIHJhbmdlL2xpbWl0IHZhbHVlIiwidmFsdWUiOiI1MDDCoMKwQyIsInNvcnRObyI6M30seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IkhlYXRpbmcgaW5kdXN0cnksIGFpci1jb25kaXRpb25pbmcgaW5kdXN0cnksIGhlYXRpbmcgY2FiaW5ldHMsIHBsYXN0aWNzIGluZHVzdHJ5LCBmdXJuYWNlIGNvbnN0cnVjdGlvbiwgZ2VuZXJhbCBtZWNoYW5pY2FsIGVuZ2luZWVyaW5nIiwic29ydE5vIjo0fSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IkRJTiwgVUwsIFBFRCwgRFZHVyIsInNvcnRObyI6NX0seyJuYW1lIjoiRmVhdHVyZXMiLCJ2YWx1ZSI6IkJhdGNoIHNpemUgYWNjb3JkaW5nIHRvIGN1c3RvbWVyIHNwZWNpZmljYXRpb24iLCJzb3J0Tm8iOjZ9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJTYWZldHkgc3dpdGNoLW9mZiBhdCAtMjDCoMKwQyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2siLCJkZXNjcmlwdGlvbiI6IlNlbGYtbW9uaXRvcmluZyBpbiB0aGUgZXZlbnQgb2YgYSBwcmVzc3VyZSBkcm9wIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tb3VzZSIsImRlc2NyaXB0aW9uIjoiTWljcm9zd2l0Y2giLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWF0ZXJpYWw6IHN0YWlubGVzcyBzdGVlbCIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTWF4LiBjYXBpbGxhcnk6IDUwMDDCoG1tIiwic29ydE5vIjoxfSx7InRleHQiOiJDb250cm9sIHJhbmdlOiB1cCB0byAzMDDCoMKwQyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-thermometer
Description
Safety switch-off at -20 °C
Icon
icon-check
Description
Self-monitoring in the event of a pressure drop
Icon
icon-mouse
Description
Microswitch
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5268
Versions
Safety temperature monitor (STW), safety temperature limiter (STB)
Switching capacity
230 V, 16A; 400 V, 10A
Switching elements
Single-pole snap-action switch
Maximum control range/limit value
500 °C
Areas of application
Heating industry, air-conditioning industry, heating cabinets, plastics industry, furnace construction, general mechanical engineering
Approvals
DIN, UL, PED, DVGW
Features
Batch size according to customer specification
