Produkt Details
SKU
406061
Name

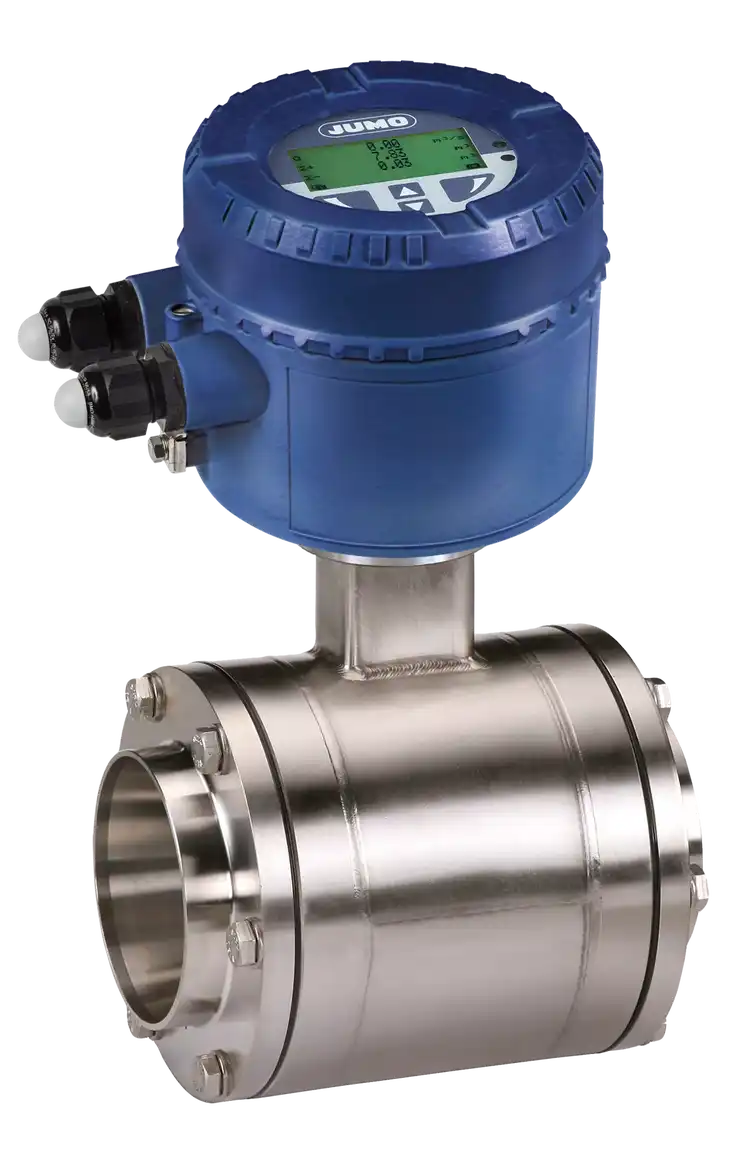

JUMO flowTRANS MAG H10
Description
The electromagnetic flowmeter can be used to measure conductive liquids in pipes with nominal widths from DN 3 to DN 100. The device has been designed for hygienic applications and can be used in liquid media with different properties.
Short Description
Electromagnetic flowmeter
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjkwMjgwIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJMaW5pbmcgbWF0ZXJpYWxzIiwidmFsdWUiOiJQRkEiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkVsZWN0cm9kZSBtYXRlcmlhbCIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsIDEuNDUzOSwgMS40NTcxOyBIQVNURUxMT1nCriBCLTMgKDIuNDYwMCksIEhBU1RFTExPWcKuIEMtNCAoMi40NjEwKTsgdGFudGFsdW07IHRpdGFuaXVtOyBwbGF0aW51bS1pcmlkaXVtIChtb3JlIHVwb24gcmVxdWVzdCkiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Ik5vbWluYWwgcHJlc3N1cmUiLCJ2YWx1ZSI6IlBOIDEwIHRvIFBOIDQwIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWRpdW0gdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6IjEzMCDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik5vbWluYWwgcGlwZSB3aWR0aCIsInZhbHVlIjoiRE4gMyB0byBETiAxMDAiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IklucHV0cy9vdXRwdXRzIiwidmFsdWUiOiJBbmFsb2cgb3V0cHV0IDQgdG8gMjDCoG1BOyBkaWdpdGFsIG91dHB1dCAxIGFuZCAyIChwYXNzaXZlKSIsInNvcnRObyI6NX0seyJuYW1lIjoiTWVhc3VyaW5nIGFjY3VyYWN5IiwidmFsdWUiOiIwLjUgJSBvZiB0aGUgbWVhc3VyZWQgdmFsdWUiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiU2NyZXcgY29ubmVjdGlvbiBhY2NvcmRpbmcgdG8gRElOOyB3ZWxkZWQgc29ja2V0IGFjY29yZGluZyB0byBESU4sIElTTzsgVHJpLUNsYW1wIGFjY29yZGluZyB0byBESU4sIEFTTUUgQlBFOyBjb25uZWN0aW9uIGZsYW5nZTsgZmxhbmdlIGFjY29yZGluZyB0byBESU4sIEFTTUUsIEpJUzsgZXh0ZXJuYWwgdGhyZWFkIGFjY29yZGluZyB0byBESU4sIElTTyIsInNvcnRObyI6N30seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIG1hdGVyaWFsIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwgd2l0aCBzZWFsIChFUERNLCBzaWxpY29uZSkgYW5kIGZhc3RlbmluZzsgd2l0aG91dCBwcm9jZXNzIGNvbm5lY3Rpb24iLCJzb3J0Tm8iOjh9LHsibmFtZSI6IlByb3RlY3Rpb24gcmF0aW5ncyIsInZhbHVlIjoiSVA2NTsgSVA2NzsgSVA2OCAocmVtb3RlIG1vdW50IGRlc2lnbiB0eXBlKSIsInNvcnRObyI6OX0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IkFDIDEwMCB0byAyNDAgVjsgREMgMjQgdG8gNDggViIsInNvcnRObyI6MTB9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IkZEQSBjb21wbGlhbnQiLCJzb3J0Tm8iOjExfV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6IldlYXIgYW5kIG1haW50ZW5hbmNlIGZyZWUiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrLWFsbCIsImRlc2NyaXB0aW9uIjoiSGlnaCBkZWdyZWUgb2YgbWVhc3VyaW5nIGFjY3VyYWN5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1jaGVjayIsImRlc2NyaXB0aW9uIjoiU2ltcGxlIGFuZCBxdWljayBzdGFydHVwIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6Ik5vbWluYWwgd2lkdGhzIEROIDMgdG8gRE4gMTAwIiwic29ydE5vIjowfSx7InRleHQiOiJOb21pbmFsIHByZXNzdXJlIFBOwqAxMCB0byBQTiA0MCIsInNvcnRObyI6MX0seyJ0ZXh0IjoiTWVkaXVtIHRlbXAuIDEzMCDCsEMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-wranch
Description
Wear and maintenance free
Icon
icon-check-all
Description
High degree of measuring accuracy
Icon
icon-check
Description
Simple and quick startup
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=690280
Lining materials
PFA
Electrode material
Stainless steel 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); tantalum; titanium; platinum-iridium (more upon request)
Nominal pressure
PN 10 to PN 40
Medium temperature
130 °C
Nominal pipe width
DN 3 to DN 100
Inputs/outputs
Analog output 4 to 20 mA; digital output 1 and 2 (passive)
Measuring accuracy
0.5 % of the measured value
Process connection
Screw connection according to DIN; welded socket according to DIN, ISO; Tri-Clamp according to DIN, ASME BPE; connection flange; flange according to DIN, ASME, JIS; external thread according to DIN, ISO
Process connection material
Stainless steel with seal (EPDM, silicone) and fastening; without process connection
Protection ratings
IP65; IP67; IP68 (remote mount design type)
Voltage supply
AC 100 to 240 V; DC 24 to 48 V
Special features
FDA compliant
