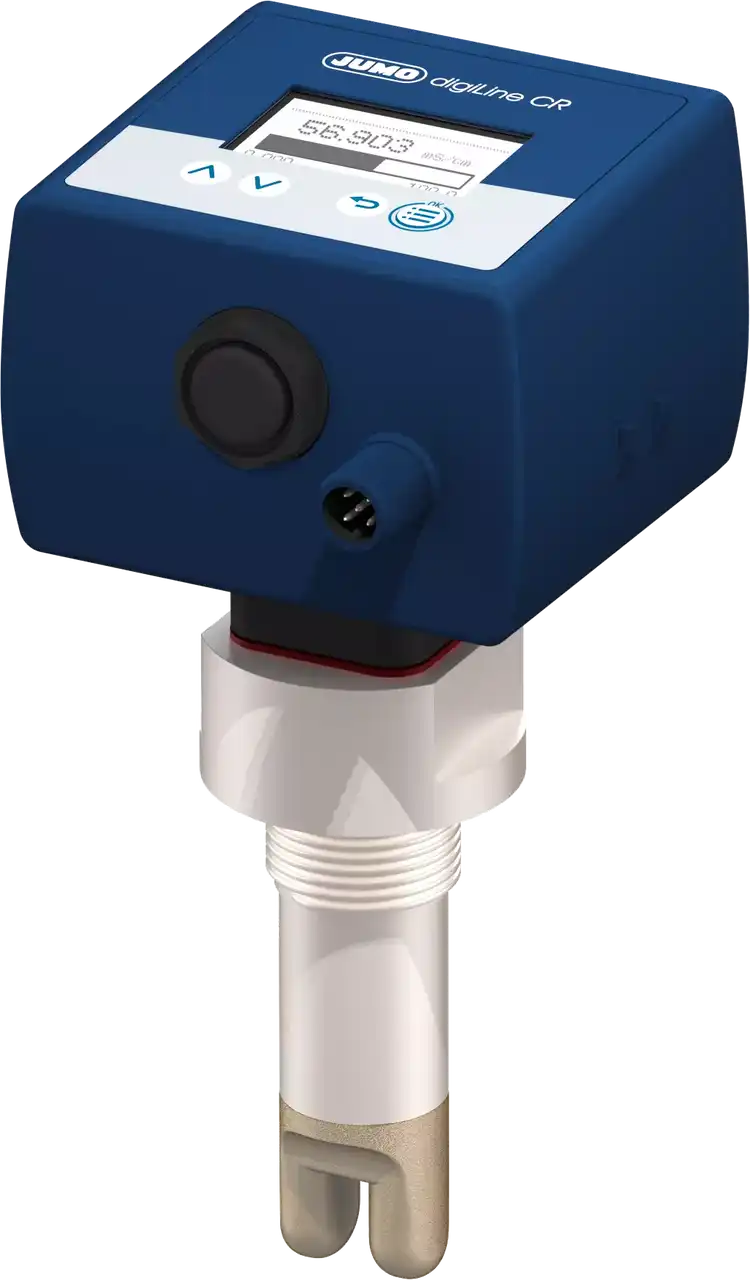

JUMO digiLine CR HT60
Description
JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.
Short Description
Head transmitter with conductive two-electrode conductivity sensor type GT
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzAzMzkyIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJNZWFzdXJpbmcgcHJpbmNpcGxlIiwidmFsdWUiOiJDb25kdWN0aXZlIiwic29ydE5vIjowfSx7Im5hbWUiOiJTZW5zb3IgY29ubmVjdGlvbiIsInZhbHVlIjoiQ29tcGFjdCBkZXNpZ24gdHlwZSIsInNvcnRObyI6MX0seyJuYW1lIjoiU2Vuc29yIG1hdGVyaWFsIiwidmFsdWUiOiJQVkRGIiwic29ydE5vIjoyfSx7Im5hbWUiOiJNZWFzdXJpbmcgcmFuZ2UiLCJ2YWx1ZSI6IjEwwqDCtVMvY20gdG8gMTXCoG1TL2NtIiwic29ydE5vIjozfSx7Im5hbWUiOiJUZW1wZXJhdHVyZSBjb21wZW5zYXRpb24iLCJ2YWx1ZSI6IkxpbmVhciwgQVNUTSwgVVNQIDw2NDU+Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJUZW1wZXJhdHVyZSIsInZhbHVlIjoiTWF4LiAxMzDCoMKwQyIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJlc3N1cmUiLCJ2YWx1ZSI6Ik1heC4gMTbCoGJhciIsInNvcnRObyI6Nn0seyJuYW1lIjoiSW50ZXJmYWNlcyIsInZhbHVlIjoiSlVNTyBkaWdpTGluZSBvciBJTy1MaW5rIiwic29ydE5vIjo3fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiRnJlc2ggd2F0ZXIgbW9uaXRvcmluZzsgd2F0ZXIgdHJlYXRtZW50OyBjb25kZW5zYXRlIG1vbml0b3JpbmciLCJzb3J0Tm8iOjh9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXdyYW5jaCIsImRlc2NyaXB0aW9uIjoiUHJlZGljdGl2ZSBtYWludGVuYW5jZSB0aGFua3MgdG8gSlVNTyBEU00iLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiJGbGV4aWJsZSBjb25uZWN0aW9uIG9wdGlvbnMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFsYXJtIiwiZGVzY3JpcHRpb24iOiJPcHRpbXVtIHByb2Nlc3MgbW9uaXRvcmluZyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJDb21wYWN0IGRlc2lnbiB0eXBlIHdpdGggY29uZHVjdGl2ZSBzZW5zb3IiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Ik1lYXN1cmluZyByYW5nZTogMTDCoMK1Uy9jbSB0b8KgMTXCoG1TL2NtIiwic29ydE5vIjoxfSx7InRleHQiOiJKVU1PIGRpZ2lMaW5lIG9yIElPLUxpbmsgaW50ZXJmYWNlIiwic29ydE5vIjoyfV19
title
Icon
icon-wranch
Description
Predictive maintenance thanks to JUMO DSM
Icon
icon-anschluesse
Description
Flexible connection options
Icon
icon-alarm
Description
Optimum process monitoring
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=703392
Measuring principle
Conductive
Sensor connection
Compact design type
Sensor material
PVDF
Measuring range
10 µS/cm to 15 mS/cm
Temperature compensation
Linear, ASTM, USP <645>
Temperature
Max. 130 °C
Pressure
Max. 16 bar
Interfaces
JUMO digiLine or IO-Link
Areas of application
Fresh water monitoring; water treatment; condensate monitoring
