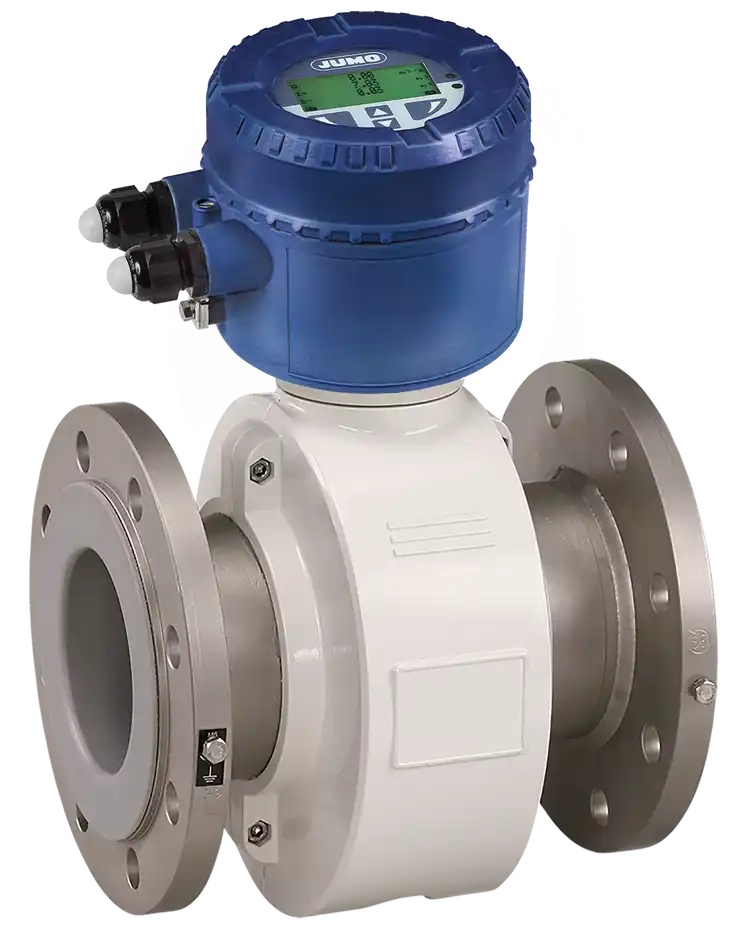

JUMO flowTRANS MAG S10
Description
The electromagnetic flowmeter can be used to measure conductive liquids in pipes with nominal widths from DN 3 to DN 2000. The device has been designed for standard industrial applications and can be used in liquid media with different properties.
Short Description
Electromagnetic flowmeter
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjkwMjY0IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJMaW5pbmcgbWF0ZXJpYWxzIiwidmFsdWUiOiJQVEZFOyBoYXJkIHJ1YmJlcjsgc29mdCBydWJiZXI7IFBGQTsgRVRGRTsgKG1vcmUgdXBvbiByZXF1ZXN0KSIsInNvcnRObyI6MH0seyJuYW1lIjoiRWxlY3Ryb2RlIG1hdGVyaWFsIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWw6IDEuNDUzOSwgMS40NTcxOyBIQVNURUxMT1nCriBCLTMgKDIuNDYwMCksIEhBU1RFTExPWcKuIEMtNCAoMi40NjEwKTsgdGl0YW5pdW07IHRhbnRhbHVtOyBwbGF0aW51bS1pcmlkaXVtIiwic29ydE5vIjoxfSx7Im5hbWUiOiJOb21pbmFsIHByZXNzdXJlIiwidmFsdWUiOiJQTiAxMCB0byBQTiA0MCIsInNvcnRObyI6Mn0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiIxMzAgwrBDIiwic29ydE5vIjozfSx7Im5hbWUiOiJOb21pbmFsIHBpcGUgd2lkdGgiLCJ2YWx1ZSI6IkROIDMgdG8gRE4gMjAwMCIsInNvcnRObyI6NH0seyJuYW1lIjoiSW5wdXRzL291dHB1dHMiLCJ2YWx1ZSI6IkFuYWxvZyBvdXRwdXQgNCB0byAyMMKgbUE7IGRpZ2l0YWwgb3V0cHV0IDEgYW5kIDIgKHBhc3NpdmUpIiwic29ydE5vIjo1fSx7Im5hbWUiOiJNZWFzdXJpbmcgYWNjdXJhY3kiLCJ2YWx1ZSI6IjAuNSAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSIsInNvcnRObyI6Nn0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJGbGFuZ2UgYWNjb3JkaW5nIHRvIERJTiwgQVNNRSwgSklTIiwic29ydE5vIjo3fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24gbWF0ZXJpYWwiLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbDogMS40NTM5LCAxLjQ1NzE7IEhBU1RFTExPWcKuIEItMyAoMi40NjAwKSwgSEFTVEVMTE9Zwq4gQy00ICgyLjQ2MTApOyB0aXRhbml1bTsgdGFudGFsdW07IHBsYXRpbnVtLWlyaWRpdW0iLCJzb3J0Tm8iOjh9LHsibmFtZSI6IlByb3RlY3Rpb24gcmF0aW5ncyIsInZhbHVlIjoiSVA2NTsgSVA2NzsgSVA2OCAocmVtb3RlIG1vdW50IGRlc2lnbiB0eXBlKSIsInNvcnRObyI6OX0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IkFDIDEwMCB0byAyNDAgVjsgREMgMjQgdG8gNDggViIsInNvcnRObyI6MTB9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXdyYW5jaCIsImRlc2NyaXB0aW9uIjoiV2VhciBhbmQgbWFpbnRlbmFuY2UgZnJlZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYmFzaWNzIiwiZGVzY3JpcHRpb24iOiJIaWdoIGRlZ3JlZSBvZiBtZWFzdXJpbmcgYWNjdXJhY3kiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoZWNrIiwiZGVzY3JpcHRpb24iOiJTaW1wbGUgYW5kIHF1aWNrIHN0YXJ0dXAiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTm9taW5hbCB3aWR0aHMgRE4gMyB0byBETiAyMDAwIiwic29ydE5vIjowfSx7InRleHQiOiJOb21pbmFsIHByZXNzdXJlIFBOwqAxMCB0byBQTiA0MCIsInNvcnRObyI6MX0seyJ0ZXh0IjoiTWVkaXVtIHRlbXAuIDEzMMKgwrBDIiwic29ydE5vIjoyfV19
title
Icon
icon-wranch
Description
Wear and maintenance free
Icon
icon-basics
Description
High degree of measuring accuracy
Icon
icon-check
Description
Simple and quick startup
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=690264
Lining materials
PTFE; hard rubber; soft rubber; PFA; ETFE; (more upon request)
Electrode material
Stainless steel: 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); titanium; tantalum; platinum-iridium
Nominal pressure
PN 10 to PN 40
Medium temperature
130 °C
Nominal pipe width
DN 3 to DN 2000
Inputs/outputs
Analog output 4 to 20 mA; digital output 1 and 2 (passive)
Measuring accuracy
0.5 % of the measured value
Process connection
Flange according to DIN, ASME, JIS
Process connection material
Stainless steel: 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); titanium; tantalum; platinum-iridium
Protection ratings
IP65; IP67; IP68 (remote mount design type)
Voltage supply
AC 100 to 240 V; DC 24 to 48 V
