ps-1
Overview
title
Produkt Details
SKU
201083
Name

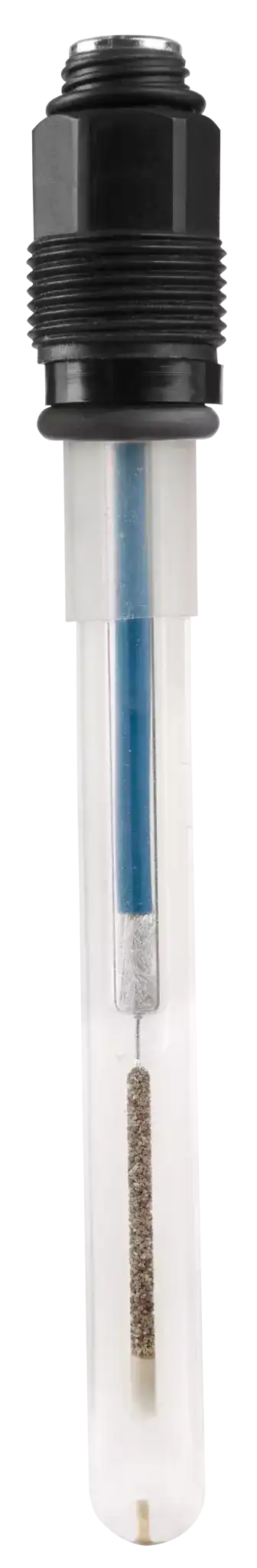

JUMO reference electrodes/diaphragm tube
Description
Reference electrodes provide a constant potential for potentiometric measurements. They are used to record pH or redox values.
Short Description
For acquiring pH and redox values
Price
€190.45
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzYxMSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6IkdlbCBmaWxsaW5nIDAgdG8gODAgwrBDOyBLQ2wgZmlsbGluZyAwIHRvIDEzNSDCsEMiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IlByZXNzdXJlIHJhbmdlIiwidmFsdWUiOiJXaXRoIHBsdWcgaGVhZCBwcmVzc3VyZWxlc3Mgb3BlcmF0aW9uOyB3aXRoIHNjcmV3IGhlYWQgUGcxMy41IDEwIGJhciBhdCAyNSDCsEMsIDEgYmFyIGF0IDgwIMKwQyIsInNvcnRObyI6MX0seyJuYW1lIjoiVGVybWluYWwgaGVhZCIsInZhbHVlIjoiUGx1ZyBoZWFkIG9yIHNjcmV3IGhlYWQgUGcxMy41Iiwic29ydE5vIjoyfSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IlRocmVhZCBQZzEzLjUiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ikluc2VydGlvbiBsZW5ndGgiLCJ2YWx1ZSI6IjEyMCBtbSAoc3RhbmRhcmQpIG90aGVyIGluc3RhbGxhdGlvbiBsZW5ndGhzIHVwb24gcmVxdWVzdCIsInNvcnRObyI6NH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tY2hlY2stYWxsLWFsdCIsImRlc2NyaXB0aW9uIjoiU3RhYmxlIHJlZmVyZW5jZSBwb3RlbnRpYWwiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWNoaXAiLCJkZXNjcmlwdGlvbiI6IlppcmNvbml1bSBkaW94aWRlIGRpYXBocmFnbSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbWF4aW1pemUtYWx0IiwiZGVzY3JpcHRpb24iOiJWYXJpb3VzIGluc2VydGlvbiBsZW5ndGhzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IldpdGggcGx1ZyBoZWFkIG9yIHNjcmV3IGhlYWQiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlRlbXBlcmF0dXJlIDAgdG8gODDCoMKwQyBvciAwIHRvIDEzNcKgwrBDIiwic29ydE5vIjoxfSx7InRleHQiOiJQcmVzc3VyZSByYW5nZSB1cCB0byAxMMKgYmFyIiwic29ydE5vIjoyfV19
title
Icon
icon-check-all-alt
Description
Stable reference potential
Icon
icon-chip
Description
Zirconium dioxide diaphragm
Icon
icon-maximize-alt
Description
Various insertion lengths
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=7611
Temperature range
Gel filling 0 to 80 °C; KCl filling 0 to 135 °C
Pressure range
With plug head pressureless operation; with screw head Pg13.5 10 bar at 25 °C, 1 bar at 80 °C
Terminal head
Plug head or screw head Pg13.5
Process connection
Thread Pg13.5
Insertion length
120 mm (standard) other installation lengths upon request
ps-2
Downloads
title
Downloads
ps-3
Accessories
title
Accessories
