Produkt Details
SKU
705015
Name

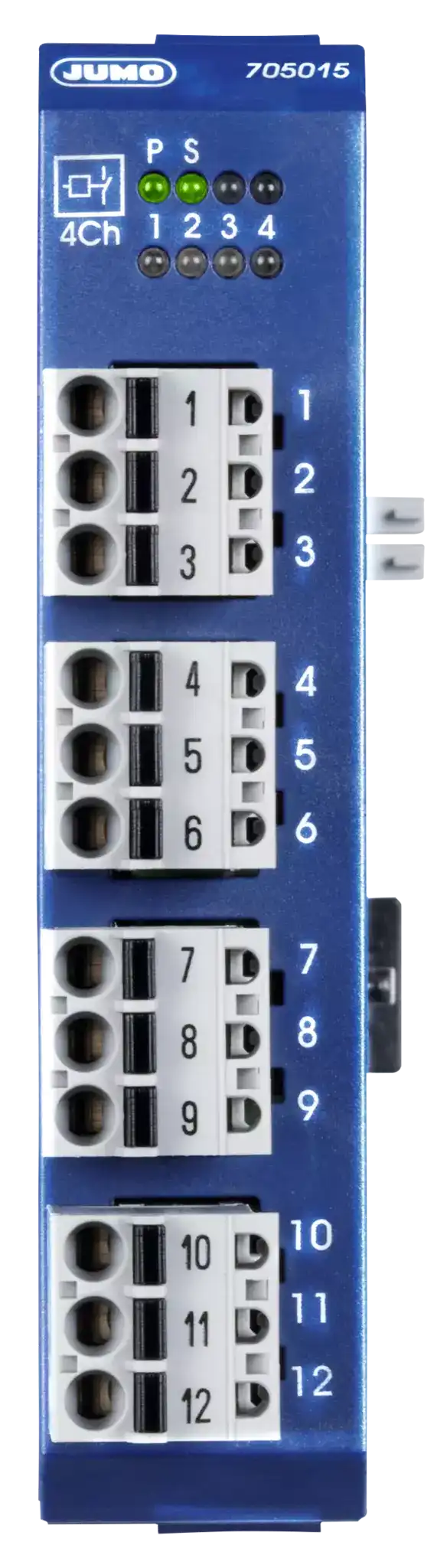

JUMO mTRON T
Description
The relay module provides 4 relay outputs, which are controlled via the system bus by digital signals (assignment in the connection list or directly by the PLC). Each relay output is equipped with a changeover contact AC 230 V/3 A.
Short Description
Relay module 4-channel
Price
€184.60
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM3MDMiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6Ik91dHB1dHMiLCJ2YWx1ZSI6IjQgcmVsYXkgb3V0cHV0cyAoZWFjaCB3aXRoIGNoYW5nZW92ZXIgY29udGFjdCAyMzDCoFYvM8KgQSkgY29udHJvbGxlZCB2aWEgdGhlIHN5c3RlbSBidXMgYnkgZGlnaXRhbCBzaWduYWxzIiwic29ydE5vIjowfSx7Im5hbWUiOiJDb25uZWN0aW9ucyIsInZhbHVlIjoiUmVtb3ZhYmxlIHRlcm1pbmFsIHN0cmlwcyB3aXRoIFBVU0ggSU4gdGVjaG5vbG9neSIsInNvcnRObyI6MX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiU3dpdGNoaW5nIHN0YXR1c2VzIGFyZSB2aXN1YWxpemVkIHdpdGggTEVEcywgYXV0b21hdGljIGNvbmZpZ3VyYXRpb24gYWZ0ZXIgcmVwbGFjZW1lbnQgb2YgdGhlIG1vZHVsZSBpbnNlcnQgKFBsdWcgYW5kIFBsYXkpLCBjb25uZWN0aW9uIG9mIG91dHB1dHMgb24gdGhlIGZyb250LCBmYXN0IHdpcmluZyBvZiBvcGVyYXRpbmcgdm9sdGFnZSBhbmQgc3lzdGVtIGJ1cyBwcm92aWRlZCBieSBzaW1wbGUgbW9kdWxlIGNvbm5lY3Rpb24gcHJpbmNpcGxlIiwic29ydE5vIjoyfSx7Im5hbWUiOiJBcHByb3ZhbHMiLCJ2YWx1ZSI6IlVMLCBtZXRyb2xvZ2ljYWwgY2VydGlmaWNhdGUsIEROViBHTCIsInNvcnRObyI6M30seyJuYW1lIjoiSG91c2luZyIsInZhbHVlIjoiUGxhc3RpYyBob3VzaW5nIGZvciBESU4tcmFpbCBtb3VudGluZyBpbiB0aGUgY29udHJvbCBjYWJpbmV0Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJQcm90ZWN0aW9uIHR5cGUiLCJ2YWx1ZSI6IklQMjAiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkFtYmllbnQgdGVtcGVyYXR1cmUiLCJ2YWx1ZSI6Ii0yMCB0byArNTXCoMKwQyIsInNvcnRObyI6Nn0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IkRDwqAyNMKgViArMjUvLTIwwqAlIiwic29ydE5vIjo3fSx7Im5hbWUiOiJEaW1lbnNpb25zIChXwqDDl8KgSMKgw5fCoEQpIiwidmFsdWUiOiIyMi41wqBtbcKgw5fCoDEwMy42IG1twqDDl8KgMTAxLjUgbW0gKHdpdGhvdXQgY29ubmVjdGlvbiBlbGVtZW50cykiLCJzb3J0Tm8iOjh9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWVxdWFsaXplciIsImRlc2NyaXB0aW9uIjoiQXV0b21hdGljIGNvbmZpZ3VyYXRpb24gKFBsdWcgYW5kIFBsYXkpIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hbnNjaGx1ZXNzZSIsImRlc2NyaXB0aW9uIjoiQ29ubmVjdGlvbiBvZiBvdXRwdXRzIG9uIHRoZSBmcm9udCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tdW5sb2NrIiwiZGVzY3JpcHRpb24iOiJSZW1vdmFibGUgdGVybWluYWwgc3RyaXBzIGZvciBlYWNoIGNoYW5uZWwiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiNCByZWxheSBvdXRwdXRzIiwic29ydE5vIjowfSx7InRleHQiOiJDaGFuZ2VvdmVyIGNvbnRhY3QgQUPCoDIzMMKgVjsgM8KgQSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiQW1iaWVudCB0ZW1wZXJhdHVyZTogLTIwwqB0b8KgKzU1wqDCsEMiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-equalizer
Description
Automatic configuration (Plug and Play)
Icon
icon-anschluesse
Description
Connection of outputs on the front
Icon
icon-unlock
Description
Removable terminal strips for each channel
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=13703
Outputs
4 relay outputs (each with changeover contact 230 V/3 A) controlled via the system bus by digital signals
Connections
Removable terminal strips with PUSH IN technology
Special features
Switching statuses are visualized with LEDs, automatic configuration after replacement of the module insert (Plug and Play), connection of outputs on the front, fast wiring of operating voltage and system bus provided by simple module connection principle
Approvals
UL, metrological certificate, DNV GL
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Protection type
IP20
Ambient temperature
-20 to +55 °C
Voltage supply
DC 24 V +25/-20 %
Dimensions (W × H × D)
22.5 mm × 103.6 mm × 101.5 mm (without connection elements)
