Produkt Details
SKU
404753
Name

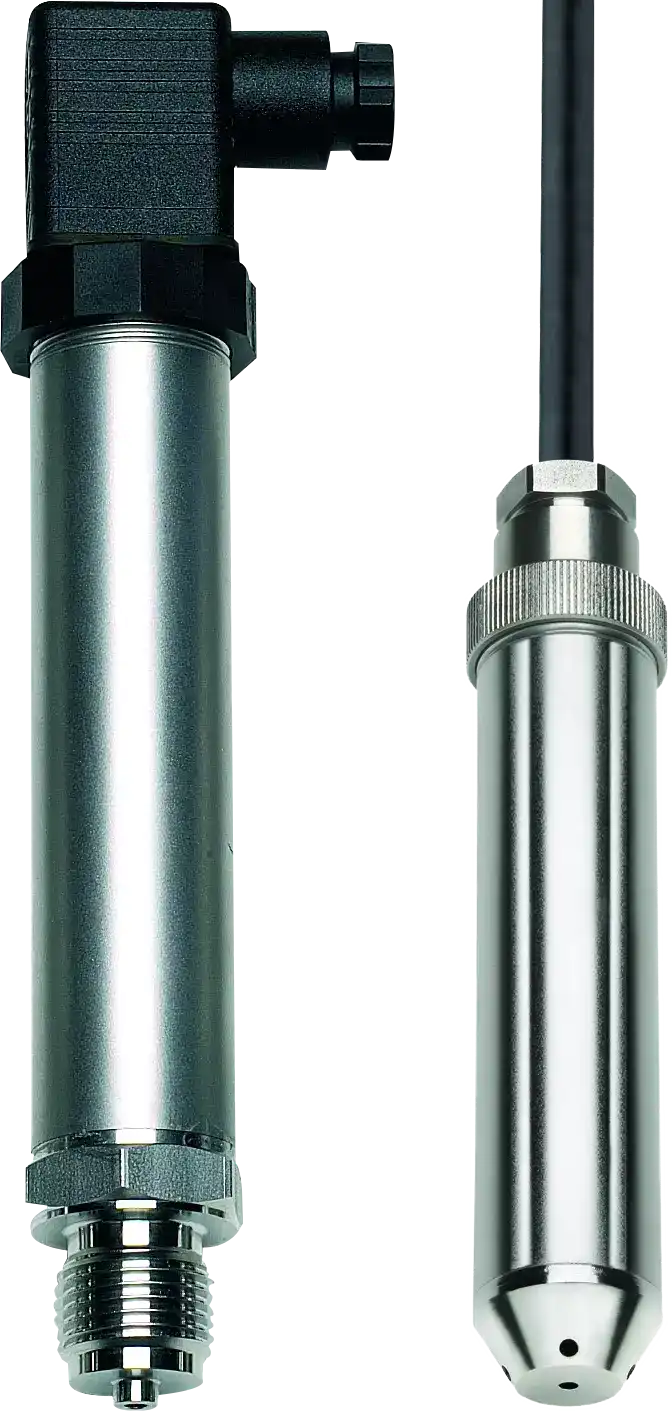

JUMO dTRANS p33
Description
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
Short Description
Pressure transmitter and level probe for Ex areas
Price
€768.60
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDIxNyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiQXBwcm92YWwiLCJ2YWx1ZSI6IkFURVgiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Ik1lYXN1cmVtZW50IG1lZGl1bSIsInZhbHVlIjoiSW1wZXJ2aW91cyB0byBhZ2dyZXNzaXZlIGdhc2VzLCB2YXBvcnMsIGFuZCBsaXF1aWRzIiwic29ydE5vIjoxfSx7Im5hbWUiOiJPdXRwdXQgc2lnbmFsIiwidmFsdWUiOiI0wqB0b8KgMjDCoG1BLCB0d28td2lyZSIsInNvcnRObyI6Mn0seyJuYW1lIjoiU2Vuc29yIiwidmFsdWUiOiJQaWV6b3Jlc2lzdGl2ZSBzaWxpY29uIHNlbnNvciIsInNvcnRObyI6M30seyJuYW1lIjoiQWNjdXJhY3kgKGxpbmVhcml0eSkiLCJ2YWx1ZSI6IjAuNcKgJSIsInNvcnRObyI6NH0seyJuYW1lIjoiWmVybyBzaWduYWwgb2Zmc2V0IiwidmFsdWUiOiLiiaQgMC4zICUgTVNQYSIsInNvcnRObyI6NX0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDY1Iiwic29ydE5vIjo2fSx7Im5hbWUiOiJDYWJsZSBtYXRlcmlhbCIsInZhbHVlIjoiUEUiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IkhvdXNpbmcgbWF0ZXJpYWwiLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbCIsInNvcnRObyI6OH0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJUaHJlYWQiLCJzb3J0Tm8iOjl9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXRoZXJtb21ldGVyIiwiZGVzY3JpcHRpb24iOiJIaWdoIG92ZXJsb2FkIHJlc2lzdGFuY2UiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWZsb3ctdHJlZSIsImRlc2NyaXB0aW9uIjoiTnVtZXJvdXMgcHJvY2VzcyBjb25uZWN0aW9ucyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc3VjY2VzcyIsImRlc2NyaXB0aW9uIjoiUmV2ZXJzZS1wb2xhcml0eSBwcm90ZWN0aW9uIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkFkbWlzc2libGUgbWVkaXVtIHRlbXBlcmF0dXJlOiAtNDAgdG8gKzIwMCDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlVwIHRvIDYwMCBiYXIgcmVsYXRpdmUgYW5kIDI1IGJhciBhYnNvbHV0ZSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiMC41ICUgTVNQIChsaW5lYXJpdHkpIiwic29ydE5vIjoyfV19
title
Icon
icon-thermometer
Description
High overload resistance
Icon
icon-flow-tree
Description
Numerous process connections
Icon
icon-success
Description
Reverse-polarity protection
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=4217
Approval
ATEX
Measurement medium
Impervious to aggressive gases, vapors, and liquids
Output signal
4 to 20 mA, two-wire
Sensor
Piezoresistive silicon sensor
Accuracy (linearity)
0.5 %
Zero signal offset
≤ 0.3 % MSPa
Protection type
IP65
Cable material
PE
Housing material
Stainless steel
Process connection
Thread
