Produkt Details
SKU
902130
Name

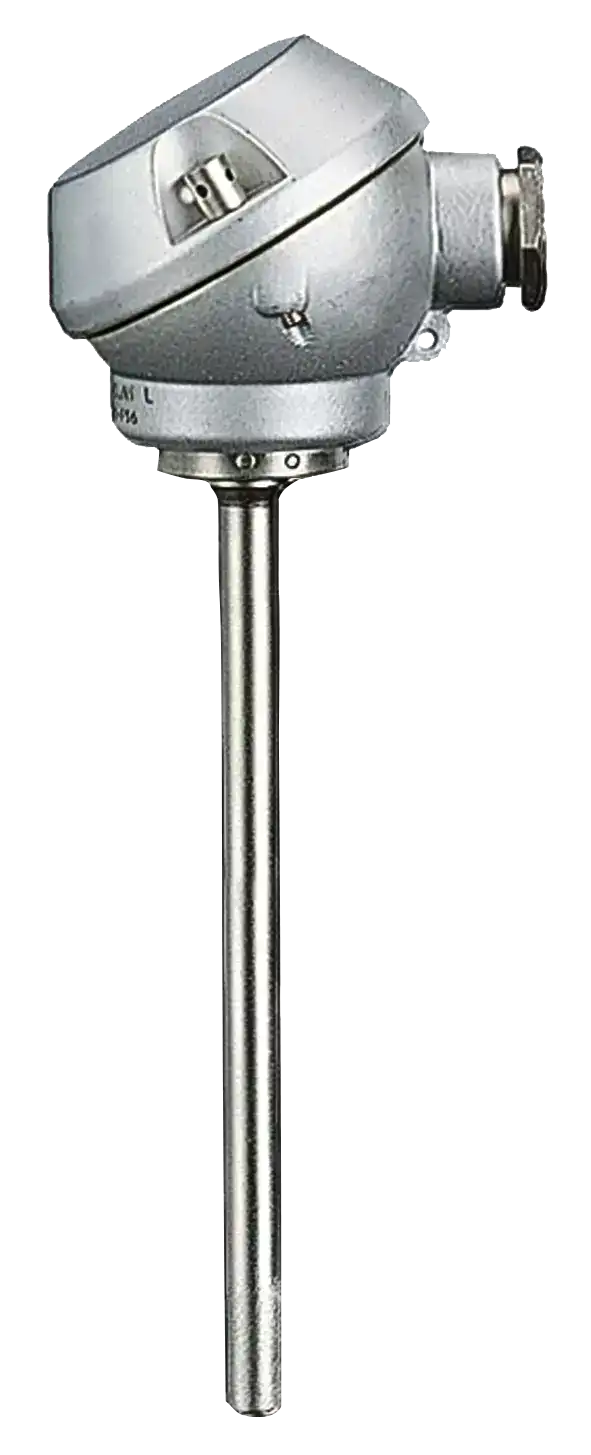

Push-in RTD temperature probe
Description
Push-in RTD temperature probes are predominantly used for temperature measurement in liquid and gases. The application areas are, among others, in air-conditioning and refrigeration technology as well heating, furnace, and apparatus engineering.
Short Description
With terminal head form J
Availability
In Stock
Images
State
LIVE
Variants
Diameter prot. tube (mm)
Measuring insert
Nominal length (mm)
- 1.000000000000000E+02 ✓
- 1.500000000000000E+02 ✓
- 100,0 ✓
- 150,0 ✓
- 2.000000000000000E+02 ✓
- 2.500000000000000E+02 ✓
- 2.900000000000000E+02 ✓
- 200,0 ✓
- 250,0 ✓
- 300,0 ✓
- 4.000000000000000E+02 ✓
- 400,0 ✓
- 5.000000000000000E+01 ✓
- 50,0 ✓
Operating temperature in °C
Basic type
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NTA5MSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiVGVybWluYWwgaGVhZCIsInZhbHVlIjoiRm9ybSBKIiwic29ydE5vIjowfSx7Im5hbWUiOiJQcm90ZWN0aW9uIGZpdHRpbmciLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbCIsInNvcnRObyI6MX0seyJuYW1lIjoiU2Vuc29yIiwidmFsdWUiOiJQdDEwMCwgUHQ1MDAsIG9yIFB0MTAwMCIsInNvcnRObyI6Mn0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJNZXRyb2xvZ2ljYWwgcmVnaXN0cmF0aW9uIiwic29ydE5vIjozfSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkZsYW5nZSwgY29tcHJlc3Npb24gZml0dGluZyBHMS8yLCBHMS80Iiwic29ydE5vIjo0fSx7Im5hbWUiOiJNZWFzdXJpbmcgY2lyY3VpdHMiLCJ2YWx1ZSI6IjEvMiIsInNvcnRObyI6NX0seyJuYW1lIjoiT3B0aW9uIiwidmFsdWUiOiJIZWFkIHRyYW5zbWl0dGVyIiwic29ydE5vIjo2fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiTWVjaGFuaWNhbCBlbmdpbmVlcmluZywgdGVtcGVyaW5nIGVxdWlwbWVudCwgY29udmV5b3IgdGVjaG5vbG9neSwgdGV4dGlsZSBpbmR1c3RyeSIsInNvcnRObyI6N30seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiRmFzdCBtZWFzdXJlbWVudCBpbiBhaXIiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVA2NSIsInNvcnRObyI6OX0seyJuYW1lIjoiT3BlcmF0aW5nIHRlbXBlcmF0dXJlIiwidmFsdWUiOiItNTAgdG8gKzQwMMKgwrBDIiwic29ydE5vIjoxMH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tdGhlcm1vbWV0ZXIiLCJkZXNjcmlwdGlvbiI6IlNpbmdsZS9kb3VibGUgUlREIHRlbXBlcmF0dXJlIHByb2JlIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1mbG93LXRyZWUiLCJkZXNjcmlwdGlvbiI6IlRocmVlLXdpcmUgYW5kIGZvdXItd2lyZSBjaXJjdWl0IGFzIGFuIG9wdGlvbiIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2FydCIsImRlc2NyaXB0aW9uIjoiVHJhbnNtaXR0ZXIgYXZhaWxhYmxlIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IlRlbXAuOiAtNTAgdG8gKzQwMMKgwrBDIiwic29ydE5vIjowfSx7InRleHQiOiJQcm90ZWN0aW9uIHR1YmUsIGNvbnRpbnVvdXMgb3Igc3RlcHBlZCBkb3duIiwic29ydE5vIjoxfSx7InRleHQiOiJQdDEwMCB0ZW1wZXJhdHVyZSBzZW5zb3IiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-thermometer
Description
Single/double RTD temperature probe
Icon
icon-flow-tree
Description
Three-wire and four-wire circuit as an option
Icon
icon-cart
Description
Transmitter available
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=5091
Terminal head
Form J
Protection fitting
Stainless steel
Sensor
Pt100, Pt500, or Pt1000
Approvals
Metrological registration
Process connection
Flange, compression fitting G1/2, G1/4
Measuring circuits
1/2
Option
Head transmitter
Areas of application
Mechanical engineering, tempering equipment, conveyor technology, textile industry
Special features
Fast measurement in air
Protection type
IP65
Operating temperature
-50 to +400 °C
