Produkt Details
SKU
201026
Name

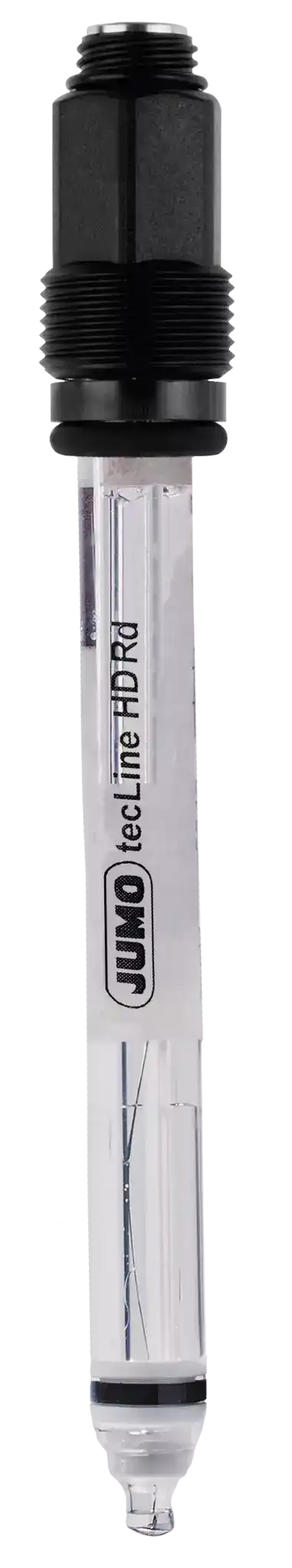

JUMO tecLine HD
Description
The electrode acquires the redox potential of water and aqueous-based media. A robust industrial electrode for the most demanding applications with increased dirt and poison load as well as oil-containing media.
Short Description
Redox combination electrodes
Price
€349.84
Availability
In Stock
Images
State
TOP_SELLER
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTg4OTk0IiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJBY3RpdmUgcGFydCIsInZhbHVlIjoiUGxhdGludW0gb3IgZ29sZCB0aXAgKMKxIDE1MDAgbVYpIiwic29ydE5vIjowfSx7Im5hbWUiOiJEaWFwaHJhZ20iLCJ2YWx1ZSI6IkNlcmFtaWMgZGlhcGhyYWdtLCBnbGFzcyBmaWJlciBkaWFwaHJhZ20sIFBURkUgcmluZyBkaWFwaHJhZ20sIGFubnVsYXIgZ2FwIG9yIGhvbGUgZGlhcGhyYWdtIiwic29ydE5vIjoxfSx7Im5hbWUiOiJGZWF0dXJlcyIsInZhbHVlIjoiRm9yIGluZHVzdHJpYWwgYXBwbGljYXRpb25zLCBhbHNvIGF2YWlsYWJsZSBpbiBoZWF2eS1kdXR5IGFuZCBoeWdpZW5pYyB2ZXJzaW9uIGZvciBkZW1hbmRpbmcgcHJvY2Vzc2VzOyBpbnRlZ3JhdGVkIHRlbXBlcmF0dXJlIHNlbnNvciAob3B0aW9uYWwgZm9yIHBIIGVsZWN0cm9kZSkiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkVsZWN0cm9kZSBoZWFkIiwidmFsdWUiOiJQbHVnIGhlYWQ7IHBsdWcgaGVhZCB3aXRoIGZpeGVkIGNhYmxlOyBzY3JldyBoZWFkIFBnMTMuNTsgc2NyZXcgaGVhZCBQZzEzLjUgd2l0aCBmaXhlZCBjYWJsZSIsInNvcnRObyI6M30seyJuYW1lIjoiVGVtcGVyYXR1cmUgcmFuZ2UiLCJ2YWx1ZSI6Ii0xMCB0byArMTM1wqDCsEMiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByZXNzdXJlIHJhbmdlIiwidmFsdWUiOiIwIHRvIDEzIGJhciIsInNvcnRObyI6NX0seyJuYW1lIjoiQXJlYXMgb2YgYXBwbGljYXRpb24iLCJ2YWx1ZSI6IlByb2Nlc3MgbWVhc3VyZW1lbnQsIGhpZ2ggdGVtcGVyYXR1cmUgYXBwbGljYXRpb25zLCBzdXNwZW5zaW9ucywgZ2FsdmFuaWMsIGNvYXRpbmdzLCB3YXN0ZXdhdGVyLCB1bHRyYS1wdXJlIHdhdGVyLCB3YXRlciwgYWx3YXlzIGNvbnRhbWluYXRlZCBtZWRpYSwgaHlnaWVuaWMgYW5kIHN0ZXJpbGUgYXBwbGljYXRpb25zLCBib2lsZXIgZmVlZCB3YXRlciIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tZGlhbW9uZCIsImRlc2NyaXB0aW9uIjoiRGlydC1yZXBlbGxpbmcgUFRGRSBkaWFwaHJhZ20iLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXBsYXliYWNrLW5leHQiLCJkZXNjcmlwdGlvbiI6IkxvdyBkaWZmdXNpb24gcG90ZW50aWFscyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24td2luZG93cyIsImRlc2NyaXB0aW9uIjoiRG91YmxlIGNoYW1iZXIgdmVyc2lvbiIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IMKxIDE1MDAgbVYiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlRlbXBlcmF0dXJlOiAwIHRvIDEzNcKgwrBDIiwic29ydE5vIjoxfSx7InRleHQiOiJQcm9jZXNzIHByZXNzdXJlIHVwIHRvIDEzIGJhciIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-diamond
Description
Dirt-repelling PTFE diaphragm
Icon
icon-playback-next
Description
Low diffusion potentials
Icon
icon-windows
Description
Double chamber version
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=188994
Active part
Platinum or gold tip (± 1500 mV)
Diaphragm
Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm
Features
For industrial applications, also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor (optional for pH electrode)
Electrode head
Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Temperature range
-10 to +135 °C
Pressure range
0 to 13 bar
Areas of application
Process measurement, high temperature applications, suspensions, galvanic, coatings, wastewater, ultra-pure water, water, always contaminated media, hygienic and sterile applications, boiler feed water
