Overview
title
Produkt Details
SKU
202610
Name

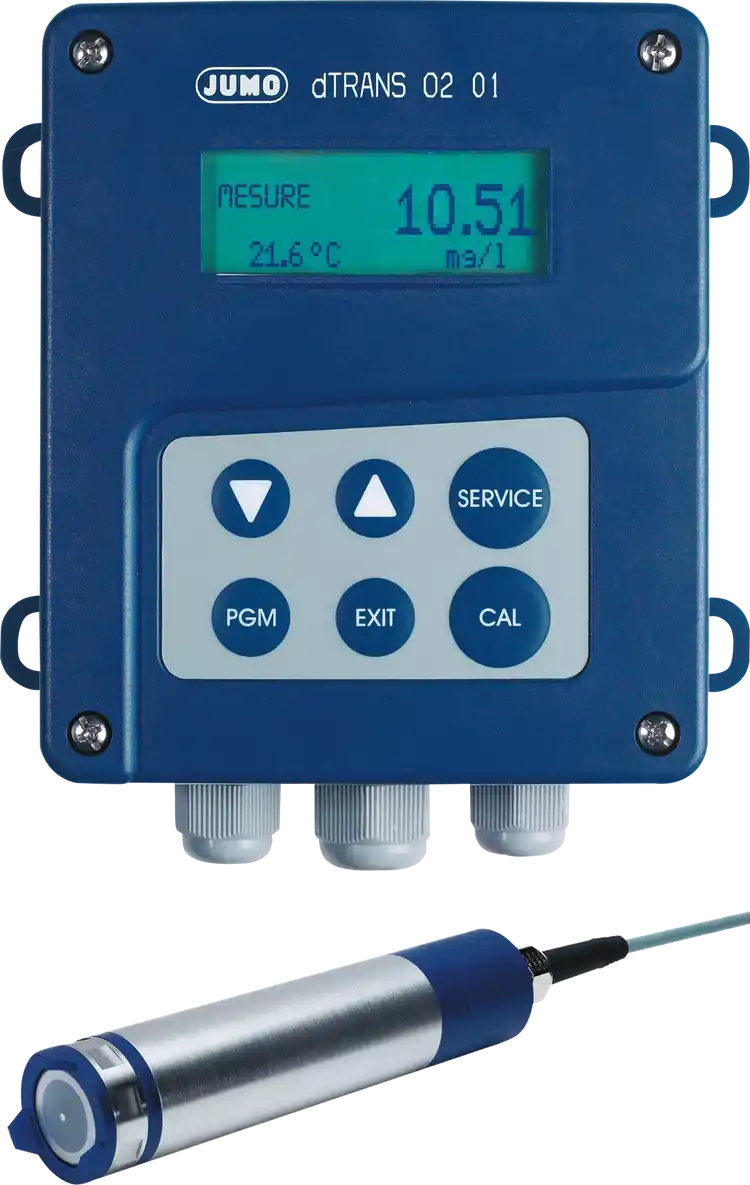

JUMO dTRANS O2 01
Description
The product is intended to measure dissolved oxygen in aqueous solutions. It provides a galvanically isolated output signal. The device can be configured via a setup program or an optionally available connection and operating unit.
Short Description
Transmitter and controller for dissolved oxygen
Price
€0.00
Availability
In Stock
Images
State
ARCHIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MzEzMiIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiIwIHRvIDUwwqBtZy9sIiwic29ydE5vIjowfSx7Im5hbWUiOiJNZWFzdXJpbmcgcHJpbmNpcGxlIiwidmFsdWUiOiJBbXBlcm9tZXRyaWMiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IkFjY3VyYWN5IiwidmFsdWUiOiLCsSAxwqAlIG9mIHRoZSBtZWFzdXJpbmcgcmFuZ2UgZW5kICgyMMKgbWcvbCkiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlRlbXBlcmF0dXJlIGNvbXBlbnNhdGlvbiIsInZhbHVlIjoiMMKgdG/CoDUwwqDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6IlJlc3BvbnNlIHRpbWUiLCJ2YWx1ZSI6InQ5MCA8IDE4MMKgcyAoYXQgMjXCoMKwQykiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IkZlYXR1cmVzIiwidmFsdWUiOiJSZWxpYWJsZSBvbmUtcG9pbnQgY2FsaWJyYXRpb24sIHR3by13aXJlIHRyYW5zbWl0dGVyLCBnYWx2YW5pYyBpc29sYXRpb24gb2YgbWVhc3VyaW5nIHNpZ25hbCAoRE8pIGFuZCBvdXRwdXQgc2lnbmFsIChtQSksIGVhc3kgY29ubmVjdGlvbiB0byBleGlzdGluZyBzeXN0ZW0gKGUuZy4gUExDKTsgY2FuIGJlIHVzZWQgaW4gbWF4aW11bSB2ZXJzaW9uIGFzIHN0YW5kLWFsb25lIHNvbHV0aW9uIiwic29ydE5vIjo1fSx7Im5hbWUiOiJPdXRwdXQiLCJ2YWx1ZSI6IjTCoHRvwqAyMMKgbUEiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IkFwcGxpY2F0aW9uIGFyZWFzIiwidmFsdWUiOiJEcmlua2luZyB3YXRlciwgd2FzdGV3YXRlciwgYW5kIGZpc2ggZmFybWluZyIsInNvcnRObyI6N31dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24ta2V5Ym9hcmQiLCJkZXNjcmlwdGlvbiI6IkVhc3ktdG8tdXNlIHByb2dyYW1taW5nIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1hZGQiLCJkZXNjcmlwdGlvbiI6IkNvbXBlbnNhdGlvbiBvZiB0ZW1wZXJhdHVyZSwgcHJlc3N1cmUsIHNhbGluaXR5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaHVmZmxlIiwiZGVzY3JpcHRpb24iOiJTYWZlIHNlcnZpY2UgYnkgZXhjaGFuZ2Ugb2YgbW9kdWxlcyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJNZWFzdXJpbmcgcmFuZ2U6IDDCoHRvwqA1MMKgbWcvbCIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUmVzcG9uc2UgdGltZTogdDkwIDwgMTgwwqBzIiwic29ydE5vIjoxfSx7InRleHQiOiJBY2N1cmFjeTogwrEgMcKgJSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-keyboard
Description
Easy-to-use programming
Icon
icon-add
Description
Compensation of temperature, pressure, salinity
Icon
icon-shuffle
Description
Safe service by exchange of modules
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=3132
Measuring range
0 to 50 mg/l
Measuring principle
Amperometric
Accuracy
± 1 % of the measuring range end (20 mg/l)
Temperature compensation
0 to 50 °C
Response time
t90 < 180 s (at 25 °C)
Features
Reliable one-point calibration, two-wire transmitter, galvanic isolation of measuring signal (DO) and output signal (mA), easy connection to existing system (e.g. PLC); can be used in maximum version as stand-alone solution
Output
4 to 20 mA
Application areas
Drinking water, wastewater, and fish farming
