Produkt Details
SKU
403028
Name

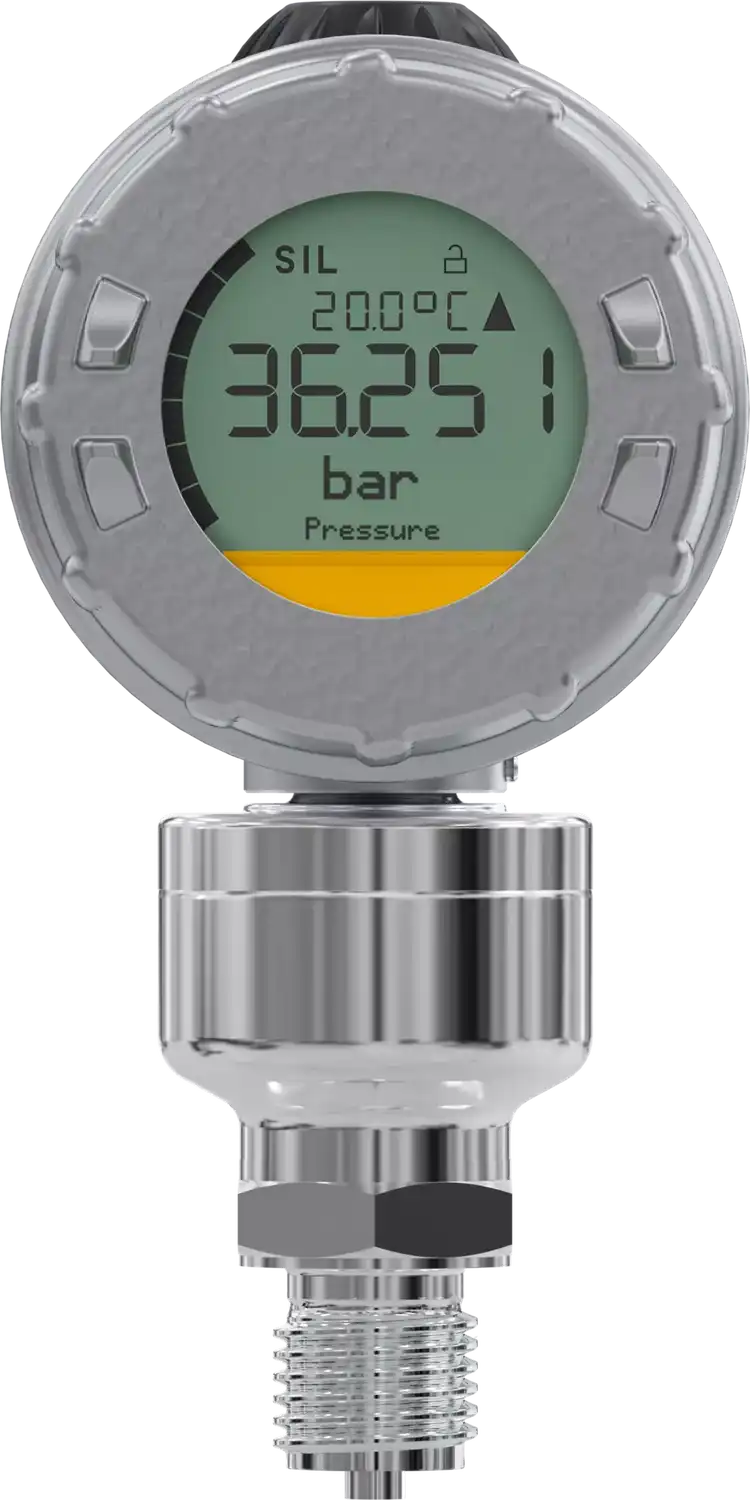

JUMO SIRAS P21 AR
Description
The pressure transmitter reliably and accurately measures relative and absolute pressure of liquids, steam, and gases. It was developed for use in safety-related plants with Safety Integrity Level (SIL) according to DIN EN 61508. As a result, the transmitter is perfectly suited for safety measuring chains in the process industry and mechanical engineering.
Short Description
Process pressure transmitter with SIL/PL
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX2thbjByZmV0MXAxM3AzbmQ2NDU5Z3JnMTBnP2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiSnVtb1NhZmV0eVBlcmZvcm1hbmNlX0RFLm1wNCIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX2thbjByZmV0MXAxM3AzbmQ2NDU5Z3JnMTBnLy1GV0VCUCIsInNvcnQiOjB9LHsic3JjIjoiaHR0cHM6Ly9kbzJwMXE5Yjkyc2dwLmNsb3VkZnJvbnQubmV0L2Fzc2V0LzM1MzYwNDg4NDMxOS92aWRlb19yNHJscWpydmd0MnIzYnVvbnBscW45dTgxbT9jb250ZW50LWRpc3Bvc2l0aW9uPWlubGluZSIsImFsdCI6IjQwMzAyNF8yOF9TSVJBU19ERS5tcDQiLCJ0aHVtYm5haWxVcmwiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvcmVuZGl0aW9uLzM1MzYwNDg4NDMxOS92aWRlb19yNHJscWpydmd0MnIzYnVvbnBscW45dTgxbS8tRldFQlAiLCJzb3J0IjowfV0sImRhdGFTaGVldFVybCI6Imh0dHBzOi8vd3d3Lmp1bW8ubmV0L2F0dGFjaG1lbnRzL0pVTU8vYXR0YWNobWVudGRvd25sb2FkP2lkPTExMTU3OTAiLCJiZW5lZml0cyI6W10sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6Ik1lYXN1cmluZyByYW5nZSIsInZhbHVlIjoiVXAgdG8gMTAwwqBiYXIiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkxpbmVhcml0eSIsInZhbHVlIjoiMC4wNSAlIiwic29ydE5vIjoxfSx7Im5hbWUiOiJPdXRwdXRzIiwidmFsdWUiOiI0IHRvIDIwwqBtQSwgdHdvLXdpcmU7IEhBUlTCriAoNCBjb25maWd1cmFibGUgbWVhc3VyZWQgdmFsdWVzKSIsInNvcnRObyI6Mn0seyJuYW1lIjoiUHJvY2VzcyBjb25uZWN0aW9uIiwidmFsdWUiOiJUaHJlYWQiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik1hdGVyaWFscyBpbiBjb250YWN0IHdpdGggdGhlIG1lZGl1bSIsInZhbHVlIjoiU3RhaW5sZXNzIHN0ZWVsICgzMTZMKSIsInNvcnRObyI6NH0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJTSUzCoDIvU0lMwqAzIGFjY29yZGluZyB0byBESU4gRU4gNjE1MDgsIERJTiBFTiAxMzg0OSAoUEwpLCBhbmQgUEVEIChQRUQgMjAxNC82OC9FVSBpbiBjb21iaW5hdGlvbiB3aXRoIEpVTU8gc2FmZXR5TSBTVEIvU1RXIGFuZCB0cmFuc21pdHRlciBwb3dlciBzdXBwbHkgdW5pdCkiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlNwZWNpYWwgZmVhdHVyZXMiLCJ2YWx1ZSI6IkhpZ2hlc3QgcHJlY2lzaW9uOyBwcm9ncmFtbWFibGU7IHNlbnNvciBtYWRlIG9mIHN0YWlubGVzcyBzdGVlbDsgc3RhaW5sZXNzIHN0ZWVsIGNhc2U7IGNhbiBiZSB1c2VkIHdpdGhpbiBhIHNhZmV0eSBjaGFpbiwgZS5nLiB3aXRoIEpVTU8gc2FmZXR5TSBTVEIvU1RXOyBjb21wcmVoZW5zaXZlIGVycm9yIGRpYWdub3NpcyIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tc2hpZWxkIiwiZGVzY3JpcHRpb24iOiJTYWZldHkgSW50ZWdyaXR5IExldmVsIChTSUzCoDIvU0lMwqAzKSwgUEzCoGMvUEzCoGQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLW1vbml0b3IiLCJkZXNjcmlwdGlvbiI6IkxvbmctdGVybSBzdGFiaWxpdHkgb2YgPMKgMC4xwqAlIHBlciB5ZWFyIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1yZWQtY2hlY2siLCJkZXNjcmlwdGlvbiI6IkxpbmVhcml0eTogMC4wNcKgJSIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJVcCB0byAxMDDCoGJhciIsInNvcnRObyI6MH0seyJ0ZXh0IjoiTGluZWFyaXR5OiAwLjA1wqAlIiwic29ydE5vIjoxfSx7InRleHQiOiJTYWZldHkgSW50ZWdyaXR5IExldmVsIChTSUzCoDIvU0lMwqAzKSwgUEzCoGMvUEzCoGQiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-shield
Description
Safety Integrity Level (SIL 2/SIL 3), PL c/PL d
Icon
icon-monitor
Description
Long-term stability of < 0.1 % per year
Icon
icon-red-check
Description
Linearity: 0.05 %
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1115790
Measuring range
Up to 100 bar
Linearity
0.05 %
Outputs
4 to 20 mA, two-wire; HART® (4 configurable measured values)
Process connection
Thread
Materials in contact with the medium
Stainless steel (316L)
Approvals
SIL 2/SIL 3 according to DIN EN 61508, DIN EN 13849 (PL), and PED (PED 2014/68/EU in combination with JUMO safetyM STB/STW and transmitter power supply unit)
Special features
Highest precision; programmable; sensor made of stainless steel; stainless steel case; can be used within a safety chain, e.g. with JUMO safetyM STB/STW; comprehensive error diagnosis
