概述
title
Produkt Details
SKU
705143
Name

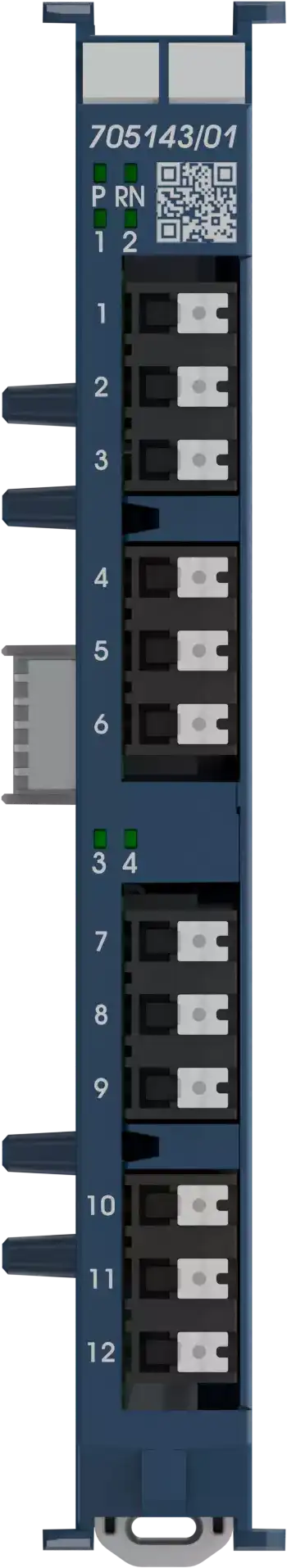

JUMO I/O系统数字输出模块，4通道
Description
作为JUMO I/O系统的一部分，该模块能够提供16个用于JUMO variTRON自动化系统使用的数字输出通道。当使用JUMO系统总线时，也可作为其他PLC系统的数字输出使用。为了提高调试效率，细长的DIN导轨设备提供标准的PUSH IN端子带，只需将模块插入一起即可连接到工作电压和系统总线。
Short Description
JUMO variTRON自动化系统模块
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM3Nzk5MCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoi6L6T5Ye6IiwidmFsdWUiOiI05Liq57un55S15Zmo6L6T5Ye66YCa6YGT77yI5q+P5Liq6YCa6YGT5Li66IO95aSf6L+e5o6lQUMyMzBW5oiWREMzMFYvM0HnmoTovazmjaLop6bngrnvvInpgJrov4fns7vnu5/mgLvnur/kvb/nlKjmlbDlrZfkv6Hlj7fmjqfliLbovpPlh7oiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IuaOpee6v+aWueW8jyIsInZhbHVlIjoi5L2N5LqO5YmN56uv55qEUFVTSCBJTuaOpee6v+err+WtkCIsInNvcnRObyI6MX0seyJuYW1lIjoi54m554K5IiwidmFsdWUiOiLpgJrov4dMRUTnga/ovbvmnb7kuobop6PlvIDlhbPnirbmgIHvvJvmm7TmjaLmqKHlnZflkI7og73lpJ/oh6rliqjphY3nva7vvIjljbPmj5LljbPnlKjvvInvvJvov5DooYznlLXljovlkozns7vnu5/mgLvnur/lj6/ku6XpgJrov4fnroDljZXmj5LmjqXliLDlhbbku5bmqKHlnZfkuIrnmoTmlrnlvI/lv6vpgJ/ov57mjqXvvJvoioLnnIHnqbrpl7TnmoTorr7orqHvvJvog73lpJ/kuI52YXJpVFJPTuezu+e7n+OAgeWFtuS7llBMQ+aIluaXqeacn0kvT+aooeWdl++8iDcwNTB4eO+8ieWFseWQjOi/kOihjO+8m+mAmui/h+WPr+mAieeahOi/nuaOpei9qOmBk+WinuW8uuaKl+mch+aAp+OAgiIsInNvcnRObyI6Mn0seyJuYW1lIjoi5L6b55S155S15Y6LIiwidmFsdWUiOiJEQyAyNCBWICsyNS8tMjAgJSwg77yM6YCa6L+H5bim57O757uf5qih5Z2XNzA1MTcx77yIdmFyaVRST041MDDvvInmiJYz6YCa6YGT5pWw5o2u5Lqk5o2i5qih5Z2XNzA1MTYz77yISlVNTyB2YXJpVFJPTjMwMO+8jEpVTU8gdmFyaVRST04gNTAwIHRvdWNo77yM56ys5LiJ5pa55Lqn5ZOB77yJ55SxQ1BV5L6b55S144CCIiwic29ydE5vIjozfSx7Im5hbWUiOiLlpJblo7MiLCJ2YWx1ZSI6IueUqOS6juaOp+WItuafnOWGhURJTuWvvOi9qOWuieijheeahOWhkeaWmeWkluWjsyIsInNvcnRObyI6NH0seyJuYW1lIjoi6Ziy5oqk562J57qnIiwidmFsdWUiOiJJUDIwIiwic29ydE5vIjo1fSx7Im5hbWUiOiLorqTor4EiLCJ2YWx1ZSI6IkROViwgVUwiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IueOr+Wig+a4qeW6puiMg+WbtCIsInZhbHVlIjoiLTIwIH4gKzU1wqDCsEMiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IuWwuuWvuCAo5a694oCvw5figK/pq5jigK/Dl+KAr+a3sSkiLCJ2YWx1ZSI6IjEyIMOXIDEwNi43IMOXIDEwMcKgbW0gKOS4jeWQq+i/nuaOpeWFg+S7tikiLCJzb3J0Tm8iOjh9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLW1pbmltaXplLWFsdCIsImRlc2NyaXB0aW9uIjoi55yB56m66Ze06K6+6K6hIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi13cmFuY2giLCJkZXNjcmlwdGlvbiI6Iuiwg+ivleeugOWNlSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYW5zY2hsdWVzc2UiLCJkZXNjcmlwdGlvbiI6IuS9v+eUqOeBtea0uyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiI05Liq57un55S15Zmo6L6T5Ye677yI6L2s5o2i6Kem54K577yJIiwic29ydE5vIjowfSx7InRleHQiOiLph4fnlKhQVVNIIElO5oqA5pyv55qE5o6l57q/56uv5a2QIiwic29ydE5vIjoxfSx7InRleHQiOiLovazmjaLop6bngrkgQUMgMjMwwqBWIC8gREMgMzDCoFY7IDPCoEEiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-minimize-alt
Description
省空间设计
Icon
icon-wranch
Description
调试简单
Icon
icon-anschluesse
Description
使用灵活
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1377990
输出
4个继电器输出通道（每个通道为能够连接AC230V或DC30V/3A的转换触点）通过系统总线使用数字信号控制输出
接线方式
位于前端的PUSH IN接线端子
特点
通过LED灯轻松了解开关状态；更换模块后能够自动配置（即插即用）；运行电压和系统总线可以通过简单插接到其他模块上的方式快速连接；节省空间的设计；能够与variTRON系统、其他PLC或早期I/O模块（7050xx）共同运行；通过可选的连接轨道增强抗震性。
供电电压
DC 24 V +25/-20 %, ，通过带系统模块705171（variTRON500）或3通道数据交换模块705163（JUMO variTRON300，JUMO variTRON 500 touch，第三方产品）由CPU供电。
外壳
用于控制柜内DIN导轨安装的塑料外壳
防护等级
IP20
认证
DNV, UL
环境温度范围
-20 ~ +55 °C
尺寸 (宽 × 高 × 深)
12 × 106.7 × 101 mm (不含连接元件)
