Produkt Details
SKU
705163
Name

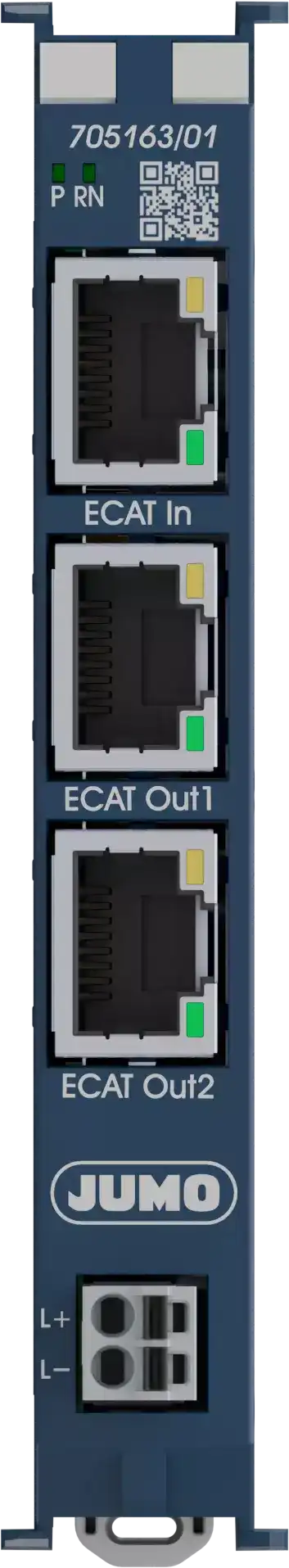

JUMO I/O系统通信模块，3通道
Description
该模块作为JUMO I/O系统的一部分，可为JUMO variTRON 300和JUMO variTRON 500 touch的I/O系统提供工作电压和系统总线。I/O模块可直接从侧面简单插入使用。若其他PLC支持JUMO系统总线，该模块亦可与其配合使用。系统总线扩展功能支持分布式模块配置，最远距离可达100米。
Short Description
JUMO variTRON自动化系统模块
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM3ODA0NyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoi5o6l5Y+jIiwidmFsdWUiOiLmraPpnaIz5LiqUko0NeaOpeWPozog57O757uf5oC757q/ICgx6LevRUNBVOi+k+WFpSwgMui3r0VDQVTovpPlh7opIiwic29ydE5vIjowfSx7Im5hbWUiOiLmjqXnur/mlrnlvI8iLCJ2YWx1ZSI6IuS9jeS6juWJjeerr+eahFBVU0ggSU7mjqXnur/nq6/lrZDvvIznlKjkuo5JL0/mqKHlnZfnmoTlpJbpg6jnlLXljovkvpvnlLUiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IueJueeCuSIsInZhbHVlIjoi5pSv5oyBSlVNTyB2YXJpVFJPTiAzMDAvNTAwIHRvdWNo5Y+K5YW25LuWUExD77yI6YCa6L+HSlVNT+ezu+e7n+aAu+e6v++8iei/kOihjEpVTU8gSS9P57O757uf77yb5YW85a655pep5pyfSlVNTyBJL0/mqKHlnZfvvIg3MDUweHjvvInvvJvpgJrkv6HmqKHlnZfpl7TmnIDov5wxMDDnsbPliIbluIPlvI/pg6jnvbLvvJvmlK/mjIHpgJrov4fml4vovaznvJbnoIHlvIDlhbPov5vooYzlr7vlnYDvvIjnibnmrorlupTnlKjvvInvvJvliY3pnaLmnb/mjqXlj6PnlLXmsJTpmpTnprvvvJvmj5Dkvpvlt6XkvZznlLXmupDvvJvmqKHlnZfljbPmj5LljbPov57lrp7njrDnlLXmupDkuI7ns7vnu5/mgLvnur/lv6vpgJ/mjqXnur/vvJsy5LiqTEVE5pi+56S65qih5Z2X54q25oCB77yI6YCa55S1L+i/kOihjO+8ie+8m+WPr+mAiei/nuaOpeWvvOi9qOWinuW8uuaKl+aMr+WKqOS4juWGsuWHu+aAp+iDveOAgiIsInNvcnRObyI6Mn0seyJuYW1lIjoi5L6b55S155S15Y6LIiwidmFsdWUiOiJEQ8KgMjTCoFYgKzI1Ly0yMMKgJSIsInNvcnRObyI6M30seyJuYW1lIjoi5aSW5aOzIiwidmFsdWUiOiLnlKjkuo7mjqfliLbmn5zlhoVESU7lr7zovajlronoo4XnmoTloZHmlpnlpJblo7MiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IumYsuaKpOetiee6pyIsInZhbHVlIjoiSVAyMCIsInNvcnRObyI6NX0seyJuYW1lIjoi6K6k6K+BIiwidmFsdWUiOiJETlYsIFVMIiwic29ydE5vIjo2fSx7Im5hbWUiOiLnjq/looPmuKnluqbojIPlm7QiLCJ2YWx1ZSI6Ii0yMCB+ICs1NcKgwrBDIiwic29ydE5vIjo3fSx7Im5hbWUiOiLlsLrlr7ggKOWuveKAr8OX4oCv6auY4oCvw5figK/mt7EpIiwidmFsdWUiOiIxNSDDlyAxMDYuNyDDlyAxMDHCoG1tICjkuI3lkKvov57mjqXlhYPku7YpIiwic29ydE5vIjo4fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1mbG93LXRyZWUiLCJkZXNjcmlwdGlvbiI6IuaUr+aMgeWIhuW4g+W8j+aooeWdl+mFjee9riIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tc3RhY2tzIiwiZGVzY3JpcHRpb24iOiJJL0/mqKHlnZflj6/ovbvmnb7lr7npvZAiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiLpgJrov4cz5LiqUko0NeaOpeWPo+aJqeWxleezu+e7n+aAu+e6vyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiIz5Liq57O757uf5oC757q/6L+e5o6lIiwic29ydE5vIjowfSx7InRleHQiOiLnlLXpmpTnprvmjqXlj6MiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IuS+m+eUteeUteWOiyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-flow-tree
Description
支持分布式模块配置
Icon
icon-stacks
Description
I/O模块可轻松对齐
Icon
icon-anschluesse
Description
通过3个RJ45接口扩展系统总线
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1378047
接口
正面3个RJ45接口: 系统总线 (1路ECAT输入, 2路ECAT输出)
接线方式
位于前端的PUSH IN接线端子，用于I/O模块的外部电压供电
特点
支持JUMO variTRON 300/500 touch及其他PLC（通过JUMO系统总线）运行JUMO I/O系统；兼容早期JUMO I/O模块（7050xx）；通信模块间最远100米分布式部署；支持通过旋转编码开关进行寻址（特殊应用）；前面板接口电气隔离；提供工作电源；模块即插即连实现电源与系统总线快速接线；2个LED显示模块状态（通电/运行）；可选连接导轨增强抗振动与冲击性能。
供电电压
DC 24 V +25/-20 %
外壳
用于控制柜内DIN导轨安装的塑料外壳
防护等级
IP20
认证
DNV, UL
环境温度范围
-20 ~ +55 °C
尺寸 (宽 × 高 × 深)
15 × 106.7 × 101 mm (不含连接元件)
