Produkt Details
SKU
707060
Name

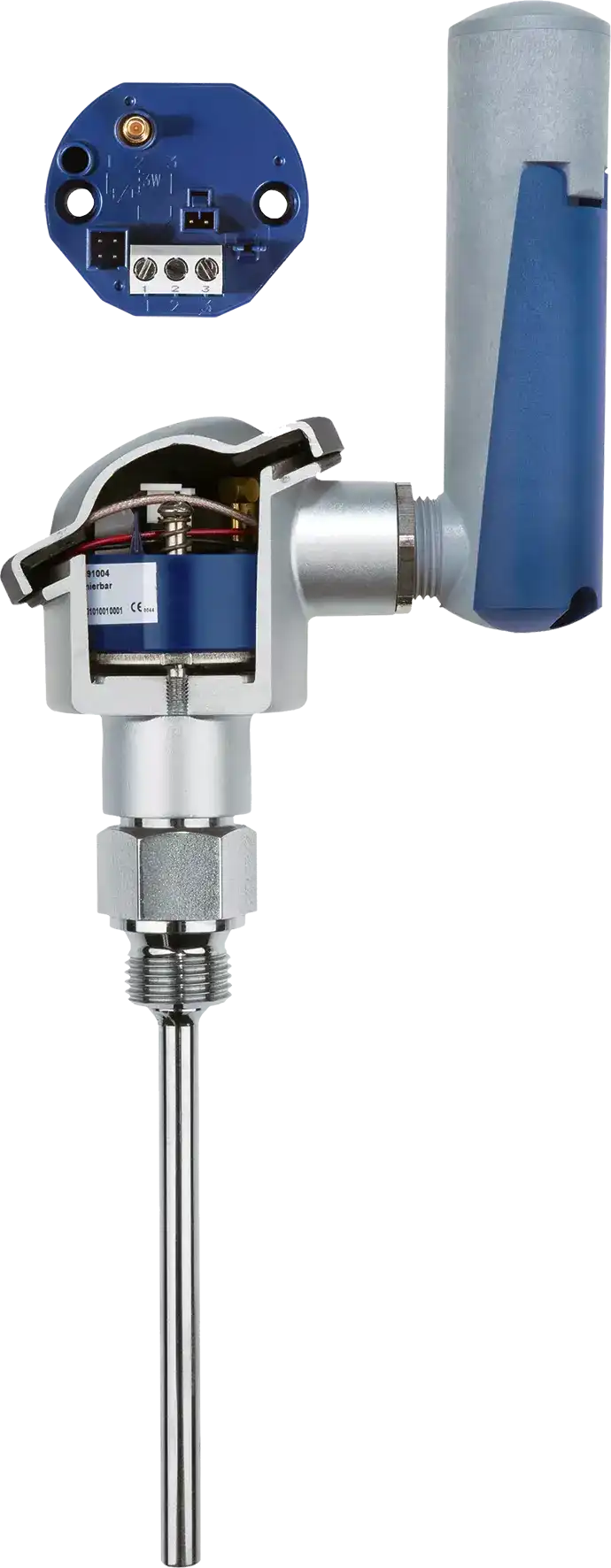

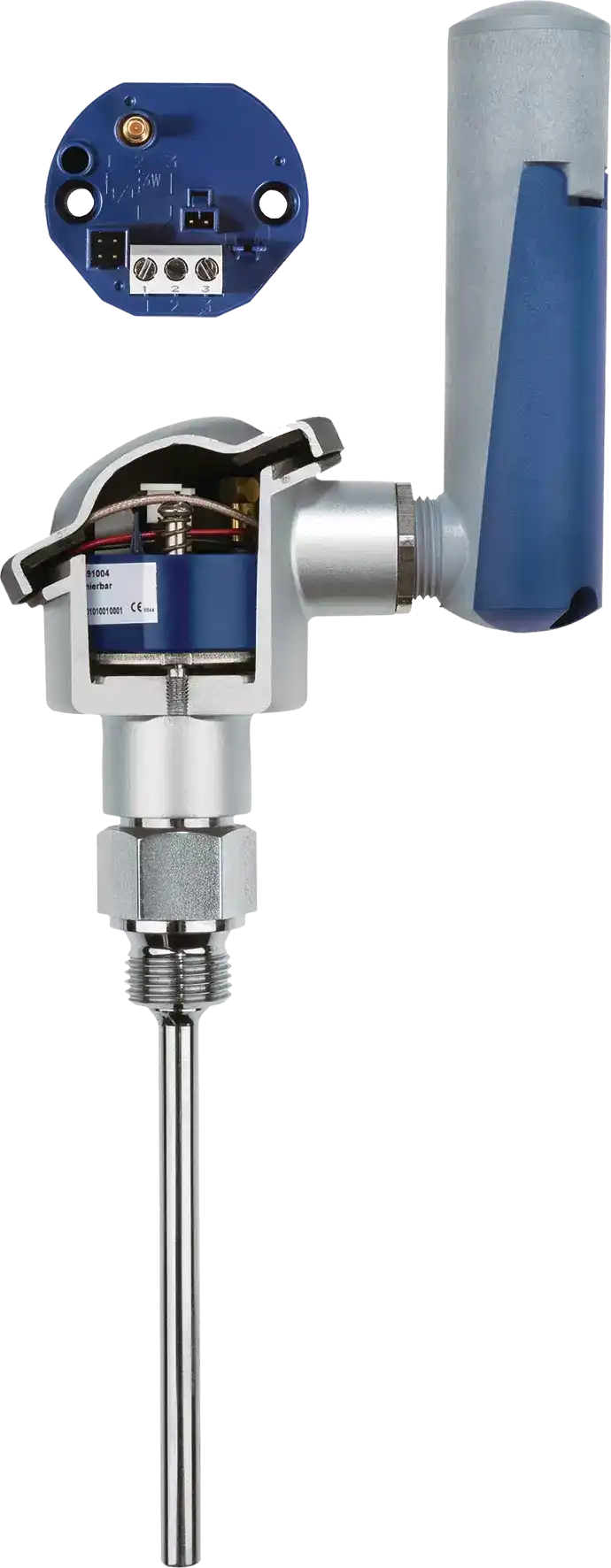

JUMO Wtrans B
Description
无线变送器测量温度和其他过程变量。天线电池盒紧凑型设计可以轻松安装在DIN标准B型接线盒上。
Short Description
头部无线数据传输变送器
Price
€379.23
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NzYyOTcxIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiLnlLXmtYHpmpTnprsiLCJ2YWx1ZSI6Ij4gMTAga1YiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IuWuieijhSIsInZhbHVlIjoi5Zyo56uv5a2Q5aS05Lit77yMQiDlnosiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Iui+k+WFpSIsInZhbHVlIjoiUHQxMDDjgIFQdDUwMOOAgVB0MTAwMOOAgeeUtemYu+WPmOmAgeWZqOOAgeeUtemYuy/nlLXkvY3lmajvvIjkuKTnur/jgIHkuInnur/jgIHlm5vnur/nlLXot6/vvInjgIFS44CBU+OAgULjgIFK44CBVOOAgUXjgIFL44CBTuOAgUzjgIFV44CBQTHjgIFDICwgRCwgMCB0byA1MCBtViwgMCg0KSB0byAyMCBtQSAo6YCa6L+H5aSW6YOo5YiG5rWB5ZmoKSIsInNvcnRObyI6Mn0seyJuYW1lIjoi546v5aKD5rip5bqmIiwidmFsdWUiOiItMzAg6IezICs4NSDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Iui+k+WHuiIsInZhbHVlIjoi5Z+65LqO5peg57q/77yM6Zyy5aSp6IyD5Zu05Y+v6L6+IDMwMCBt77yI5Lyg6L6T6aKR546HIDg2OC40IE1Ieu+8iSIsInNvcnRObyI6NH0seyJuYW1lIjoi54m56Imy5Yqf6IO9IiwidmFsdWUiOiLkvKDovpPpl7TpmpTkuLogMSDliLAgMzYwMCBz77yM5a6i5oi354m55a6a55qE57q/5oCn5YyWIiwic29ydE5vIjo1fSx7Im5hbWUiOiLmoKHlh4bnsr7luqYiLCJ2YWx1ZSI6IsKxIDAuMSAlIiwic29ydE5vIjo2fSx7Im5hbWUiOiLnrKblkIggTkFNVVIiLCJ2YWx1ZSI6Ik5FMjEiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IumFjee9riIsInZhbHVlIjoi6YCa6L+H55S16ISR5o6l5Y+jIiwic29ydE5vIjo4fSx7Im5hbWUiOiLnlLXljovkvpvlupQiLCJ2YWx1ZSI6IjMuNiBWIOmUgueUteaxoO+8iEFBIOWPt+eUteaxoO+8iSIsInNvcnRObyI6OX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24ta2V5Ym9hcmQiLCJkZXNjcmlwdGlvbiI6IuWPr+mFjee9rueahCBQQyDorr7nva7nqIvluo8iLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXJvdXRlciIsImRlc2NyaXB0aW9uIjoi5Zu65a6a5ZKM56e75Yqo5rWL6YePIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaWduYWwtYWx0IiwiZGVzY3JpcHRpb24iOiLml6DlubLmibDkvKDovpMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0Ijoi5bCE6aKR77yaODY4LjQgTUh6Iiwic29ydE5vIjowfSx7InRleHQiOiLkvKDovpPpl7TpmpQgKDEg5YiwIDM2MDAgcykiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IuiMg+WbtOWPr+i+viAzMDAgbSIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-keyboard
Description
可配置的 PC 设置程序
Icon
icon-router
Description
固定和移动测量
Icon
icon-signal-alt
Description
无干扰传输
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=762971
电流隔离
> 10 kV
安装
在端子头中，B 型
输入
Pt100、Pt500、Pt1000、电阻变送器、电阻/电位器（两线、三线、四线电路）、R、S、B、J、T、E、K、N、L、U、A1、C , D, 0 to 50 mV, 0(4) to 20 mA (通过外部分流器)
环境温度
-30 至 +85 °C
输出
基于无线，露天范围可达 300 m（传输频率 868.4 MHz）
特色功能
传输间隔为 1 到 3600 s，客户特定的线性化
校准精度
± 0.1 %
符合 NAMUR
NE21
配置
通过电脑接口
电压供应
3.6 V 锂电池（AA 号电池）
