概述
title
Produkt Details
SKU
902250
Name

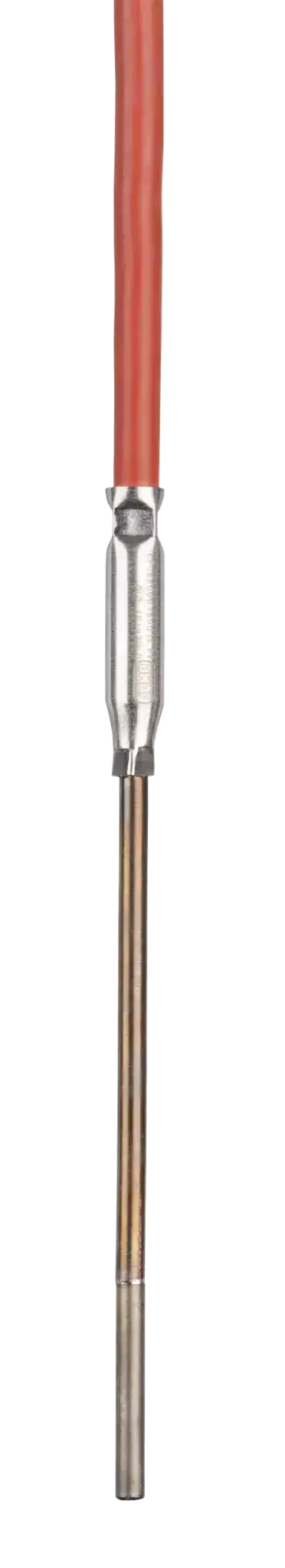

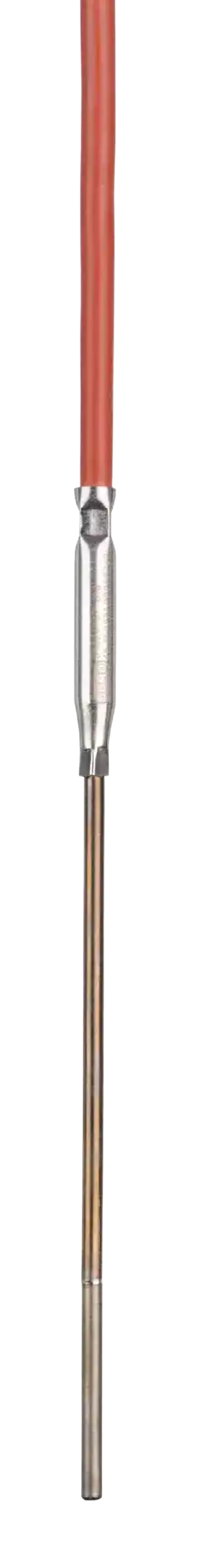

铠装热电阻温度传感器
Description
高温氧化镁绝缘电阻温度计因其灵活性和易于安装而被用于化工厂、发电厂、管道和发动机制造。
Short Description
带连接电缆，符合 DIN EN 60751
Availability
In Stock
Images
State
LIVE
Variants
Diameter prot. tube (mm)
Insertion length (mm)
- 1.000000000000000E+02 ✓
- 1000,00 ✓
- 2.000000000000000E+02 ✓
- 3.000000000000000E+02 ✓
- 5.000000000000000E+02 ✓
Connecting line length in mm (mm)
Measuring insert
Operating temperature in °C
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9Mjg4OCIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoi6L+e5o6l55S157yGIiwidmFsdWUiOiJQVkPjgIHnoYXog7bjgIHogZrlm5vmsJ/kuZnng6/jgIHph5HlsZ7nvZEiLCJzb3J0Tm8iOjB9LHsibmFtZSI6Iui/nuaOpSIsInZhbHVlIjoi56uv5a2Q77yM5aSa6ZKI6L+e5o6l5ZmoIiwic29ydE5vIjoxfSx7Im5hbWUiOiLov4fnqIvov57mjqUiLCJ2YWx1ZSI6Iuieuue6uei/nuaOpSBHMS8y44CBRzEvNOOAgUczLzjjgIFNOOOAgTEvMi0xNCBOUFQiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Iua4qeW6puS8oOaEn+WZqCIsInZhbHVlIjoiUHQxMDAsIFB0MTAwMCIsInNvcnRObyI6M30seyJuYW1lIjoi5L+d5oqk566hIiwidmFsdWUiOiLkuI3plIjpkqIgMS40NTQxIiwic29ydE5vIjo0fSx7Im5hbWUiOiLlk43lupTml7bpl7QiLCJ2YWx1ZSI6IuWcqOawtOS4rSAwLjQgbS9z77yb5Zyo56m65rCU5LitIDMgbS9zIiwic29ydE5vIjo1fSx7Im5hbWUiOiLnibnmrorlip/og70iLCJ2YWx1ZSI6Iui9r+mToOijhSvmipflhrLlh7vkvKDmhJ/lhYPku7YiLCJzb3J0Tm8iOjZ9LHsibmFtZSI6IumAiemhuSIsInZhbHVlIjoi5Y2V5oiW5Y+MIFJURCDmuKnluqbmjqLlpLTvvJvkuKTnur/jgIHkuInnur/miJblm5vnur/nlLXot68iLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLWZsb3ctbGluZSIsImRlc2NyaXB0aW9uIjoi5p+U5oCn5oqk5aWX55S157yGIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zaGllbGQiLCJkZXNjcmlwdGlvbiI6IumYsumch+a1i+mHj+aPkuiKryIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tbWF4aW1pemUtYWx0IiwiZGVzY3JpcHRpb24iOiLlj6/lrprliLbmj5Lmt7EiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0Ijoi5rip5bqm77yaLTUwICgtMjAwKSDoh7MgKzYwMCDCsEMiLCJzb3J0Tm8iOjB9LHsidGV4dCI6Iua4qeW6puS8oOaEn+WZqO+8mlB0MTAwIOaIliBQdDEwMDAiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IuWTjeW6lOaXtumXtO+8mnQwLjUgICAwLjcgcyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-flow-line
Description
柔性护套电缆
Icon
icon-shield
Description
防震测量插芯
Icon
icon-maximize-alt
Description
可定制插深
title
技术规格
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=2888
连接电缆
PVC、硅胶、聚四氟乙烯、金属网
连接
端子，多针连接器
过程连接
螺纹连接 G1/2、G1/4、G3/8、M8、1/2-14 NPT
温度传感器
Pt100, Pt1000
保护管
不锈钢 1.4541
响应时间
在水中 0.4 m/s；在空气中 3 m/s
特殊功能
软铠装+抗冲击传感元件
选项
单或双 RTD 温度探头；两线、三线或四线电路
