Name

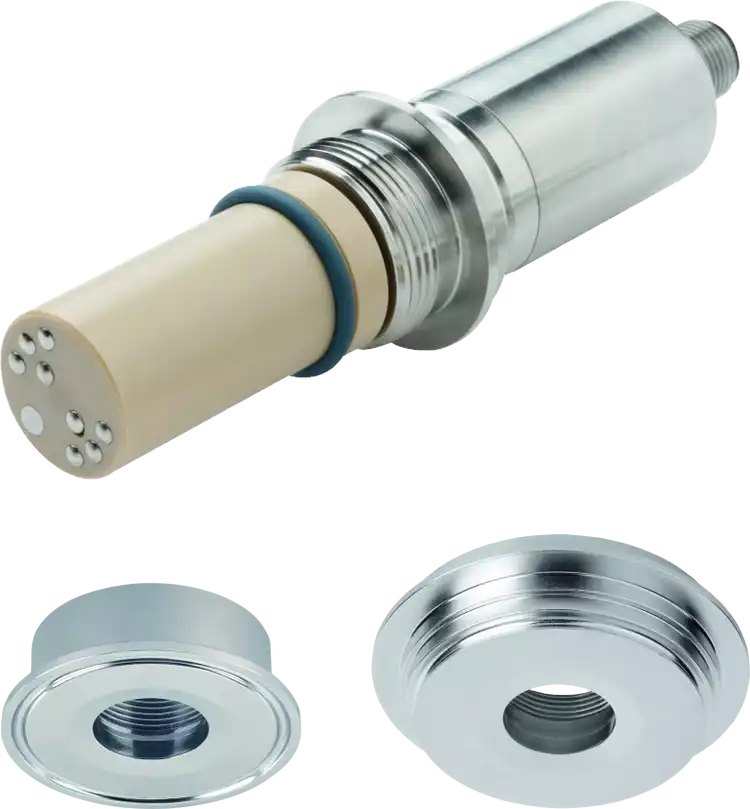

JUMO tecLine CR-4P
Description
These conductivity sensors are suitable for the measurement of electrolytic conductivity in aqueous solutions. In contrast to customary two-electrode sensors, they offer application-related advantages in the range between medium and high conductance.
Short Description
Conductive four-electrode conductivity sensor
Availability
In Stock
Images
State
LIVE
Variants
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjIyMSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiIxwqDOvFMvY20gdG8gNjAwwqBtUy9jbSIsInNvcnRObyI6MH0seyJuYW1lIjoiRWxlY3Ryb2RlIG1hdGVyaWFsIiwidmFsdWUiOiJTdGFpbmxlc3Mgc3RlZWwgKDEuNDQzNSkiLCJzb3J0Tm8iOjF9LHsibmFtZSI6IlByb2Nlc3MgY29ubmVjdGlvbiIsInZhbHVlIjoiSlVNTyBQRUtBIChoeWdpZW5pYyBwcm9jZXNzIGNvbm5lY3Rpb24pIHByb2Nlc3MgY29ubmVjdGlvbiBhZGFwdGVyIGF2YWlsYWJsZTogVkFSSVZFTlTCriBETsKgNDAgdG8gMTI1LCBzdGFpbmxlc3Mgc3RlZWwgMS40NDM1ICgzMTZMKTsgY2xhbXAgRE7CoDI1LzMyLzQwIGFuZCBETsKgNTAsIHN0YWlubGVzcyBzdGVlbCAxLjQ0MzUgKDMxNkwpOyBhc2VwdGljIEROwqA0MCBhbmQgRE7CoDUwLCBzdGFpbmxlc3Mgc3RlZWwgMS40NDM1ICgzMTZMKTsgYXNlcHRpYyBOS1PCoEROwqA0MCwgc3RhaW5sZXNzIHN0ZWVsIDEuNDQzNSAoMzE2TCkiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IlByb2Nlc3MgcHJlc3N1cmUiLCJ2YWx1ZSI6IjE2wqBiYXIgYXQgMjXCoMKwQzsgNsKgYmFyIGF0IC0xMMKgwrBDIGFuZCArMTQwwqDCsEMiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik9wZXJhdGluZyB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiLTEwIHRvICsxMjDCoMKwQywgdGVtcG9yYXJpbHkgMTQwwqDCsEMgKHN0ZXJpbGl6YXRpb24pIiwic29ydE5vIjo0fSx7Im5hbWUiOiJDZWxsIGNvbnN0YW50IiwidmFsdWUiOiJLID0gMC4zwqB0b8KgMC40Iiwic29ydE5vIjo1fSx7Im5hbWUiOiJGZWF0dXJlcyIsInZhbHVlIjoiVmVyeSB3aWRlIG1lYXN1cmluZyByYW5nZTsgQ0lQIGFuZCBTSVAtY2FwYWJpbGl0eTsgaHlnaWVuaWMgZGVzaWduOyBpbmNsdWRlcyBxdWFsaXR5IGNlcnRpZmljYXRlIiwic29ydE5vIjo2fSx7Im5hbWUiOiJBcmVhcyBvZiBhcHBsaWNhdGlvbiIsInZhbHVlIjoiUmluc2luZyBwcm9jZXNzZXMgaW4gdGhlIGZvb2QgYW5kIGJldmVyYWdlIGluZHVzdHJ5LCBwaGFybWFjZXV0aWNhbHMgYW5kIGJpb3RlY2hub2xvZ3kgc2VjdG9yOyBDSVAgYW5kIFNJUCBhcHBsaWNhdGlvbnMiLCJzb3J0Tm8iOjd9XSwiaGlnaGxpZ2h0cyI6W3siaWNvblRleHQiOiJpY29uLXNoaWVsZCIsImRlc2NyaXB0aW9uIjoiSHlnaWVuaWMgZGVzaWduIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1kaWFtb25kIiwiZGVzY3JpcHRpb24iOiJXaWRlIG1lYXN1cmluZyByYW5nZSBwb3NzaWJsZSIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tYW5zY2hsdWVzc2UiLCJkZXNjcmlwdGlvbiI6Ikh5Z2llbmljIHByb2Nlc3MgY29ubmVjdGlvbnMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTWVhc3VyaW5nIHJhbmdlOiAxwqDCtVMvY20gdG8gNjAwwqBtUy9jbSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUHJvY2VzcyBwcmVzc3VyZSB1cCB0byAxNsKgYmFyIiwic29ydE5vIjoxfSx7InRleHQiOiJDZWxsIGNvbnN0YW50IEsgPSAwLjPCoHRvwqAwLjQiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-shield
Description
Hygienic design
Icon
icon-diamond
Description
Wide measuring range possible
Icon
icon-anschluesse
Description
Hygienic process connections
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=6221
Measuring range
1 μS/cm to 600 mS/cm
Electrode material
Stainless steel (1.4435)
Process connection
JUMO PEKA (hygienic process connection) process connection adapter available: VARIVENT® DN 40 to 125, stainless steel 1.4435 (316L); clamp DN 25/32/40 and DN 50, stainless steel 1.4435 (316L); aseptic DN 40 and DN 50, stainless steel 1.4435 (316L); aseptic NKS DN 40, stainless steel 1.4435 (316L)
Process pressure
16 bar at 25 °C; 6 bar at -10 °C and +140 °C
Operating temperature
-10 to +120 °C, temporarily 140 °C (sterilization)
Cell constant
K = 0.3 to 0.4
Features
Very wide measuring range; CIP and SIP-capability; hygienic design; includes quality certificate
Areas of application
Rinsing processes in the food and beverage industry, pharmaceuticals and biotechnology sector; CIP and SIP applications
