Produkt Details
SKU
406010
Name

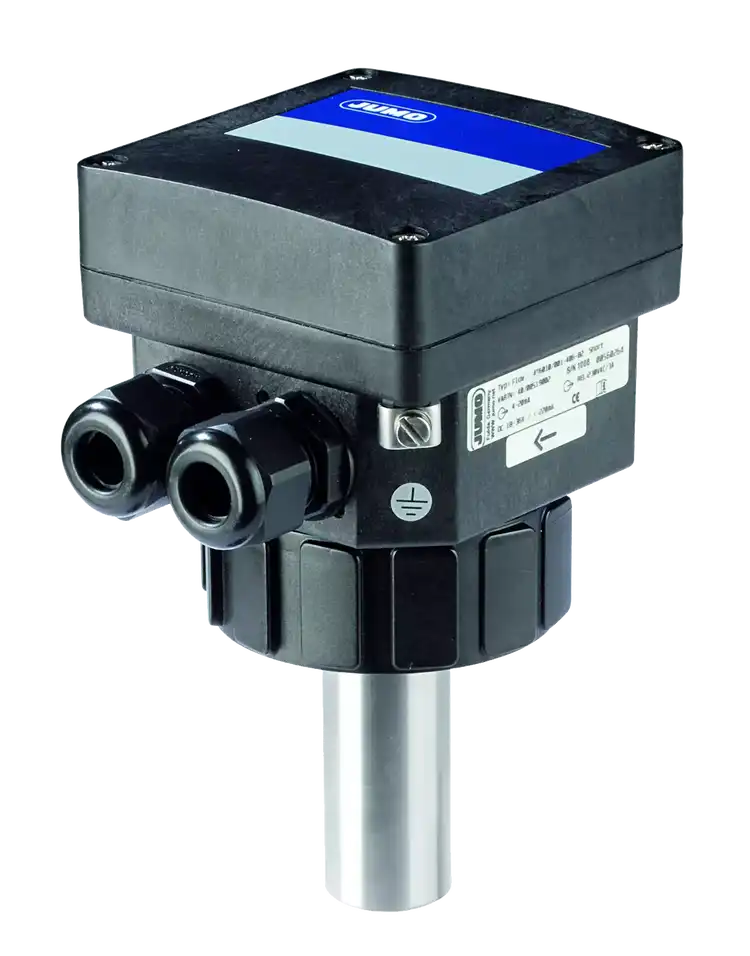

JUMO flowTRANS MAG I01
Description
The transmitter can be used in liquids with a conductivity as of 20 μS/cm. Standardized fittings ensure simple insertion of the transmitter into pipes from DN 15 to DN 400. The output signal is 4 to 20 mA and the pulse frequency signal is 0 to 240 Hz.
Short Description
Plug-in magnetic-inductive flow transmitter
Availability
In Stock
Images
State
LIVE
Variants
Sensor version
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NjgzOSIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiTWVhc3VyaW5nIHJhbmdlIiwidmFsdWUiOiIwLjIgdG8gMTAgbS9zIiwic29ydE5vIjowfSx7Im5hbWUiOiJOb21pbmFsIHByZXNzdXJlIiwidmFsdWUiOiJQTiAxNiIsInNvcnRObyI6MX0seyJuYW1lIjoiTWVkaXVtIHRlbXBlcmF0dXJlIiwidmFsdWUiOiJNYXguIDE1MCDCsEMiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6Ik5vbWluYWwgcGlwZSB3aWR0aCIsInZhbHVlIjoiRE4gMTUgdG8gRE4gNDAwIiwic29ydE5vIjozfSx7Im5hbWUiOiJPdXRwdXRzIiwidmFsdWUiOiI0IHRvIDIwIG1BOyBwdWxzZSBmcmVxdWVuY3k7IHN3aXRjaGluZyBvdXRwdXQgKGNoYW5nZW92ZXIgY29udGFjdCByZWxheSkiLCJzb3J0Tm8iOjR9LHsibmFtZSI6Ik1lYXN1cmluZyBhY2N1cmFjeSIsInZhbHVlIjoi4omkIMKxwqAzLjXCoCUgb2YgdGhlIG1lYXN1cmVkIHZhbHVlIChzdGFuZGFyZCBjYWxpYnJhdGlvbiBmYWN0b3IpOyDiiaQgwrEgMC41ICUgb2YgdGhlIG1lYXN1cmVkIHZhbHVlIChUZWFjaC1JbikiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IlBhcnRzIGluIGNvbnRhY3Qgd2l0aCBtZWRpdW0iLCJ2YWx1ZSI6IlN0YWlubGVzcyBzdGVlbCAzMTZMICgxLjQ0MDQpOyBGS00gb3IgRVBETTsgUEVFSyIsInNvcnRObyI6Nn0seyJuYW1lIjoiUHJvdGVjdGlvbiB0eXBlIiwidmFsdWUiOiJJUDY1Iiwic29ydE5vIjo3fSx7Im5hbWUiOiJNZWRpdW0iLCJ2YWx1ZSI6IkNvbmR1Y3RpdmUgbGlxdWlkcyBhcyBvZiAyMCDOvFMvY20iLCJzb3J0Tm8iOjh9LHsibmFtZSI6IlZvbHRhZ2Ugc3VwcGx5IiwidmFsdWUiOiJEQyAxOCB0byAzNiBWIiwic29ydE5vIjo5fSx7Im5hbWUiOiJBY2Nlc3NvcmllcyIsInZhbHVlIjoiVC1maXR0aW5ncyBtYWRlIG9mIFBWQyBvciBzdGFpbmxlc3Mgc3RlZWw7IFBFIG9yIHN0YWlubGVzcyBzdGVlbCB3ZWxkZWQgc29ja2V0OyBQUCBjb25uZWN0aW9uIGNsYW1wcyAodHlwZSA0MDYwOTApIiwic29ydE5vIjoxMH1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24td3JlbmNoIiwiZGVzY3JpcHRpb24iOiJNaW5pbWFsIGluc3RhbGxhdGlvbiBlZmZvcnQiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXNpZ24tb3V0IiwiZGVzY3JpcHRpb24iOiJDb25maWd1cmFibGUgc3dpdGNoaW5nIG91dHB1dHMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLXN5bmMiLCJkZXNjcmlwdGlvbiI6IlN0YW5kYXJkaXplZCBmaXR0aW5ncyIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiJQcmVzc3VyZXMgdXAgdG8gUE4gMTYiLCJzb3J0Tm8iOjB9LHsidGV4dCI6IlN0YWlubGVzcyBzdGVlbCBzZW5zb3IiLCJzb3J0Tm8iOjF9LHsidGV4dCI6IlRlbXBlcmF0dXJlcyB1cCB0byAxNTDCoMKwQyIsInNvcnRObyI6Mn1dfQ==
title
Icon
icon-wrench
Description
Minimal installation effort
Icon
icon-sign-out
Description
Configurable switching outputs
Icon
icon-sync
Description
Standardized fittings
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=6839
Measuring range
0.2 to 10 m/s
Nominal pressure
PN 16
Medium temperature
Max. 150 °C
Nominal pipe width
DN 15 to DN 400
Outputs
4 to 20 mA; pulse frequency; switching output (changeover contact relay)
Measuring accuracy
≤ ± 3.5 % of the measured value (standard calibration factor); ≤ ± 0.5 % of the measured value (Teach-In)
Parts in contact with medium
Stainless steel 316L (1.4404); FKM or EPDM; PEEK
Protection type
IP65
Medium
Conductive liquids as of 20 μS/cm
Voltage supply
DC 18 to 36 V
Accessories
T-fittings made of PVC or stainless steel; PE or stainless steel welded socket; PP connection clamps (type 406090)
