Produkt Details
SKU
409602
Name

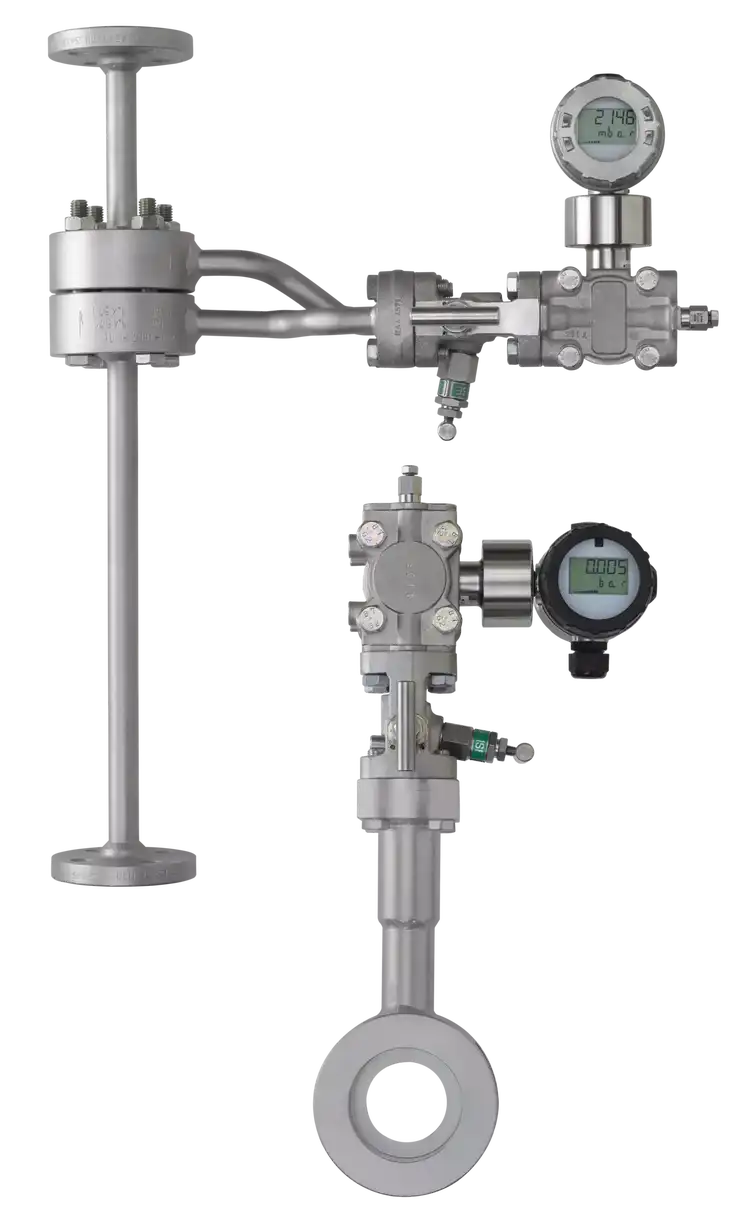

JUMO flowTRANS DP R01/R02
Description
The flow measurement based on the differential pressure is universal and can be used in liquids, gases, and steam. The JUMO flowTRANS DP R primary element can be used within a wide range of nominal widths, temperatures, and pressures.
Short Description
Flow measurement with orifice plate
Price
€0.00
Availability
In Stock
Images
State
LIVE
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9NDMwMTExIiwiYmVuZWZpdHMiOltdLCJiZW5lZml0c0ludHJvZHVjdGlvbiI6IiIsInRlY2huaWNhbERhdGEiOlt7Im5hbWUiOiJUeXBlIG9mIGluc3RhbGxhdGlvbiIsInZhbHVlIjoiSW5saW5lIiwic29ydE5vIjowfSx7Im5hbWUiOiJQcm9kdWN0IHZhcmlhbnQiLCJ2YWx1ZSI6Ik9yaWZpY2UgcGxhdGUiLCJzb3J0Tm8iOjF9LHsibmFtZSI6Ik5vbWluYWwgd2lkdGhzIiwidmFsdWUiOiJETiAxMCB0byBETiAxMDAwIiwic29ydE5vIjoyfSx7Im5hbWUiOiJOb21pbmFsIHByZXNzdXJlIiwidmFsdWUiOiJQTiA0MDAiLCJzb3J0Tm8iOjN9LHsibmFtZSI6Ik1lZGl1bSB0ZW1wZXJhdHVyZSIsInZhbHVlIjoiTWF4LiA0NTDCoMKwQyIsInNvcnRObyI6NH0seyJuYW1lIjoiTWVhc3VyaW5nIGFjY3VyYWN5IiwidmFsdWUiOiIwLjUgJSBvZiB0aGUgbWVhc3VyZWQgdmFsdWUgKHVuY2VydGFpbnR5IG9mIHRoZSBwcmltYXJ5IGVsZW1lbnQpIiwic29ydE5vIjo1fSx7Im5hbWUiOiJNYXRlcmlhbHMiLCJ2YWx1ZSI6IkFJU0kgMzE2TCAoMS40NDA0KSIsInNvcnRObyI6Nn0seyJuYW1lIjoiVHJhbnNtaXR0ZXIgb3V0cHV0IiwidmFsdWUiOiI0IHRvIDIwwqBtQSwgSEFSVMKuIiwic29ydE5vIjo3fSx7Im5hbWUiOiJQcm9jZXNzIGNvbm5lY3Rpb24iLCJ2YWx1ZSI6IkZsYW5nZSBhY2NvcmRpbmcgdG8gRElOIG9yIEFTTUUiLCJzb3J0Tm8iOjh9LHsibmFtZSI6IlN1aXRhYmxlIHByZXNzdXJlIHRyYW5zbWl0dGVycyIsInZhbHVlIjoiVHlwZSA0MDQzODIgb3IgNDAzMDIyIiwic29ydE5vIjo5fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1jaGVjayIsImRlc2NyaXB0aW9uIjoiU3RhbmRhcmRpemVkIG1lYXN1cmVtZW50IG1ldGhvZCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2siLCJkZXNjcmlwdGlvbiI6IkhpZ2ggbWVhc3VyaW5nIGFjY3VyYWN5IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1kYW5nZXIiLCJkZXNjcmlwdGlvbiI6IkZvciBleHRyZW1lIHByZXNzdXJlcyBhbmQgdGVtcGVyYXR1cmVzIiwidHlwZSI6IklDT04ifV0sImRpZmZlcmVudGlhdG9ycyI6W3sidGV4dCI6IkF2YWlsYWJsZSBhcyBhIGNvbXBsZXRlIG1ldGVyIHJ1biIsInNvcnRObyI6MH0seyJ0ZXh0IjoiUmVwbGFjZWFibGUgbWVhc3VyaW5nIGluc2VydCBwb3NzaWJsZSIsInNvcnRObyI6MX0seyJ0ZXh0IjoiUHJvdmVuIG1lYXN1cmluZyBwcmluY2lwbGUiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-check
Description
Standardized measurement method
Icon
icon-check
Description
High measuring accuracy
Icon
icon-danger
Description
For extreme pressures and temperatures
title
Technical data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=430111
Type of installation
Inline
Product variant
Orifice plate
Nominal widths
DN 10 to DN 1000
Nominal pressure
PN 400
Medium temperature
Max. 450 °C
Measuring accuracy
0.5 % of the measured value (uncertainty of the primary element)
Materials
AISI 316L (1.4404)
Transmitter output
4 to 20 mA, HART®
Process connection
Flange according to DIN or ASME
Suitable pressure transmitters
Type 404382 or 403022
