Produkt Details
SKU
406062
Name

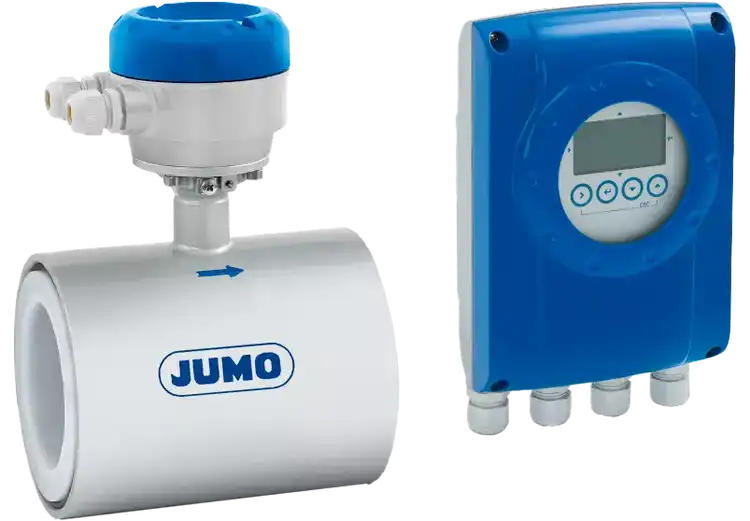

OPTIFLUX 1000
Description
전자기 유량계 OPTIFLUX 1000은 공칭 폭(nominal widths)이 DN 10에서 DN 150인 파이프의 전도성 액체를 측정하는 데 사용할 수 있습니다. 이 장치는 표준 산업 응용 분야용으로 설계되었으며 다양한 특성을 지닌 액체 매체에서 사용할 수 있습니다.
Short Description
전자기 유량계
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTExMzc2MyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoi7Lih7KCVIOybkOumrCIsInZhbHVlIjoiTWFnbmV0aWMtaW5kdWN0aXZlIiwic29ydE5vIjowfSx7Im5hbWUiOiLqs7Xsua0g7Y+tKE5vbWluYWwgd2lkdGhzKSIsInZhbHVlIjoiRE4gMTAgdG8gRE4gMTUwIiwic29ydE5vIjoxfSx7Im5hbWUiOiLsoJXtmZXrj4QiLCJ2YWx1ZSI6IjAuNSAlIG9mIHRoZSBtZWFzdXJlZCB2YWx1ZSIsInNvcnRObyI6Mn0seyJuYW1lIjoi66ek7LK0IOyYqOuPhCIsInZhbHVlIjoiVXAgdG8gMTIwIMKwQyIsInNvcnRObyI6M30seyJuYW1lIjoi7J6R64+ZIOyVleugpSIsInZhbHVlIjoiVXAgdG8gMTYgYmFyIiwic29ydE5vIjo0fSx7Im5hbWUiOiLtlITroZzshLjsiqQg7Jew6rKwIiwidmFsdWUiOiJDb25uZWN0aW9uIGZsYW5nZSIsInNvcnRObyI6NX0seyJuYW1lIjoi7Lm07Jq07YSwIO2UjOuenOyngCIsInZhbHVlIjoiUE4gNDAgKEROIDEwIHRvIEROIDgwKSwgUE4gMTYgKEROIDEwMCB0byBETiAxNTApIiwic29ydE5vIjo2fSx7Im5hbWUiOiLrgrTrsr0iLCJ2YWx1ZSI6IlBGQSIsInNvcnRObyI6N30seyJuYW1lIjoi7KO867OAIOyYqOuPhCIsInZhbHVlIjoiVXAgdG8gNjUgwrBDIiwic29ydE5vIjo4fSx7Im5hbWUiOiLrs7TtmLgg7YOA7J6FIiwidmFsdWUiOiJJUDY2L0lQNjciLCJzb3J0Tm8iOjl9LHsibmFtZSI6Iuy2nOugpSIsInZhbHVlIjoiQW5hbG9nIG91dHB1dCAoNCB0byAyMCBtQSkgd2l0aCBIQVJUIGFuZCBwdWxzZS9mcmVxdWVuY3kvc3RhdHVzIiwic29ydE5vIjoxMH0seyJuYW1lIjoi65SU7Iqk7ZSM66CI7J20IiwidmFsdWUiOiJMQ0QgZGlzcGxheSwgd2hpdGUgYmFja2xpZ2h0IGZvciBkaXNwbGF5aW5nIHVwIHRvIDMgbWVhc3VyZWQgdmFsdWVzIiwic29ydE5vIjoxMX1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tcmVkLWNoZWNrIiwiZGVzY3JpcHRpb24iOiLqs7XqsIQg7KCI7JW97ZiVIOyEpOy5mCIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24td3JhbmNoIiwiZGVzY3JpcHRpb24iOiLrp4jrqqgg67CPIOycoOyngOuztOyImOqwgCDtlYTsmpQg7JeG7J2MIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1tYXhpbWl6ZS1hbHQiLCJkZXNjcmlwdGlvbiI6IuuEk+ydgCDrj5nsoIEg7Lih7KCVIOuylOychCIsInR5cGUiOiJJQ09OIn1dLCJkaWZmZXJlbnRpYXRvcnMiOlt7InRleHQiOiLstZzrjIAuIEROIDE1MCIsInNvcnRObyI6MH0seyJ0ZXh0Ijoi7LWc64yALiBQTiAxNiIsInNvcnRObyI6MX0seyJ0ZXh0Ijoi7KCE64+E7ISxIOyVoeyytCDsoIHsmqkiLCJzb3J0Tm8iOjJ9XX0=
title
Icon
icon-red-check
Description
공간 절약형 설치
Icon
icon-wranch
Description
마모 및 유지보수가 필요 없음
Icon
icon-maximize-alt
Description
넓은 동적 측정 범위
title
기술 데이터
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1113763
측정 원리
Magnetic-inductive
공칭 폭(Nominal widths)
DN 10 to DN 150
정확도
0.5 % of the measured value
매체 온도
Up to 120 °C
작동 압력
Up to 16 bar
프로세스 연결
Connection flange
카운터 플랜지
PN 40 (DN 10 to DN 80), PN 16 (DN 100 to DN 150)
내벽
PFA
주변 온도
Up to 65 °C
보호 타입
IP66/IP67
출력
Analog output (4 to 20 mA) with HART and pulse/frequency/status
디스플레이
LCD display, white backlight for displaying up to 3 measured values
