Produkt Details
SKU
705163
Name

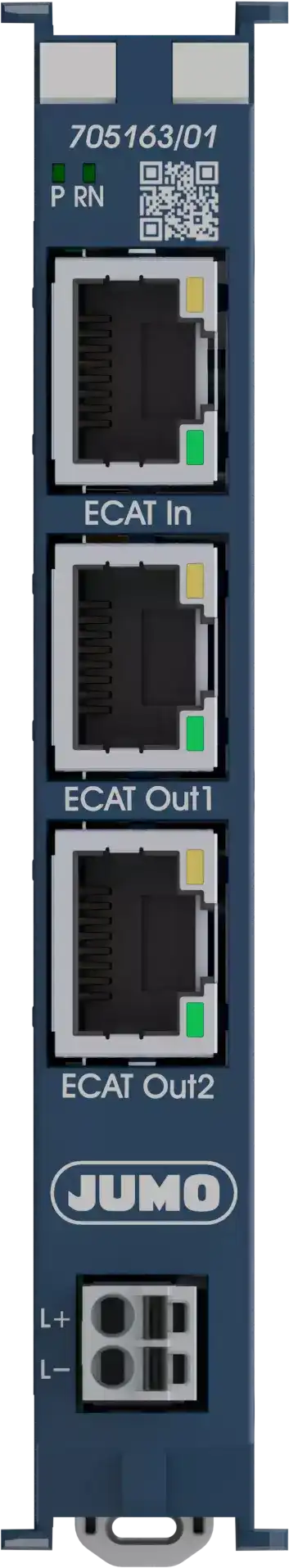

JUMO I/O system communication module 3-channel
Description
As part of the JUMO I/O system, the module provides operating voltage and system bus for the use of the I/O system with JUMO variTRON 300 and JUMO variTRON 500 touch. The I/O modules are simply plugged in at the side. It can also be used with other PLCs if they support the JUMO system bus. The system bus extension allows it to be used for a decentralized module configuration with distances of up to 100 m.
Short Description
Module for JUMO variTRON automation system
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbXSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM3ODA0NyIsImJlbmVmaXRzIjpbXSwiYmVuZWZpdHNJbnRyb2R1Y3Rpb24iOiIiLCJ0ZWNobmljYWxEYXRhIjpbeyJuYW1lIjoiSW50ZXJmYWNlcyIsInZhbHVlIjoiMyBSSjQ1IG9uIHRoZSBmcm9udDogc3lzdGVtIGJ1cyAoMSBFQ0FUIEluLCAyIEVDQVQgT3V0KSIsInNvcnRObyI6MH0seyJuYW1lIjoiQ29ubmVjdGlvbiIsInZhbHVlIjoiVGVybWluYWwgc3RyaXBzIHdpdGggUFVTSCBJTiB0ZWNobm9sb2d5IGZvciBleHRlcm5hbCB2b2x0YWdlIHN1cHBseSBvZiB0aGUgSS9PIG1vZHVsZXMsIG9uIHRoZSBmcm9udCIsInNvcnRObyI6MX0seyJuYW1lIjoiU3BlY2lhbCBmZWF0dXJlcyIsInZhbHVlIjoiT3BlcmF0aW9uIG9mIHRoZSBKVU1PIEkvTyBzeXN0ZW0gd2l0aCBKVU1PIHZhcmlUUk9OIDMwMCBhbmQgSlVNTyB2YXJpVFJPTiA1MDAgdG91Y2ggYXMgd2VsbCBhcyBvdGhlciBQTENzICh2aWEgSlVNTyBzeXN0ZW0gYnVzKSwgdXNlIG9mIGVhcmxpZXIgSlVNTyBJL08gbW9kdWxlcyAoNzA1MHh4KSBwb3NzaWJsZSwgZGVjZW50cmFsaXplZCBhcnJhbmdlbWVudCBvZiB0aGUgYXV0b21hdGlvbiBzeXN0ZW0gbW9kdWxlcyB3aXRoIHVwIHRvIDEwMMKgbSBkaXN0YW5jZSBiZXR3ZWVuIGNvbW11bmljYXRpb24gbW9kdWxlcywgYWRkcmVzc2luZyB2aWEgcm90YXJ5IGNvZGluZyBzd2l0Y2ggZm9yIHNwZWNpYWwgYXBwbGljYXRpb25zLCBnYWx2YW5pYyBpc29sYXRpb24gb2YgdGhlIGZyb250LXBhbmVsIGludGVyZmFjZXMsIHN1cHBseSBvZiBvcGVyYXRpbmcgdm9sdGFnZSwgcXVpY2sgd2lyaW5nIG9mIG9wZXJhdGluZyB2b2x0YWdlIGFuZCBzeXN0ZW0gYnVzIGJ5IHNpbXBseSBwbHVnZ2luZyB0aGUgbW9kdWxlcyB0b2dldGhlciwgMiBMRURzIGZvciBkaXNwbGF5aW5nIHRoZSBtb2R1bGUgc3RhdHVzIChwb3dlci9ydW4pLCBpbmNyZWFzZWQgdmlicmF0aW9uIGFuZCBzaG9jayByZXNpc3RhbmNlIHRocm91Z2ggb3B0aW9uYWwgY29ubmVjdGlvbiByYWlscyIsInNvcnRObyI6Mn0seyJuYW1lIjoiVm9sdGFnZSBzdXBwbHkiLCJ2YWx1ZSI6IkRDwqAyNMKgViArMjUvLTIwwqAlIiwic29ydE5vIjozfSx7Im5hbWUiOiJIb3VzaW5nIiwidmFsdWUiOiJQbGFzdGljIGhvdXNpbmcgZm9yIERJTi1yYWlsIG1vdW50aW5nIGluIHRoZSBjb250cm9sIGNhYmluZXQiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IlByb3RlY3Rpb24gdHlwZSIsInZhbHVlIjoiSVAyMCIsInNvcnRObyI6NX0seyJuYW1lIjoiQXBwcm92YWxzIiwidmFsdWUiOiJETlYsIFVMIiwic29ydE5vIjo2fSx7Im5hbWUiOiJBbWJpZW50IHRlbXBlcmF0dXJlIHJhbmdlIiwidmFsdWUiOiItMjAgdG8gKzU1wqDCsEMiLCJzb3J0Tm8iOjd9LHsibmFtZSI6IkRpbWVuc2lvbnMgKFfigK/Dl+KAr0jigK/Dl+KAr0QpIiwidmFsdWUiOiIxNSDDlyAxMDYuNyDDlyAxMDHCoG1tICh3aXRob3V0IGNvbm5lY3Rpb24gZWxlbWVudHMpIiwic29ydE5vIjo4fV0sImhpZ2hsaWdodHMiOlt7Imljb25UZXh0IjoiaWNvbi1mbG93LXRyZWUiLCJkZXNjcmlwdGlvbiI6IkRlY2VudHJhbGl6ZWQgbW9kdWxlIGFzc2lnbm1lbnQgc3VwcG9ydGVkIiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1zdGFja3MiLCJkZXNjcmlwdGlvbiI6IlNpbXBsZSBhbGlnbm1lbnQgb2YgSS9PIG1vZHVsZXMiLCJ0eXBlIjoiSUNPTiJ9LHsiaWNvblRleHQiOiJpY29uLWFuc2NobHVlc3NlIiwiZGVzY3JpcHRpb24iOiJTeXN0ZW0gYnVzIGV4cGFuc2lvbiB2aWEgMyBSSjQ1IHNvY2tldHMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiMyBzeXN0ZW0gYnVzIGNvbm5lY3Rpb25zIiwic29ydE5vIjowfSx7InRleHQiOiJHYWx2YW5pY2FsbHkgaXNvbGF0ZWQgaW50ZXJmYWNlcyIsInNvcnRObyI6MX0seyJ0ZXh0IjoiVm9sdGFnZSBzdXBwbHkgb3V0cHV0Iiwic29ydE5vIjoyfV19
title
Icon
icon-flow-tree
Description
Decentralized module assignment supported
Icon
icon-stacks
Description
Simple alignment of I/O modules
Icon
icon-anschluesse
Description
System bus expansion via 3 RJ45 sockets
title
기술 데이터
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1378047
Interfaces
3 RJ45 on the front: system bus (1 ECAT In, 2 ECAT Out)
Connection
Terminal strips with PUSH IN technology for external voltage supply of the I/O modules, on the front
Special features
Operation of the JUMO I/O system with JUMO variTRON 300 and JUMO variTRON 500 touch as well as other PLCs (via JUMO system bus), use of earlier JUMO I/O modules (7050xx) possible, decentralized arrangement of the automation system modules with up to 100 m distance between communication modules, addressing via rotary coding switch for special applications, galvanic isolation of the front-panel interfaces, supply of operating voltage, quick wiring of operating voltage and system bus by simply plugging the modules together, 2 LEDs for displaying the module status (power/run), increased vibration and shock resistance through optional connection rails
Voltage supply
DC 24 V +25/-20 %
Housing
Plastic housing for DIN-rail mounting in the control cabinet
Protection type
IP20
Approvals
DNV, UL
Ambient temperature range
-20 to +55 °C
Dimensions (W × H × D)
15 × 106.7 × 101 mm (without connection elements)
