Produkt Details
SKU
709082
Name

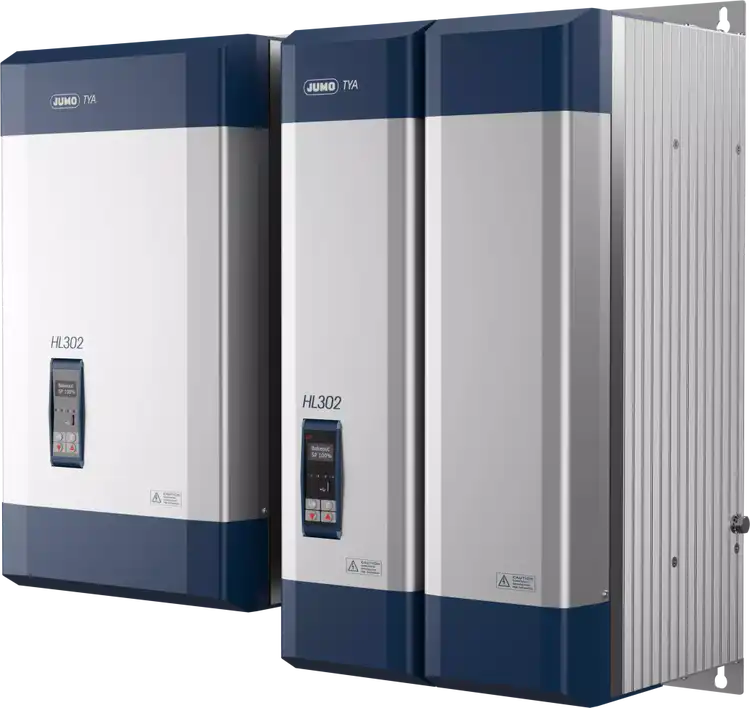

JUMO TYA HL302
Description
The JUMO TYA HL302 is characterized by an area of application from 300 to 800 A, a compact design, and efficient top-bottom wiring. All these factors make it a valuable tool in power control processes. The integrated data logging function and an oscilloscope for function control increase process reliability and ensure smooth operations in day-to-day business. In addition, extensive setup functions simplify configuration and startup.
Short Description
Three-phase thyristor controller in economy circuit
Price
€0.00
Availability
In Stock
Images
State
NEW
cf-data
eyJwcm9kdWN0VmlkZW9zIjpbeyJzcmMiOiJodHRwczovL2RvMnAxcTliOTJzZ3AuY2xvdWRmcm9udC5uZXQvYXNzZXQvMzUzNjA0ODg0MzE5L3ZpZGVvX2NrMTI5a2Ezamw1ZnRkNnJtNW1odGIwODQ2P2NvbnRlbnQtZGlzcG9zaXRpb249aW5saW5lIiwiYWx0IjoiNzA5MDgxLTgzX1RZQV9ITF9TZXJpZXNfVGVhc2VyX0RFLm1wNCIsInRodW1ibmFpbFVybCI6Imh0dHBzOi8vZG8ycDFxOWI5MnNncC5jbG91ZGZyb250Lm5ldC9yZW5kaXRpb24vMzUzNjA0ODg0MzE5L3ZpZGVvX2NrMTI5a2Ezamw1ZnRkNnJtNW1odGIwODQ2Ly1GV0VCUCIsInNvcnQiOjB9XSwiZGF0YVNoZWV0VXJsIjoiaHR0cHM6Ly93d3cuanVtby5uZXQvYXR0YWNobWVudHMvSlVNTy9hdHRhY2htZW50ZG93bmxvYWQ/aWQ9MTM5NzQ1MCIsImJlbmVmaXRzIjpbeyJ0ZXh0IjoiSGlnaCBmbGV4aWJpbGl0eSBhcyBpdCBjYW4gYmUgdXNlZCBmb3IgYWxsIGxvYWQgdHlwZXMgYW5kIGEgd2lkZSByYW5nZSBvZiBmaWVsZGJ1cyBpbnRlcmZhY2VzIiwic29ydE5vIjowfSx7InRleHQiOiJGZXdlciB2ZXJzaW9ucyBpbiBzdG9jayB0aGFua3MgdG8gaW5jcmVhc2VkIGZsZXhpYmlsaXR5Iiwic29ydE5vIjoxfSx7InRleHQiOiJFbmVyZ3kgY29uc2VydmF0aW9uIHRocm91Z2ggb3B0aW9uYWwgbG9hZCBtYW5hZ2VtZW50Iiwic29ydE5vIjoyfSx7InRleHQiOiJQcm9jZXNzIHJlbGlhYmlsaXR5IGFuZCBvcHRpbWl6YXRpb24gdGhyb3VnaCBkYXRhIGxvZ2dpbmciLCJzb3J0Tm8iOjN9LHsidGV4dCI6IlJlZHVjZWQgc3BhY2UgcmVxdWlyZW1lbnQgaW4gdGhlIGNvbnRyb2wgY2FiaW5ldCBkdWUgdG8gY29tcGFjdCBzaXplIiwic29ydE5vIjo0fV0sImJlbmVmaXRzSW50cm9kdWN0aW9uIjoiIiwidGVjaG5pY2FsRGF0YSI6W3sibmFtZSI6IkxvYWQgY3VycmVudHMiLCJ2YWx1ZSI6IjMwMCB0byA4MDDCoEEiLCJzb3J0Tm8iOjB9LHsibmFtZSI6IkxvYWQgdm9sdGFnZSIsInZhbHVlIjoiMjMwIHRvIDY5MMKgViIsInNvcnRObyI6MX0seyJuYW1lIjoiQ29udHJvbCB0eXBlcyIsInZhbHVlIjoiVSwgSSwgUCwgVcKyLCBJwrIiLCJzb3J0Tm8iOjJ9LHsibmFtZSI6IkFwcHJvdmFscyIsInZhbHVlIjoiY1VMIDUwOCIsInNvcnRObyI6M30seyJuYW1lIjoiSW50ZXJmYWNlcyIsInZhbHVlIjoiVVNCIChTZXR1cCksIE1vZGJ1cyBSVFUsIG9wdGlvbmFsOiBQUk9GSU5FVCwgRXRoZXJOZXQvSVAsIE1vZGJ1cyBUQ1AsIEV0aGVyQ0FULCBhbm90aGVyIE1vZGJ1cyBSVFUiLCJzb3J0Tm8iOjR9LHsibmFtZSI6IklucHV0cyIsInZhbHVlIjoiMiBkaWdpdGFsIGlucHV0cywgMiBhbmFsb2cgaW5wdXRzICgwIHRvIDEwwqBWLCAwIHRvIDIwwqBtQSwgcG90ZW50aW9tZXRlcikiLCJzb3J0Tm8iOjV9LHsibmFtZSI6IkJlc29uZGVyaGVpdGVuIiwidmFsdWUiOiJDb21wYWN0IHNpemU7IFRvcC1Cb3R0b20gd2lyaW5nOyBTZXR1cCBwcm9ncmFtIHdpdGggd2l6YXJkLCBvc2NpbGxvc2NvcGUsIHJlbW90ZSBjb250cm9sIG9wdGlvbjsgcHJhY3RpY2FsIG9wZXJhdGluZyBwYW5lbDsgTG9hZCBtYW5hZ2VtZW50IHVwIHRvIDI0IHpvbmVzIChvcHRpb25hbCk7IGRhdGEgbG9nZ2luZyB3aXRoIFNEIG1lbW9yeSIsInNvcnRObyI6Nn1dLCJoaWdobGlnaHRzIjpbeyJpY29uVGV4dCI6Imljb24tbW9uaXRvciIsImRlc2NyaXB0aW9uIjoiT3B0aW9uYWwgbG9hZCBtYW5hZ2VtZW50IiwidHlwZSI6IklDT04ifSx7Imljb25UZXh0IjoiaWNvbi1mbG93LXRyZWUiLCJkZXNjcmlwdGlvbiI6IlZlcnNhdGlsZSBjb21tdW5pY2F0aW9uIHByb3RvY29scyIsInR5cGUiOiJJQ09OIn0seyJpY29uVGV4dCI6Imljb24tY2hlY2stYWxsIiwiZGVzY3JpcHRpb24iOiJTdWl0YWJsZSBmb3IgYWxsIGxvYWQgdHlwZXMiLCJ0eXBlIjoiSUNPTiJ9XSwiZGlmZmVyZW50aWF0b3JzIjpbeyJ0ZXh0IjoiTG9hZCBjdXJyZW50czogMzAwIHRvIDgwMMKgQSIsInNvcnRObyI6MH0seyJ0ZXh0IjoiQ29tcGFjdCBzaXplIiwic29ydE5vIjoxfSx7InRleHQiOiJFeHRlbnNpdmUgc2V0dXAgZnVuY3Rpb25zIiwic29ydE5vIjoyfV19
title
Icon
icon-monitor
Description
Optional load management
Icon
icon-flow-tree
Description
Versatile communication protocols
Icon
icon-check-all
Description
Suitable for all load types
title
Tekniska data
datasheet
https://www.jumo.net/attachments/JUMO/attachmentdownload?id=1397450
Load currents
300 to 800 A
Load voltage
230 to 690 V
Control types
U, I, P, U², I²
Approvals
cUL 508
Interfaces
USB (Setup), Modbus RTU, optional: PROFINET, EtherNet/IP, Modbus TCP, EtherCAT, another Modbus RTU
Inputs
2 digital inputs, 2 analog inputs (0 to 10 V, 0 to 20 mA, potentiometer)
Besonderheiten
Compact size; Top-Bottom wiring; Setup program with wizard, oscilloscope, remote control option; practical operating panel; Load management up to 24 zones (optional); data logging with SD memory
title
Kundfördelar i korthet
benefit
High flexibility as it can be used for all load types and a wide range of fieldbus interfaces
benefit
Fewer versions in stock thanks to increased flexibility
benefit
Energy conservation through optional load management
benefit
Process reliability and optimization through data logging
benefit
Reduced space requirement in the control cabinet due to compact size
